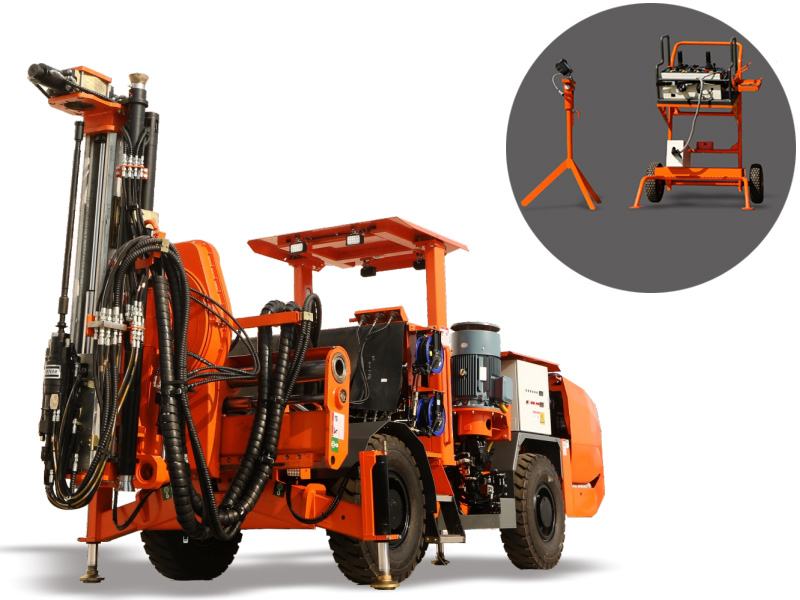

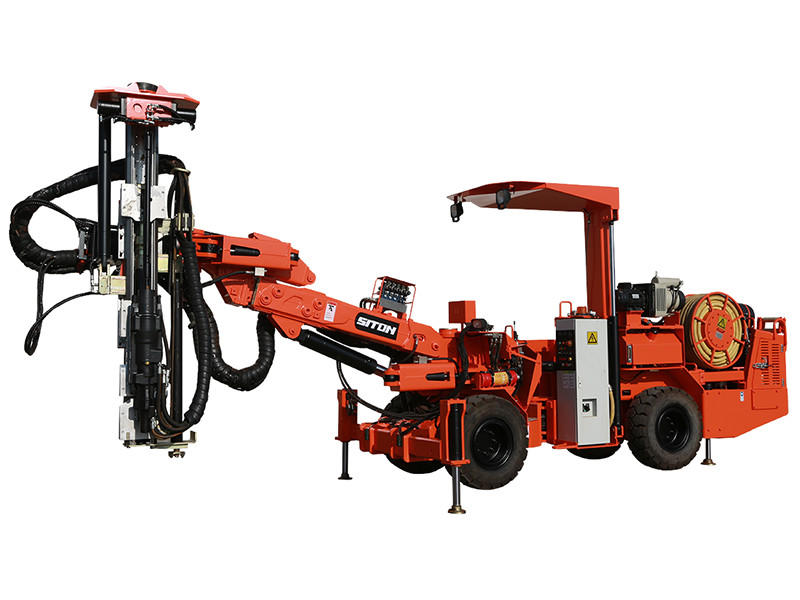

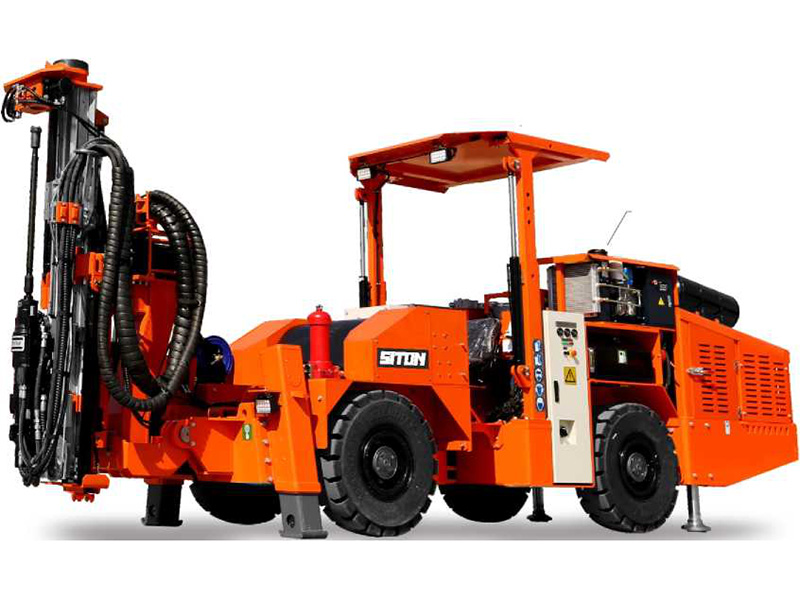

Introduction of Mining Production Drilling Rigs:

Production drilling rig adapted for small- to medium-sized drifts. Equipped with tophammer rock drill for the hole range 32 - 89 (102) mm and a versatile positioning unit to match various methods in production drilling.

Introduction of Parts:

Control System:

The Electrical Direct System(EDS) for positioning and drilling.

Advanced wireless computer control system.

Anti-jamming system.

Safety car protection alarm system.

Carrier:

Mine-adapted carrier for small- to medium-sized drifts with articulated steering and four-wheel drive.

The power system is from Cummings, with Dana wet bridge, the dual system for braking.

Compact body structure design for small and medium sized tunnel.

Cable/Water pipe reel:

The system is good for saving labor and improving security.

Positioning unit:

Mechanized rod handling system.

Tilt, rotation, pendulum arm and slide table.

Accurate and smooth movements.

Mine-adapted, sturdy components.

Central lubrication for positioning/drilling system.

Angle Reading Instrument, ARI 6C, with/without hole depth measurement.

Functional Parameters of Mining Production Drilling Rigs:

	Items	Model:XTDL-1	Model: XTDL-3	Model:XTDL-4
Machine	Dimensions (L×W×H) mm	8200×1425×2324/3024	9200X1990×3280	9905×1990×3580
	Working section (W×H) m	5600×4390	7440×5220	5940×5020
	Drilling diameter mm	32-102	64-89	64-89
	Drilling depth m	25	40	40
	Rod handing system P	Without	20+1	20+1
	Drilling speed m/min	0. 8-2	0. 8-2	0. 8-2
	Main motor power KW	55	65	65
	Hydraulic oil tank volume L	120	160	160
	Total weight kg	9500	17000	16500
	Tramming speed Km/h	6.5	>10	>10
	Feed parallel positioning mm	1500	3000	1500
	Gradient %	35	25	25
Drifter	Model	HC50	HC109	HC109
	Rod mm	1220/1525/1830	1220/1525/1830	1220/1525/1830
	Shank adapter	R38M	R38/T38/T45	R38/T38/T45
	Power KW	13	>18.9	>18.9
	Max. torque Nm	415	780	780
	Water consumption L/min	25	30-50	30-50
	Air consumption m3/min	5	10	10
	Weight Kg	102	142	142
Carrier	Steering (°)	40	40	40
	Engine	Cummins B3. 3-C60	Deutz D914L04	Deutz D914L04
	Emission	Tier 3	Tier3/stage/. 111A	Tier3/stage/. 111A
	Max. rated power KW	45	58	58
	Max. output torque Nm	214 (1600rpm)	214 (1600rpm)	214 (1600rpm)
	Fuel tank volume L	45	60	60
	Rear axle (。)	6	8	8
	Braking	Dual control Wet brake	Dual control/Parking brake	Dual control/Parking brake
	Cooling model	Water cooling	Water cooling	Water cooling
Air system	Flow m3/min	0. 35	0. 35	0. 35
Air system	Working pressure Mpa	0. 2-0. 8	0. 2-0. 8	0. 2-0. 8
Water system	Flow L/min	35	35	35
Water system	Working pressure Mpa	0. 8-1. 2	0. 8-1. 2	0. 8-1. 2
Electrical system	Total motor power KW	55	65	65
	Voltage V	380/660/1140	380/660/1140	380/660/1140
	Rotary speed r/min	1470	1470	1470
	Travelling lights W	4x55	6x55	6x55
	Working lights W	2x55	2x500	2x500
	Cable reel m	70	70	70
	Water pipe reel m	Without	70	70

Note: SITON reserves the right to change this specification without further notice.
