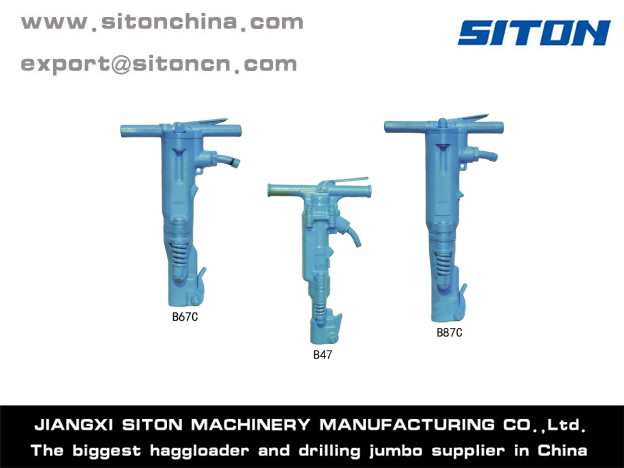

Introduction of Pneumatic Crusher
Pneumatic crusher is the breaking tool which takes compressed air as power with the features of light weight, convenience, long serving life, high performance, easy operation, high efficiency, etc. It can quickly crush concrete, rock, asphalt or any other hard object, and is regarded as the optimal breaking tool in mining, bridge, road, water, and electric tube works.
No. |
Item |
Units |
B47 |
B67C |
B87C |
1 |
Length |
mm |
550 |
615 |
686 |
2 |
Weight |
kg |
21.5 |
30 |
39 |
3 |
Working Pressure |
MPa |
0.63 |
0.63 |
0.63 |
4 |
Air Consumption |
m³/min |
≤1.38 |
≤2.04 |
≤2.64 |
5 |
Impact Frequency |
Hz |
≥21.6 |
≥22 |
≥16.5 |
6 |
Impact Energy |
J |
≥49 |
≥69 |
≥100 |
7 |
Shank dimensions (hex×length) |
mm |
25×108 |
32×152 |
32×152 |
8 |
Air pipe inner diameter |
mm |
Ø19 |
Ø19 |
Ø19 |
P.S. The testing air pressure is 0.5MPa. |
