XTUW-6 Underground LHD Scooptram
Home » Products » LHD Loader » Diesel LHD Loader » XTUW-6 Underground LHD Scooptram

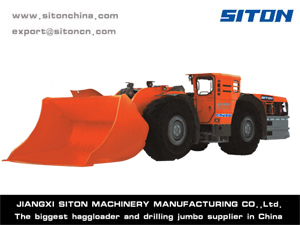

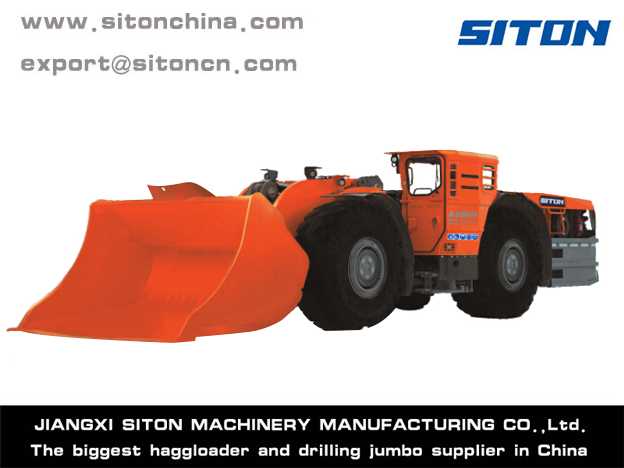

XTUW-6 Underground LHD Scooptram
Introduction of XTUW-6 Underground LHD Scooptram:

Mainly used for loading and transporting the loose rock material in mining tunnel.

The power system adopts world advance Cummins diesel engine with water cooling and low pollution.

Driving system adopts America DANA torque converter, power shift gear box and drive axle.

Brake system adopts full hydraulic system. The way of brake is spring applied and hydraulically released.

It has functions of driving brake, parking brake and emergency brake meanwhile.

Work safely and stably while the environment of tunnel is adverse with too much water and mud.

The working system and steering system adopt combined form, which improves the production efficiency greatly.

The main components of hydraulic system adopts America Parker brand. Good Quality and stable performance.

High Lifting design,Easy and Fast Loading.

Strengthen frame design, High anti impact capacity.



Functional Parameters of XTUW-6 Underground LHD Scooptram:

Item

Unit

XTUW-6

Bucket Capacity

M3

6

Rated Load Capacity

T

12

Discharge Height

mm

2450

Discharge Distance

mm

1980

Ground Clearance

mm

450

Turning Angle

(° )

42

Diesel Output

Kw/RMP

250/2200

Fuel Tank Capacity

L

420

Converter

DANA

Gearbox

DANA

Axles

DANA

Braking System

Multi Disc Wet

Departure Angle

(° )

14

Rear Axle Swing Angle

(° )

±8

Item

Unit

XTUW-6

Tyres Size

20× R25

Max. Climbing ability

%

≤30

Hydraulic oil tank capacity

L

280

Driving speeds

1st Gear

Kw/h

4.2

2nd Gear

Kw/h

8.5

3rd Gear

Kw/h

16.5

4th Gear

Kw/h

28.0

Turning Radius

Inner

mm

3815

Outer

mm

7003

Main Dimensions

Length

mm

10905

Width

mm

2830

Height

mm

2730

Weight

Kg

28500

Driving Cab

Closed

Remark: Our Company reserves the right that we'll revise the technical parameter and the fuction establishment if product upgrade.
