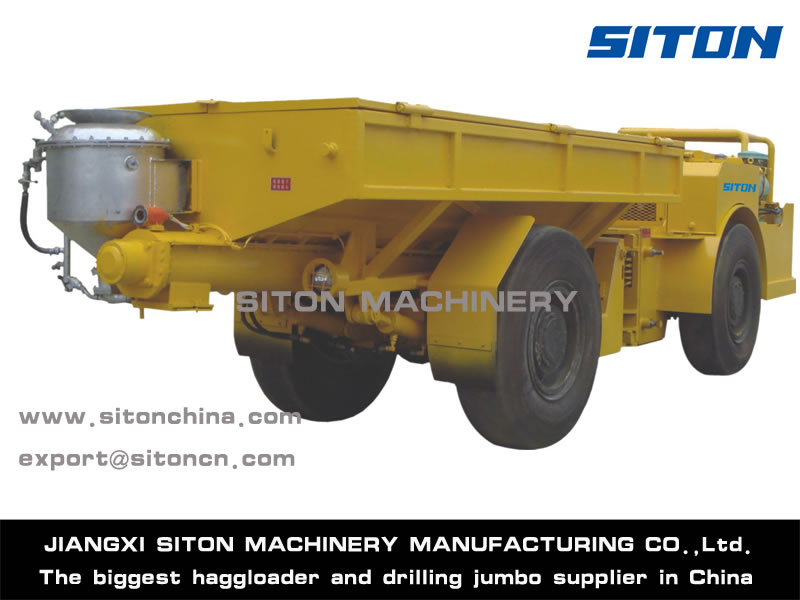

UK-6 Underground Truck
Main Overall Dimensions:
Model of Underground Mining Truck UK-6
Rated Loading Volume(m3) 3
Rated Loading Capacity(kg) 6000
Working Gradient of Underground Mining Truck 14°
Traveling Speed(km/h) of  Articulated Dump Truck Position I
Forward /Backward
6.5
Position II
Forward /Backward
13
Position III
Forward /Backward
20
Carriage Working Time (S) Lifting 12
         Falling  9
Min. Turning Radius (mm) Inner 3850
Outer 5980
Turning Angle 400
Power(KW/rpm) 63/2300
Engine Brand Deutz
Engine Type of Articulated Dump Truck Diesel
Engine Model F6L912W
Smooth and Cut-resistance Tyre Size 12.00-20
Operation Weight (kg) 14000
Net Weight (kg) 8000
Overall Dimension of Underground Mining Truck Length(mm) 6500
Width(mm) 1800
Height(mm) 2200
Description of UK-6 Underground Truck:

The hydraulic transmission device on this UK-6 tipper truck underground mining can guarantee the performance of the engine. In addition, this equipment can adapt automatically the change of load capacity in a certain degree. The working speed of this UK-6 Underground Truck can be adjusted automatically too. The speed changing box from DANA is benefit for the flexible operation of articulated dump truck. This UK-6 underground mining tipper truck is driven by four wheels. The front wheels are equipped with antiskid differential. The driving force and climbing capacity are all large, so the truck can work under various wicked conditions.

Siton is a professional manufacturer and supplier of UK-6 Underground Truck in China. In addition to this model of mine transporter articulated dump truck, the other models include UK-4, UK-10, XTUT-12, etc. we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, etc. These products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
