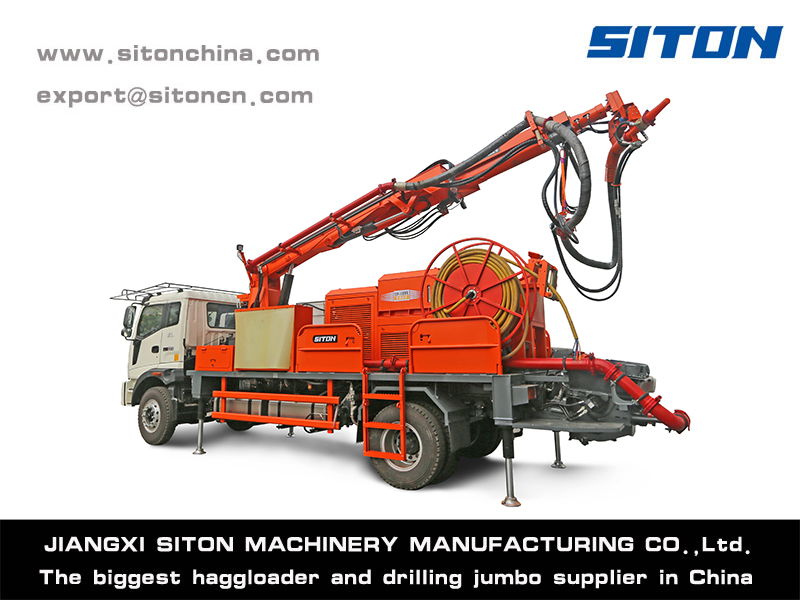

CSP30 Concrete Sprayer
Standard features of CSP30 Vehicular Concrete Sprayer:
The vehicular Concrete Sprayer is a new generation of equipment, which has synthesised the technology of domestic and foreign Concrete Sprayer. It has solved the shortage that the tranditional small model of Concrete Sprayer can not spay concrete well in long and big tunnel. And it has greatly improved the working enviroment for workers in the tunnel.

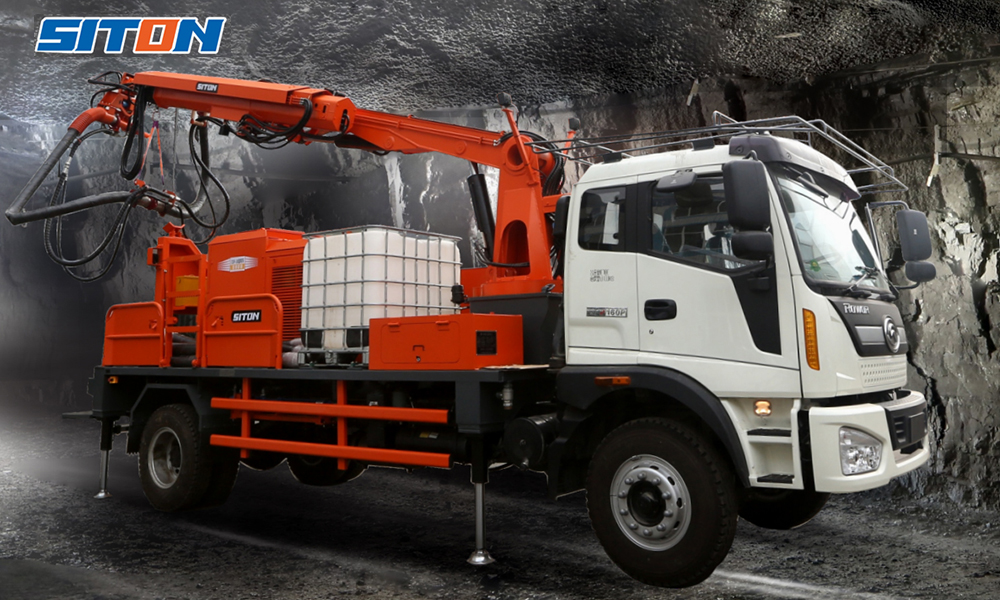

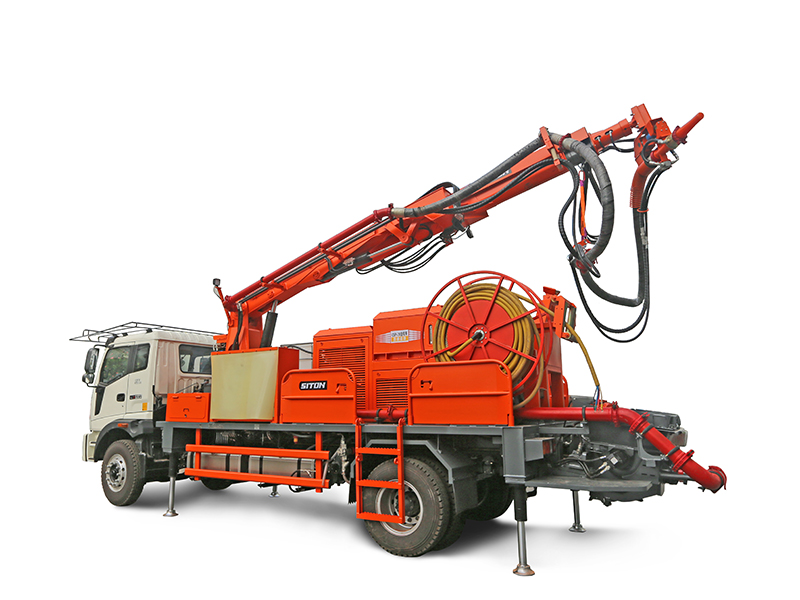

Product Show:
Specifications of CSP30 Vehicular Concrete Sprayer:
| Item | GSP30 | |

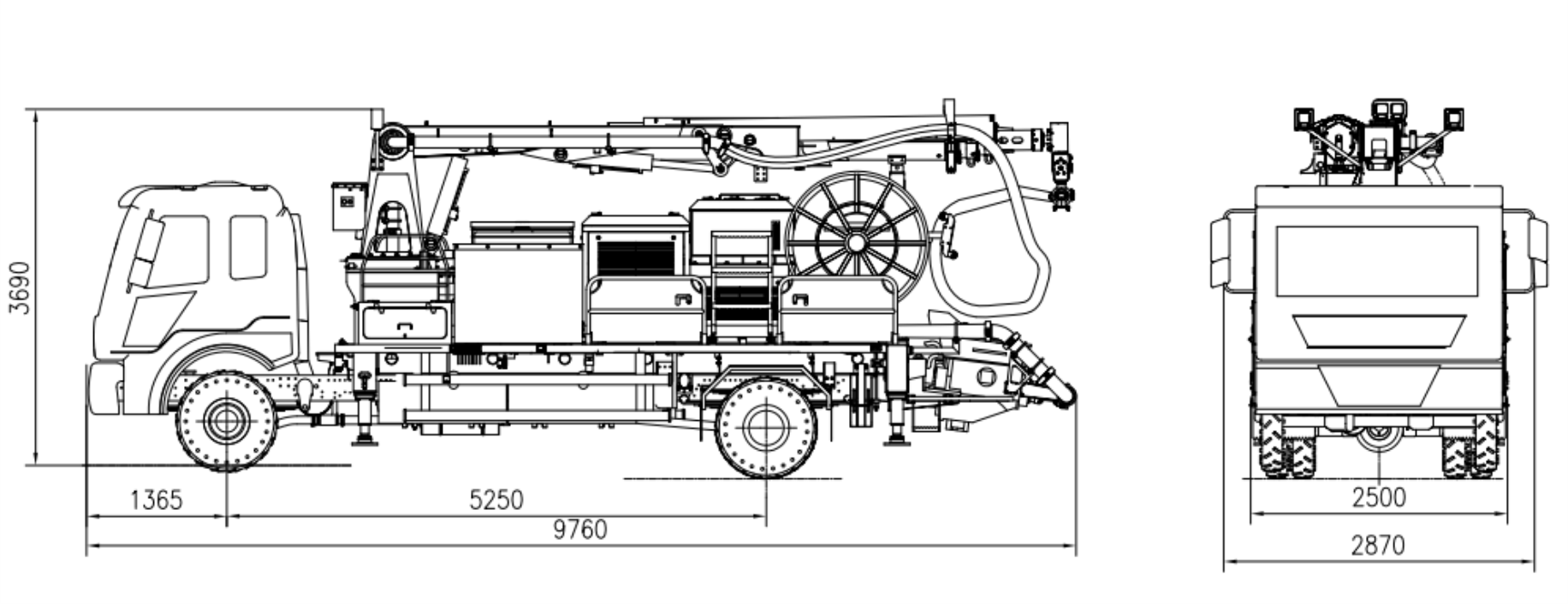

| Complete machine | Overall Dimension (L*W*H)mm | 9760*2500*3690 |
| Coverage Area (W*H) m | 25*15.8 | |
| Main Motors KW | 75 | |
| Total Weight kg | 16800 | |
| Diesel Power kW | 118 | |
| Carrier | Model | ROWOR160P |
| Fuel tank volume L | 200 | |
| Max speed Km/h | 90 | |
| Maximum grade | ≤20° | |
| Minimum Ground Clearance mm | 260 | |
| Boom | Spray vertical height m | 15.8 |
| Spray horizontal width m | 25 | |
| Boom pitch angle | 0-70° | |
| Forearm pitch angle | 0-110° | |
| Nozzle rotation angle | 360° | |
| Nozzle brushing angle | 360° | |
| Pump system | Theoretical displacement m³/h | 30 |
| System pressure Mpa | 24 | |
| Outlet pressure Mpa | ≤7.5 | |
| Conveying cylinder inner diameter*stroke | Φ160×1000 mm | |
| Delivery pipe diameter mm | Φ125-Φ90 | |
| Electric system | Operation method | Remote control |
| Voltage | 380V | |
| Auxiliary system | Maximum output of admixture L/h | 500 |
| Admixture system pressure Mpa | 0.8 | |
| Accelerator tank volume L | 1000 |
