DS3 Hydraulic Rock Bolting Rig
DS3 Hydraulic Rock Bolting Rig (Wide Type):
The mining hydraulic rock bolting rig has the functions of drilling, bolting and meshing, and is especially suitable for mine bolting support operations. It can be customized for pipe seam bolt, resin bolt, combination of pipe seam bolt + resin operation.
Parameters of DS3 Hydraulic Rock Bolting Rig:
| Item | DS3 | |

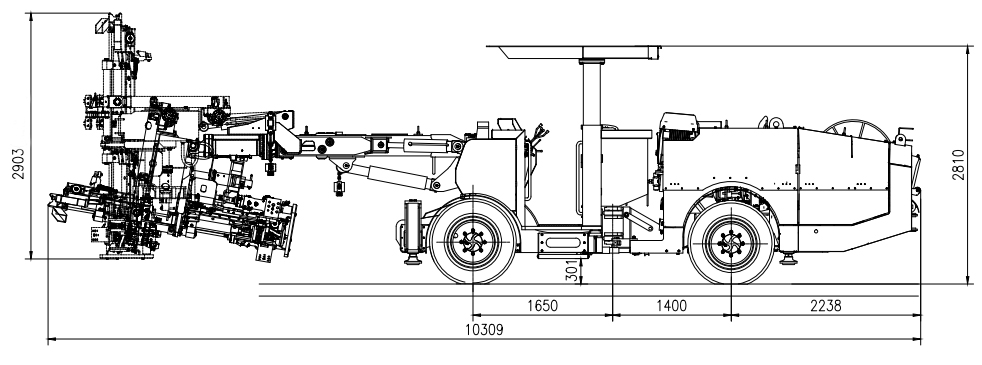

| Complete machine | Overall Dimension (L*W*H)mm | 10309x2050x2110/2810 |

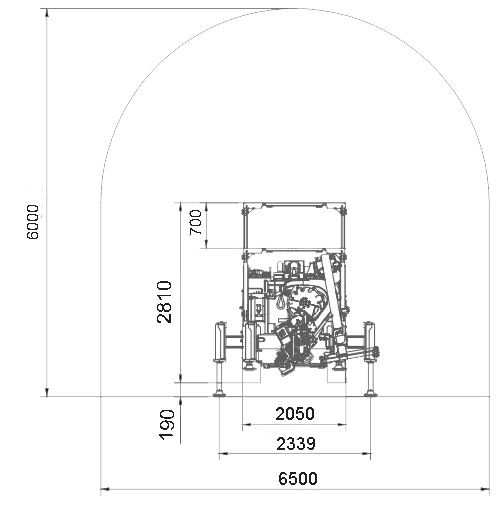

| Coverage Area (W*H) m | 3.5X3.5-5.1X5.6 | |
| Hole Diameter mm | φ32-64 | |
| Drill Steel Length mm | 2175 2475 2700 | |
| Hole Depth mm | 1950 2185 2460 | |
| Drill Speed m/min | 0.8-2 | |
| Main Motors KW | 62 | |
| Hydraulic Oil Tank, Volume Max L | 70 | |
| Total Weight kg | 12500 | |

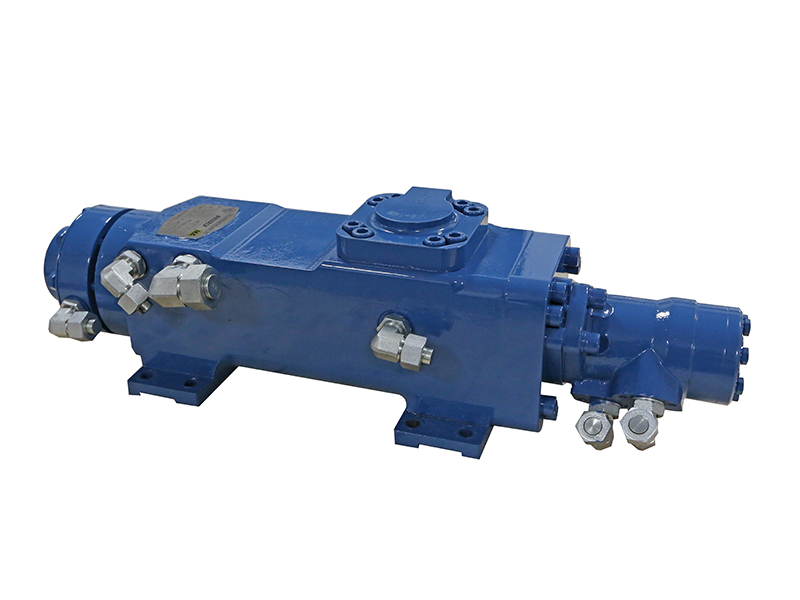

| Boom | Rock Drill WOSERLD | WHC25 (Standard) WHC28 (Optional) |
| Feed Roll-over | ±180° | |
| Telescopic mm | 1200 | |
| Feed Extension mm | 410 | |
| Carrier | Diesel Power KW | 53 |
| Articulated Steering | ±38° | |
| Tyre Size | 9.00R20 | |
| Rear Axle Swing angle | ±7° | |
| Clearance Axles / Outside Axles | 25/15 | |
| Min.Turning Raduis m | Inner >3.12/Outer >5.87 | |
| Tramming Speed km/h | 14 | |
| Ground Clearance mm | 301 | |
| Service Brakes | Multi-disc wet brake | |
| Fuel Tank Volume L | 70 | |
| Air system | Max Capacity L/S | 11.6 |
| Air Pressure Gauge Mpa | 0.8 | |
| Water system | Max Capacity L/min | 50 |
| Water Pressure Gauge Mpa | 2.5 | |
| Electric system | Total Installed Power KW | 62 |
| Voltage | 380V |

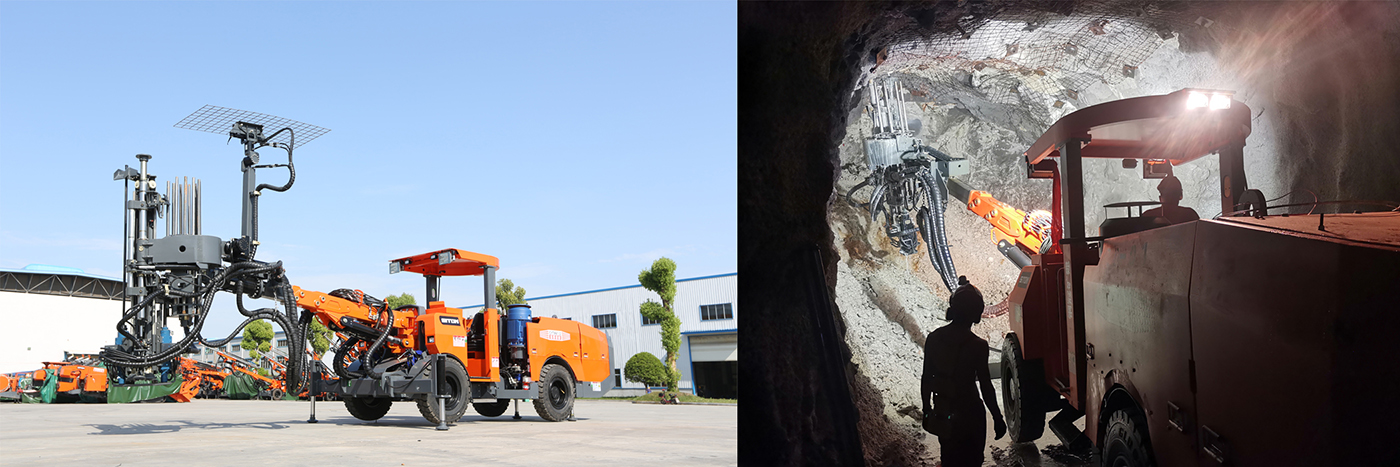

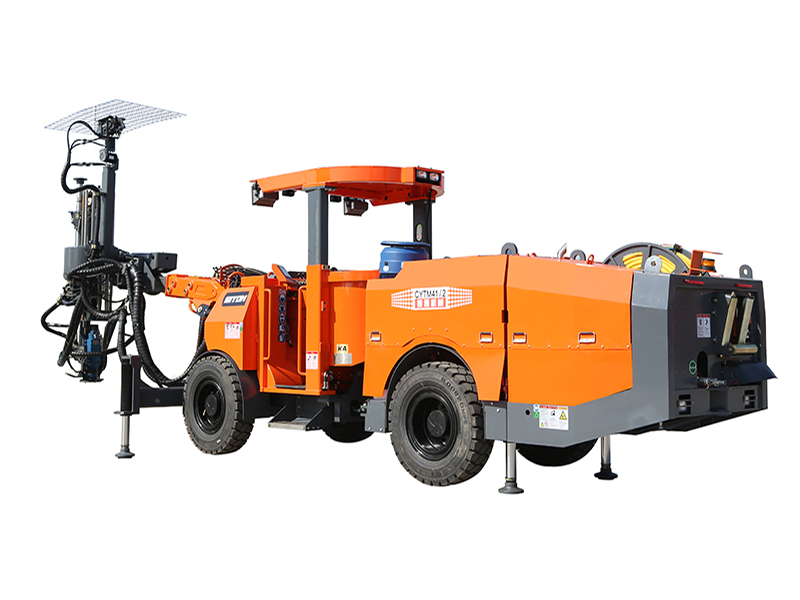

Product show:
Machines for underground mining project:
Machines for tunnel project:
