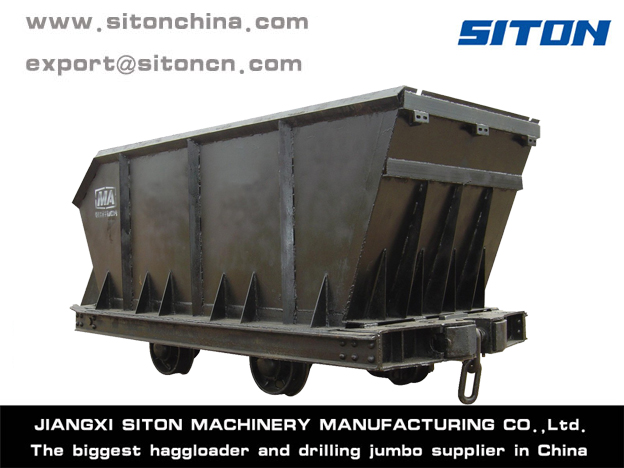

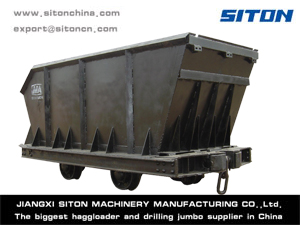

Bottom Dumping Wagon
Technical Parameters of Bottom Dumping Wagon:
Item |
Unit |
Main Parameters |
||||||
Model |
|
YDC 3.3-6 |
YDC 3.3-6 |
YDC 4-7 |
YDC 4-9 |
YDC 6-7 |
YDC 6-9 |
|
Capacity |
m3 |
3.3 |
3.3 |
4 |
4 |
6 |
6 |
|
Loading ability |
T |
3 |
3 |
10 |
10 |
15 |
15 |
|
Track Gauge |
mm |
600 |
600 |
762 |
900 |
762 |
900 |
|
Wheel base |
mm |
1100 |
1100 |
1300 |
1300 |
2500 |
2500 |
|
Wheel diameter |
mm |
350 |
350 |
450 |
450 |
400 |
400 |
|
Coupling form |
|
Bolt chain ring |
Bolt chain ring |
Bolt chain ring |
Bolt chain ring |
Bolt chain ring |
Bolt chain ring |
|
Traction height |
mm |
430 |
320 |
600 |
600 |
730 |
730 |
|
Dumping Angle |
(° ) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Overall Dimension |
Length |
mm |
3700 |
3450 |
3900 |
3900 |
5400 |
5400 |
Width |
mm |
1300 |
1200 |
1600 |
1600 |
1750 |
1750 |
|
Height |
mm |
1400 |
1400 |
1600 |
1600 |
1650 |
1650 |
|
Weight |
Kg |
1965overlapping |
1680 |
4320 |
4370 |
6320 |
6380 |
|
Traction force |
Kn |
60 |
60 |
60 |
60 |
60 |
60 |
|
