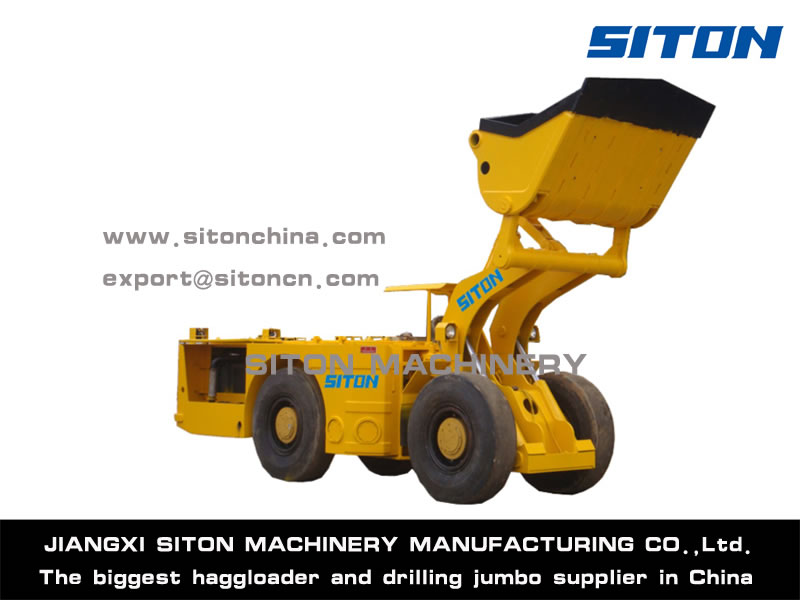

WJ-2G Diesel LHD Loader
Home » Products » LHD Loader » Diesel LHD Loader » WJ-2G Diesel LHD Loader
WJ-2G Diesel LHD Loader
Specification of WJ-2G Diesel LHD Loader:
Model of Diesel LHD Loader WJ-2G
Rated Loading Volume(m3) 2
Rated Loading Capacity(kg) 4000
Max. Traction Force(Kn) 90
Max. Shovel Force(Kn) 95
Traveling Speed(km/h) Position I  Forward/Backward 0-3.4
Position II Forward/Backward 0-6.5
Position III  Forward/Backward 0-14
Min. Turning Radius(mm) Inner 2700
Outer 5150
Max. Discharge Height(mm) 1800
Max. Discharge Distance(mm) 857
Angle of Discharge  40°
Ground Clearance(mm) 270
Climbing Ability 14°
Engine Brand of Diesel LHD Loader Deutz
Engine Type Diesel
Engine Power(KW/rpm) 63/2300
Operation Mass(kg) 12500
Overall Dimension of Diesel LHD Loader Length(mm) 7143
Width(mm) 1750
Height(mm) 2100

Siton is a professional manufacturer and supplier of WJ-2G diesel LHD loader in China. In addition to this underground LHD mining loader, we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, Underground Truck, etc. Our products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
