Mobile Belt Conveyor
Home » Products » Mining Haulage Equipment » Mobile Belt Conveyor
Triangle Belt Conveyor

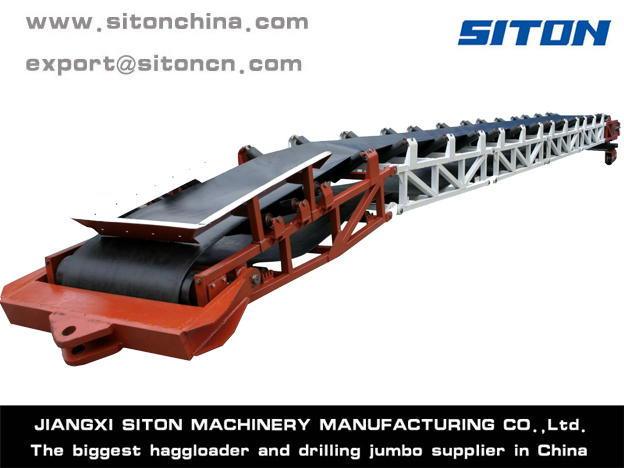

Introduction of Mobile Belt Conveyor:

The mobile belt conveyor is very useful and economical transferring set in the uninterrupted production line, it is adaptable to both stationary and mobile crusher plants.

The belt conveyor's transfer capacity is high and transfer distance is long. It is a very important component of stone production line and the mobile crusher plants. The Belt Conveyor is mobile and flexible to use according to various production and transfer lines.

The mobile belt conveyor is through the whole crushing product line, and it played the transmitting and connection role between superior and subordinate crushing. The mobile belt conveyor is the necessary equipment during rock crushing and it's a carefully considered part for customers.

Applications of Mobile Belt Conveyor:

The mobile belt conveyor is adaptable for mobile crushing plant and stationary. They are widely used in fields of mining and metallurgical industry to transfer sandy, lump materials or packaged materials in other areas. The length and width of mobile belts conveyor depended on customer requirements about the stone crushing scale, usually it should refer to the landform and different situations.

Technical Parameters:
Item/ Model parameters DZQ80/ 35/ 18.5 DZQ80/ 35/ 15 DZQ80/ 35/ 11 DZQ65/ 25/ 15 DZQ65/ 25/ 11 DZQ65/ 25/ 7.5
Conveyor data Overall length (m) 35 32 24 35 32 24
Overall width (m) 1.786 1.786
Overall height (m) 1.88 1.88
weight 8575 8175 7375 8170 7770 6970
Weight delivered (t/h) 350 250
Electric roller Voltage (v) 1140/ 660/ 380
Power (kw) 18.5 15 11 15 11 7.5
Diameter (mm) 500 500
Pilot roller Diameter (mm) 270 270
Toughed roller Diameter (mm) 108
Roller length (mm) 280 220
Roller underneath Diameter (mm) 89
Roller length (mm) 920 730
Fabric heavy-duty Antifoaming conveyor Model 800S 800S
Width of conveyor belt (mm) 800 650
Pulling strength (N/mm) 800 800

Note: The above parameters are only for reference. They can be different from the actual parameters.

As a professional manufacturer and supplier of mobile belt conveyor in China, Siton is founded in 1992. Our products mainly include mucking equipment, tunnel excavating equipment and mining haulage equipment. We also provide bridge conveyor, triangle belt conveyor, Shuttle Mining Car, etc. All our products have passed the security certificate and the patent certificate of national grade. Besides, our company possesses more than 60% market share. We establish business relationship with customers from Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you need mobile belt conveyor, please don't hesitate to contact us.
