WJ-2F Diesel LHD Loader
Home » Products » LHD Loader » Diesel LHD Loader » WJ-2F Diesel LHD Loader

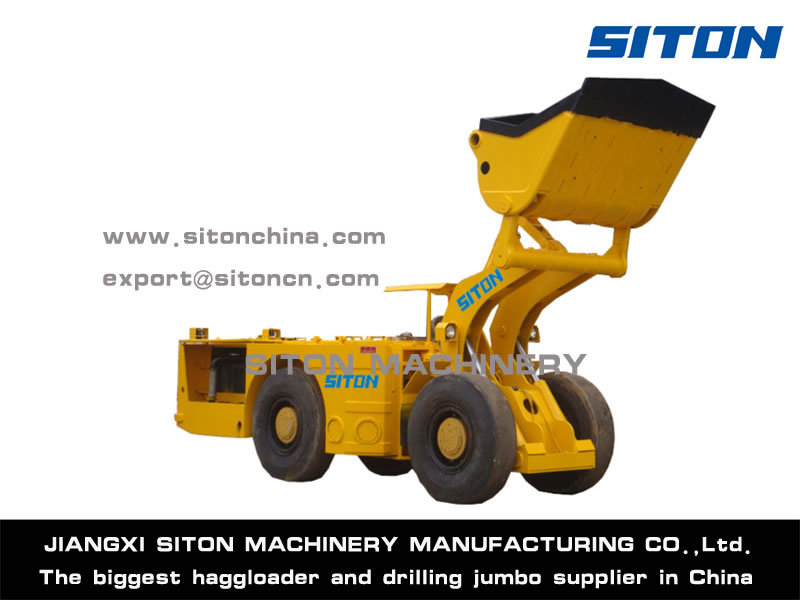

WJ-2F Diesel LHD Loader
Specification of WJ-2F Diesel LHD Loader:
Model of Diesel LHD Loader WJ-2F
Rated Loading Volume (m3) 2.2
Rated Loading Capacity (kg) 4000
Max. Traction Force (Kn) 110
Max. Shovel Force (Kn) 100
Traveling Speed (km/h) Position I
Forward/ Backward
0-3.55
Position II
Forward/ Backward
0-6.0
Position III
Forward/ Backward
0-16
Min. Turning Radius (mm) Inner 3300
Outer 5800
Max. Discharge Height (mm) 1800
Max. Discharge Distance (mm) 1100
Angle of Discharge 45°
Ground Clearance (mm) 300
Climbing Ability 14°
Engine Brand Deutz
Engine Type of Diesel LHD Loader Diesel
Engine power (KW/rpm) 112/2300
Operation Mass (kg) 14000
Overall Dimension of Diesel LHD Loader Length (mm) 7645
Width (mm) 1960
Height (mm) 2250

Siton is a professional manufacturer and supplier of WJ-2F diesel LHD loader in China. In addition to this underground LHD mining loader, we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, Underground Truck, etc. Our products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
