Coal Mucking Loader
Home » Products » Mucking Equipment » Mucking Loader » Coal Mucking Loader

Description of Coal Mucking Loader:

Our company possesses more than 60% market share in China in the undergroud mining projects.

Our products mainly include mucking equipment, tunnel excavating equipment and mining haulage equipment. Here we introduce one kind of special LHD loader: coal mucking loader.

The coal mucking loader, also called coal mine haggloader, is a kind of underground mining loading machine. It can be used to excavate different rocks and ores such as iron ore, coal mine, bauxite, chromium, goldmine, copper mine and manganese. Besides, it can also be applied in coal or non-coal mine, railway, diversion, national defense, etc.

The coal mucking loader, or coal mine haggloader, is equipped with pilot control, electronic hydraulic transmission and minimum laneway cross section. Besides, the haggloaders are compact structures with reliable performance at optimum prices. The new facility should simplify.

Range Of Application:

The mucking loader is mainly used in coal mines, metal mines, hydropower tunnels and other underground projects. The company has developed different kinds of loaders many times and updated them to adapt to different working conditions including section from2.0 x 2.0 m to 9 x 9 m (Height x Width), slope within 33°.

Main Characteristics of Coal Mucking Loader:

1. The mucking loader adopts Electrohydraulic control system with reduced-voltage start Suitable for long tunnel projects.

2. Main movements controlled by pilot valves, Easily operated and stable.

3. 30% of the configurations are imported.Oil will be Multistep filtered.with air cooling radiator.

4. Load rocks completely without labor work.

5. Convey rocks with chain -scraper, stable and high efficiency.

6. Semi-enclosed assembling, easy to maintain.

Main Overall Dimensions:
Item LWLX-120/55L
Crawler contacting ground length 2560mm
Crawler inner width 1200mm(variable)
Crawler plate width 450/550mm
Ground clearance 450mm(variable)
Dimensions during transport Length 5594mm
Width 1815mm
Height 2350mm
Dimensions during operating Length 7290mm
Width 1815mm
Height 3390mm

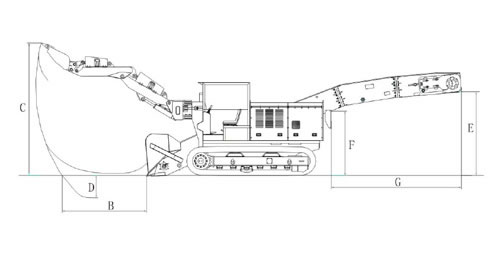

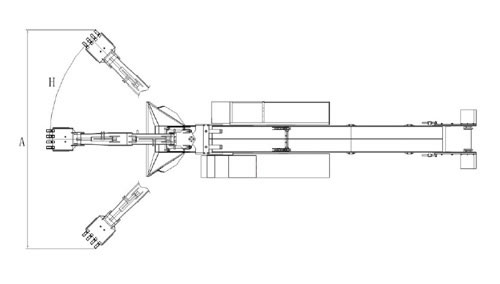

Working Range of Coal Mucking Loader:
LWLX-120/55L
Digging width 5900mm
Digging distance(from dozer blade) 2470mm
Digging height 3330mm
Digging depth below ground level 800mm
Max. boom angle ±55°
Adaptive tunnel dimension (Width × Height) ≥2.8×2.8m
Functional Parameters of Coal Mucking Loader:
Potencia general 55kw
Weight 9700kg
Traveling speed 0.25±5%m/s
Adaptive tunnel slope ≤32°
Minimum turning radius ≥5m
Ground pressure ≤0.07Mpa
Steering Hydraulic
Volume of hydraulic tank 260L
Maximum working pressure 32Mpa
Hydraulic pump Plunger pump×2+gear pump×2
Walking hydraulic motor Radial plunger motor×2

Note: The above-mentioned parameters are only for reference. They may be different from the actual parameters.

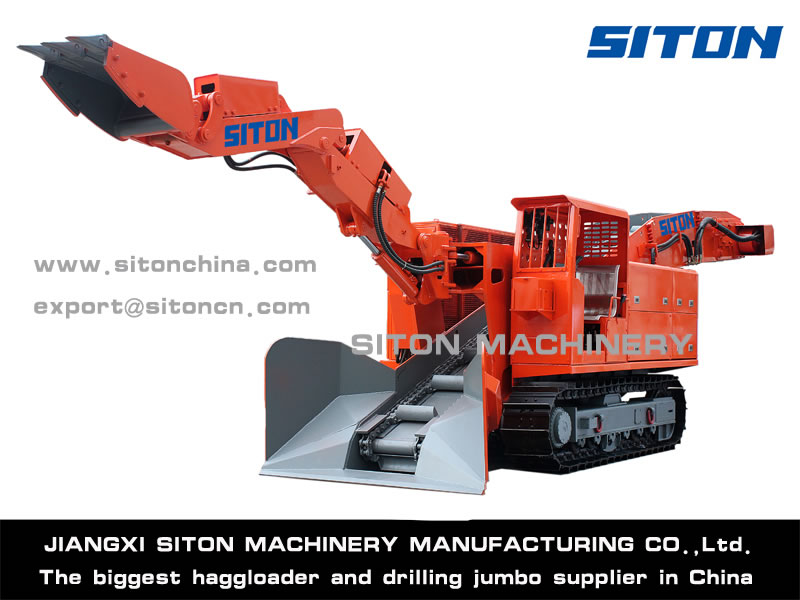

Coal Mucking Loader

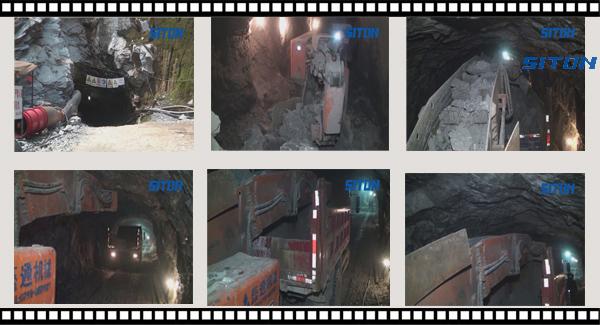

On site mucking loader with dumping truck

Coal Mucking Loader


As a professional manufacturer and supplier of coal mucking loader in China, Siton is belived to offer customers superior coal mucking loader via years of experience in the mining constructions. We also provide rock mucking machine, tunneling haggloader, and related mining machines for the whole underground constructions. All our products have passed the security certificate and the patent certificate of national grade. If you need to refer any question about the coal mucking loader (coal mine haggloader), please don't hesitate to contact us.
