Introduction of Air Picks

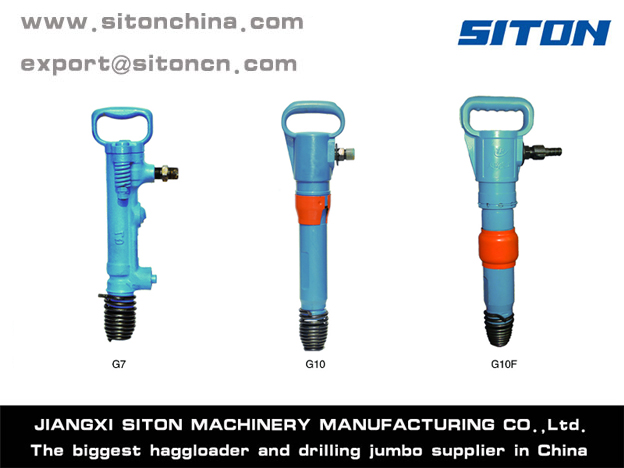

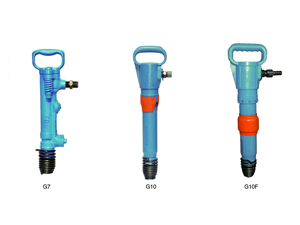

Compared with similar types of air picks, G7 air pick is light, flexible and convenient and it is suitable for operating all rounds of work, especially in narrow, upper or climbing directions. It can stop working automatically when the solid object is broken. It's widely used in coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete or frozen earth in construction, installation engineering and constructing works in casting industries etc.
The type of G10 has higher efficiency and durability owing to its features of short and light, and it is easier for repair and maintenance than others.
Main application: coal mining, soft rock, digging pits for post brackets, digging slots, breaking concrete or frozen earth in construction, installation engineering or constructing works in casting industries.
G10F air pick is antifreezing, and more suitable for low temperature conditions, which is mainly used in cold plateau area.
No. |
Item |
Unit |
G7 |
G10 |
G10F |
1 |
Weight |
kg |
7 |
10 |
10 |
2 |
Length |
mm |
465 |
575 |
570 |
3 |
Shank dimensions (hex×length) |
mm |
26×82 |
24×70 |
24×70 |
4 |
Fixed mode |
|
Mechanical spring |
Mechanical spring |
Mechanical spring |
5 |
Air pipe inner diameter |
mm |
Ø19 |
Ø16 |
Ø16 |
6 |
Working pressure |
MPa |
0.4~0.5 |
0.4~0.63 |
0.4~0.63 |
