DS5 Hydraulic Rock Bolting Rig
Home » Products » Rock Bolting Rig » DS5 Hydraulic Rock Bolting Rig

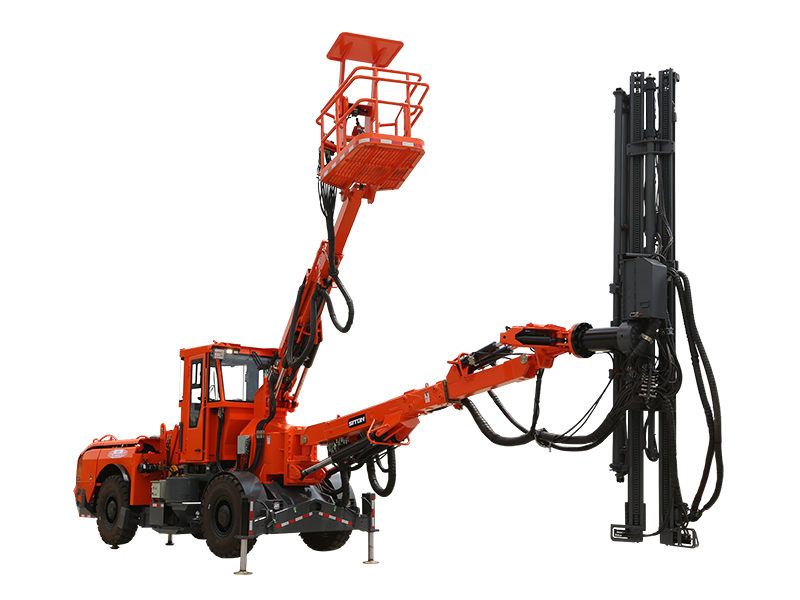

DS5 Hydraulic Rock Bolting Rig:

The DS5 hydraulic rock bolting rig is a multi-functional integrated machine for drilling and grouting. It can realize the fully mechanical integration of drilling, plugging, and grouting in tunnel bolt construction.

The boom and an aerial work platform boom have the characteristics of high degree of mechanization, wide working range and fast operation speed, and are widely used in the construction of tunnel rock bolts in railways, highways, water conservancy projects, and national defense.

Parameters of DS5 Hydraulic Rock Bolting Rig:
ItemDS5

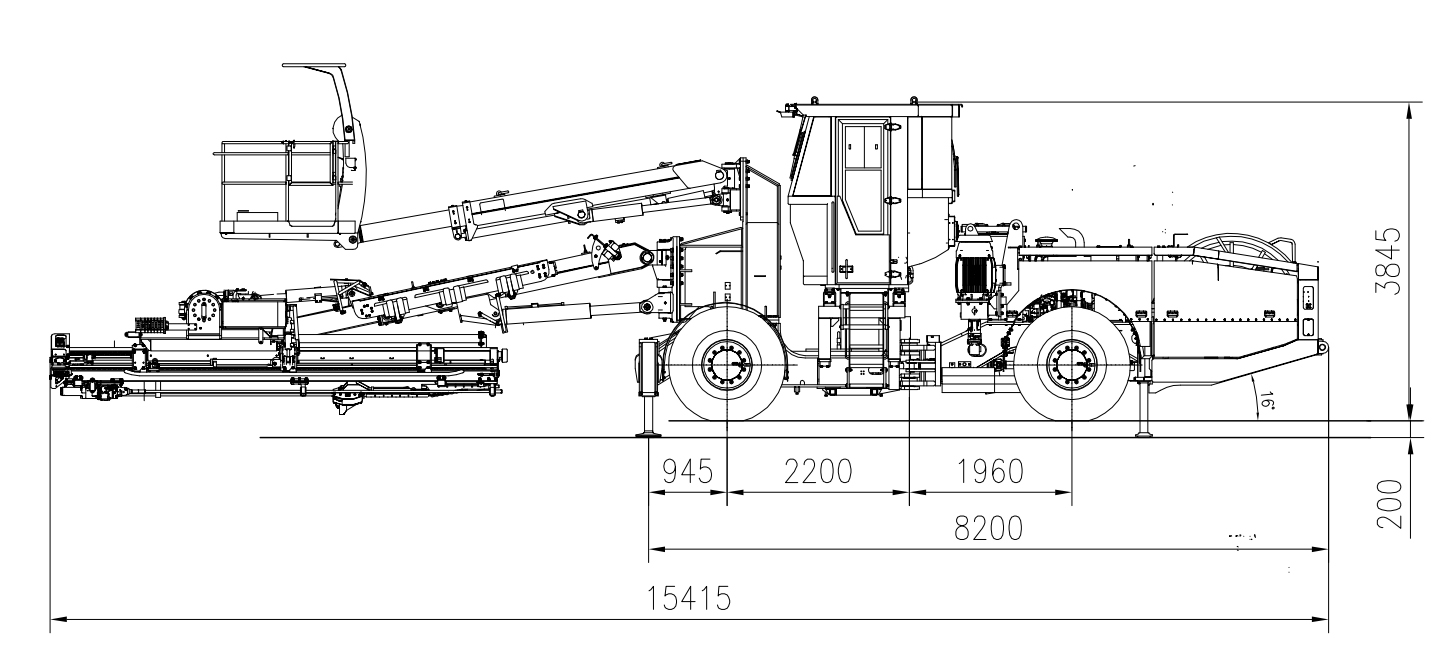

Complete machineOverall Dimension (L*W*H)mm 15415*2694*3845

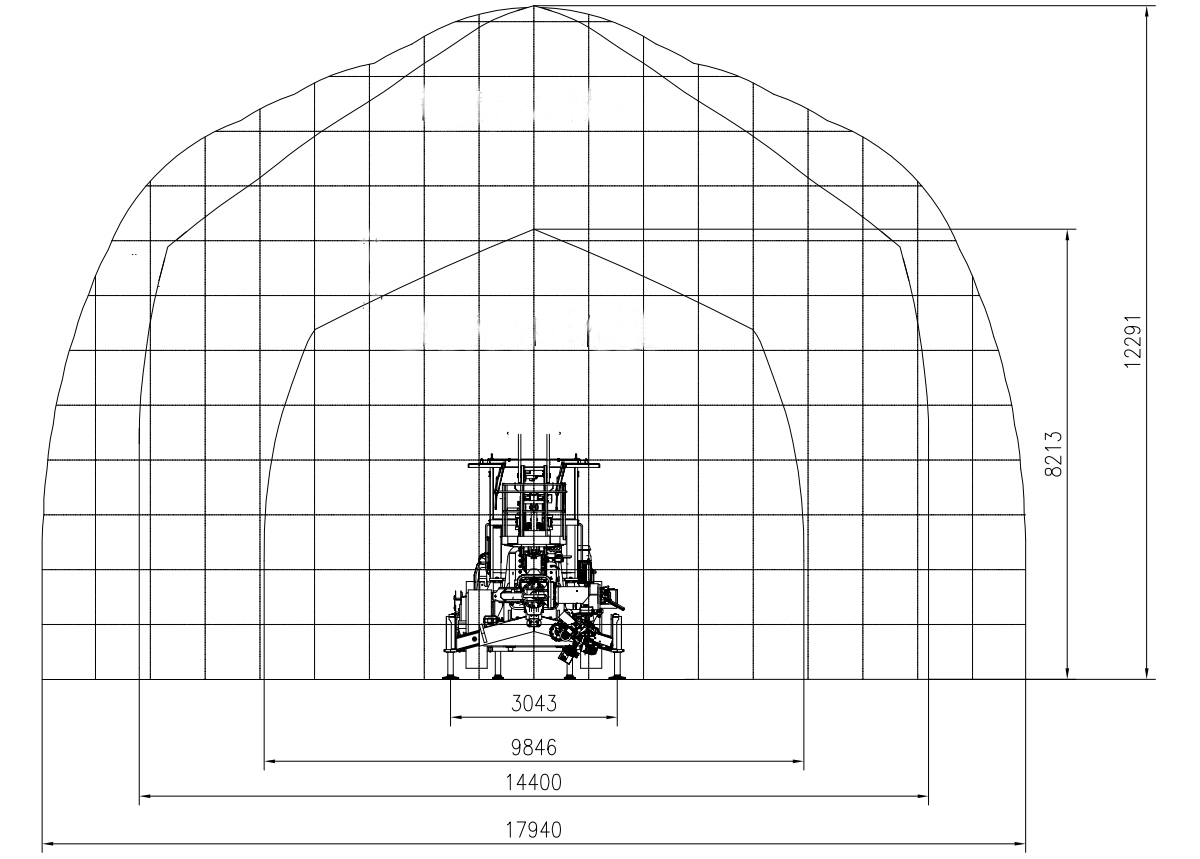

Coverage Area (W*H) m 17.9-12.2
Hole Diameter mmφ45-76
Drill Steel Length mm 4510 5440
Hole Depth mm 4000 5000
Drill Speed m/min0.8-2
Main Motors KW 55
Hydraulic Oil Tank, Volume Max L 260
Total Weight kg32000

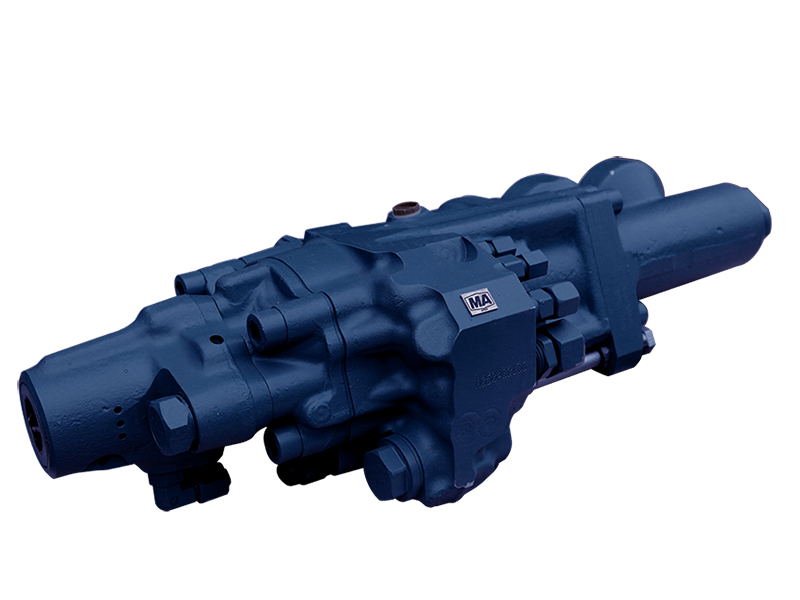

BoomRock Drill WOSERLDW13
Feed Roll-over±180°
Telescopic mm1800
Carrier Diesel Power KW120
Articulated Steering±40°
Tyre Size 14.00R24
Rear Axle Swing angle ±7°
Clearance Axles / Outside Axles 20/16
Tramming Speed km/h14
Ground Clearance mm304
Service BrakesMulti-disc wet brake
Fuel Tank Volume L110
Air systemMax Capacity m/min 0.9
Air Pressure Gauge Mpa0.8
Water systemMax Capacity L/min 50
Water Pressure Gauge Mpa 2.5
Electric system Total Installed Power KW62
Voltage 380V
