LWT-120 Wheel Mucking Loader

Home » Products » Mucking Loader » Wheel Mucking Loader » LWT-120 Wheel Mucking Loader

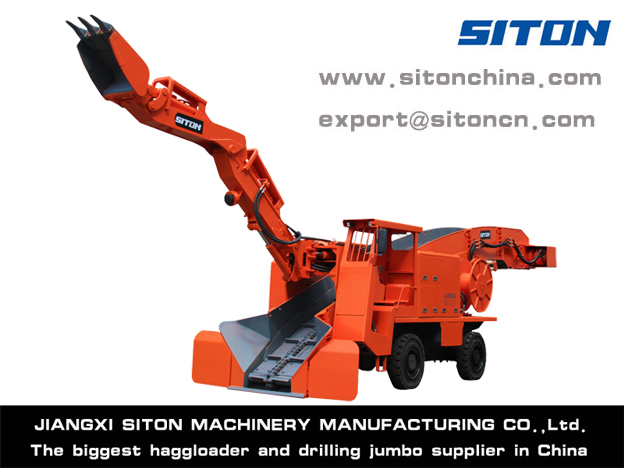

LWT-120 Wheel Mucking Loader

Large Wheel Mucking Loader Series

For Level Surface ≤ 15°

Main Overall Dimension:

Item		LWT- 120/45T
Crawler contacting ground length		710mm
Crawler inner width		2100mm
Crawler plate width		1750mm
Ground clearance		210mm
Max. rock conveying size		620X720mm
Dimensions	Length	9140mm
during	Width	1880mm
transport	Height	2160mm
Dimensions	Length	10980mm
during	Width	2230mm
working	Height	2540mm

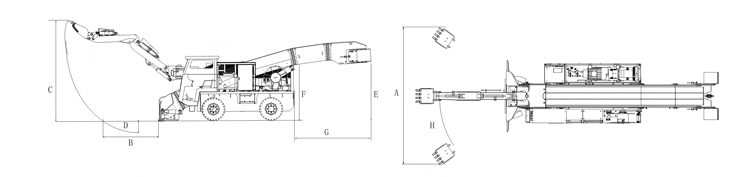

Working Sketch Map:

LWT-120 Wheel Mucking Loader

Working Range:

Item	LWT- 120/45T
A Digging width	5900mm
B Digging distance (from dozer blade)	2470mm
C Digging height	3300mm
D Digging depth below ground level	600mm
E Dumping height	1800mm (variable)
F Min. dumping height	1700mm (variable)
G Dumping distance	2813mm (variable)
H Max. boom angle	±55°
Adaptive tunnel dimension (Width x Height)	≥3.2x.3.2m

Functional Parameters:

Loading ability	120m3/h
Potencia general	7200kg
Weight	30 kw
Traveling speed	30 kw
Scraper chain	7.0km/h
Adaptive tunnel slope	Single chain single motor
Min. turning radius	≤15°
Ground pressure	≥5.6m
Steering	Hydraulic
Speed of scarper chain	30m/min
Volume of hydraulic tank	160L
Max. working pressure	24Mpa
Hydraulic pump	Gear pump x4
Traveling hydraulic motor	Radial plunger motor x 1
Conveyor hydraulic motor	Radial plunger motorx 1
