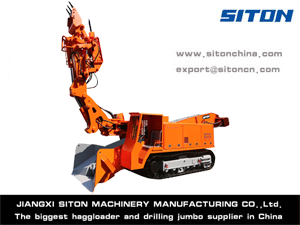

Crawler Loader with Hammer
Home » Products » Mucking Equipment » Mucking Loader » Crawler Loader with Hammer


Features of LWLX-100-45L Crawler Loader with Hammer:


1. Hydraulic transmission is used as power resource for this track loader.

2. Crawler mucking loader LWLX-100-45L is suitable for horizontal tunnel construction. The maximum working scope it can be used is 15°.

3. This hydraulic transmission system is with low emission and low loss. Air quality inside constructed tunnel is controllable.

4. Duckbilled shovel mouth increases working efficiency. Crawler loader LWLX-100-45L can finish collecting and loading materials with little human assistance.

5. We employ latest three arms combination, which has more wide coverage than traditional two arms design.

6. Discharging height and distance of conveying trough can be customized.

7. Excavator bucket and conveying trough is made up of imported heavy duty and wear plate. This truck loader adopts CO2 continuous welding technique to increase anti-fatigue performance.

8. Hydraulic operation rod and pedal plate which are imported from Korea, are simple to operate.

9. Maintenance is easy and convenient, since the equipment can be greatly opened on both sides and maintenance points are within in touch.

10. Crawler mucking loader LWLX-100-45L is safe to use. The machine is equipped with safety bell and emergency stop switch.

  • Crawler Loader with Hammer
  • Crawler Loader with Hammer
  • Crawler Loader with Hammer
Optional Configuration of Crawler Loader:

1. Cantilevered Belt Conveyor.

2. Diesel Engine.

3. Cable Reel.

Parameters of Crawler Loader LWLX-100-45L:
Total Weight 12300 kg
Loading Capacity 100m3/h
Traveling Speed 0.25 ± 5% m/s
Conveying Speed of Scraper Chain 40 m/min
Conveying Type of Scraper Chain Single Chain Single Driving/Double Chain Double Driving
Climbing Ability ≤ 20°
Min. Turning Radius ≥5 m
Max. Working Pressure (MWP) 32 Mpa
Ground Connection Specific Pressure ≤ 0.1 Mpa
Ground Clearance 350 mm (Variable)
Total Power 45 KW
Internal Width of Crawler Belt 1100 mm (Variable)
Width of Conveying Trough 580 mm
Overall Dimension in Conveying Position Length 7760 mm
Width 1800 mm
Height 1866 mm
Overall Dimension in Working Position Length 8990 mm
Width 1800 mm
Height 2180 mm
TT068 Breaking Hammer of Crawler Loader:
Weight 298 kg
Working Pressure 11 Mpa
Hammering Speed 450 to 750 (Beats Per Minute)
Drilling Rod Diameter 68 mm
Dimension (L × W) 1373 × 241 (mm)
Crawler Loader with HammerCrawler Loader with Hammer

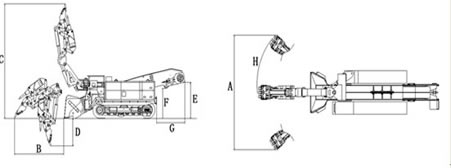

Working Range Parameters of Crawler Loader:
A Digging Width 6400 mm
B Digging Distance 2580 mm
C Digging Height 5500 mm
D Digging Depth 540 mm
F-E Dumping Height 1324 to 1570 (mm) (Variable)
G Dumping Distance 1486 mm (Variable)
H Max. Rotation Angle ± 55°
Applicable Tunnel Cross- Section ≥ 2.4 × 2.4 (m)
