DR1-14 Rail Single Boom Drilling Jumbo
Home » Products » Tunnel Excavation Equipment » Tunnel Drilling Jumbo » DR1-14 Rail Single Boom Drilling Jumbo

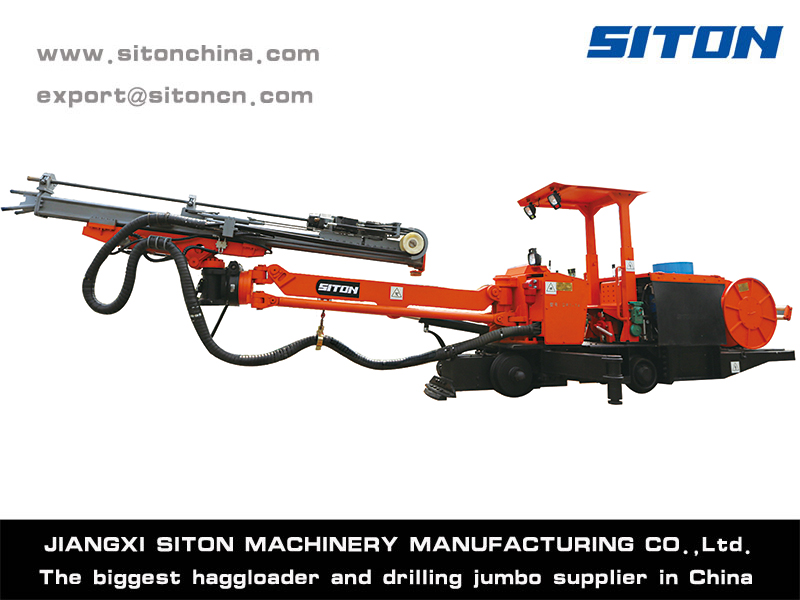

DR1-14 Rail Single Boom Drilling Jumbo
Parameters of DR1-14 Rail Single Boom Drilling Jumbo:

Item

Technical data

Whole machine

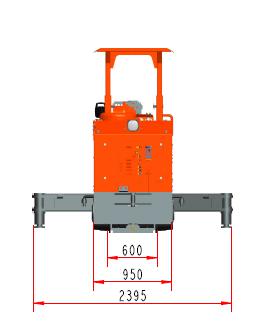

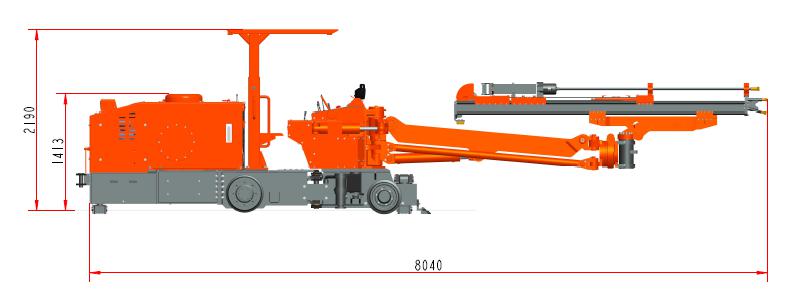

Over all dimension L*W*H mm

8362×950×1413 With platfond height 2190

Drilling diameter mm

φ38~φ102

Drilling rod length mm

2475

Drilling depth mm

2100

Drilling speed m/min

0.8~2

Adopted tunnel(W*H)

2×2~4.3×3.5

Whole power kw

39.2

Whole weight kgs

7200

Chassis

Min turning radius m

6

Traveling speed km/h

3

Working gradient

≤5°

Drilling arm

Arm No.

1

Up down

Up 45° down20°

Swing arm

Left 31.5° right31.5°

Swing angle

Inner 90° outer90°

Rotary

Positive180° negative180°

Propeller

Downward upward

Downward35° upward 10°

Conpensation length mm

1400

Full length mm

3792

Length mm

2100

Max Propusion N

7500
