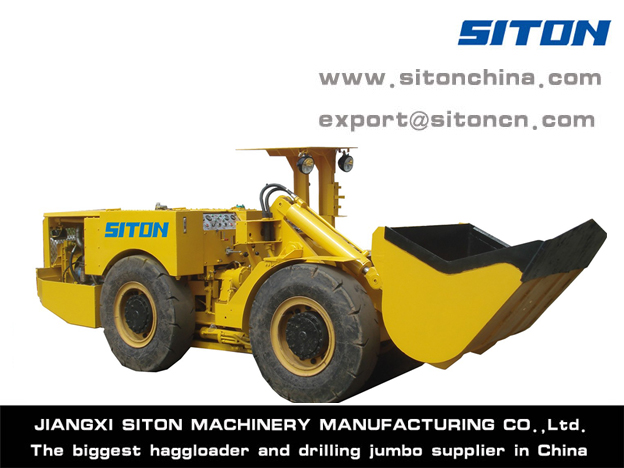

WJ-1 Diesel LHD Loader
Specification of WJ-1 Diesel LHD Loader:
Model of Diesel LHD Loader WJ-1
Rated Loading Volume(m3) 1
Rated Loading Capacity(kg) 2000
Max. Traction Force(Kn) 50
Max. Shovel Force(Kn) 42
Traveling Speed(km/h) 0-8
Min. Turning Radius(mm) Inner 2350
Outer 4100
Max. Discharge Height(mm) 940
Max. Discharge Distance(mm) 729
Angle of Discharge  43°
Ground Clearance(mm) 190
Climbing Ability 14°
Engine Brand Deutz
Engine Type of Diesel LHD Loader Diesel
Engine Power(KW/rpm) 58/2300
Operation Mass(kg) 7000
Overall Dimension of WJ-1 Diesel LHD Loader Length(mm) 5560
Width(mm) 1320
Height(mm) 2000

Siton is a professional manufacturer and supplier of WJ-1 diesel LHD loader in China. In addition to this underground LHD mining loader, we also have other products, such as crawler drilling jumbo, crawler roadheader, rock loader, Underground Truck, etc. Our products are mainly used in a wide variety of underground mining fields, such as rock roadway coal mining, semi-coal rock tunnel, railway tunnel engineering projects, national defense caves, etc.
