Underground Loader
Home » Products » Underground Truck and Loader » Underground Loader XTUW-5
Product Introduction of Underground Loader XTUW-5:

XTUW-5 Mainly used for shoveling and transporting loose materials in mines.

Power system: Volvo water-cooled low-pollution engine.

Transmission system: hydraulic torque converter, power shift gearbox and drive axle of DANA U.S.

Braking system: full hydraulic system, braking and hydraulic release; service braking, parking brake and emergency braking; Safe and reliable in harsh environments, high water content, and muddy roadways.

Working system and steering system: combined form, improves production efficiency.

Main components of the hydraulic system: Parker U.S

Specifications of Underground Loader XTUW-5:
Item Date
Complete machine Overall Dimension (L*W*H)10277×2550×2380 mm
Tramming capacity (payload) 28500 kg
Max. Tractive force 240kN
Loading weight 10000kg
Lifting force 184kN
Shovel force 163kN
Climbing ability 15°
Bucket volume 5m³
Torque converter Dana C5000
Transmission Dana 36000
Travel speed 1gear 5km/h
2gear 9km/h
3gear 16km/h
4gear 25km/h
Tire Model 18.00R25
Brand China Top brand
Hydraulic system Steering Pump Gear pump
Working hydraulic tank volume 250 L
Electric system Generator 24 V
Battery 2 x 12V, 120Ah
Power train Diesel engine Volvo TAD853
Rated power 235 kW @2200rpm
MAX torque 1310Nm @ 1450rpm
Number of cylinders Straight 6 cylinder
Displacement 7.7 L
Drawing:

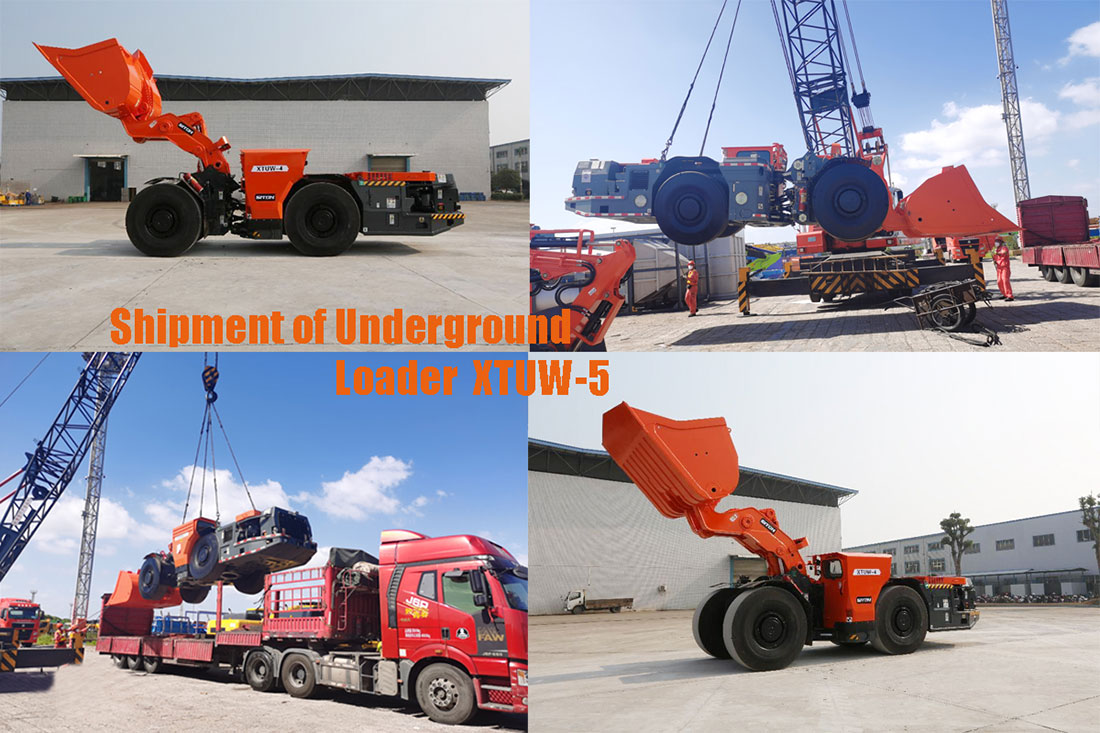

Product Show:

Machines for underground mining project:

Machines for tunnel project:
