DL1 Hydraulic Long Hole Drill Rig
DL4 Production Drilling Rig:
DL4 Production drilling rig specially developed for medium and deep hole drilling in medium and large tunnels of 3.8m and above. The propelling beam can be pitched and rotated, and the design of swing arm and sliding type boom is suitable. Deep-hole blasting various rock drilling operations with hole-laying methods.

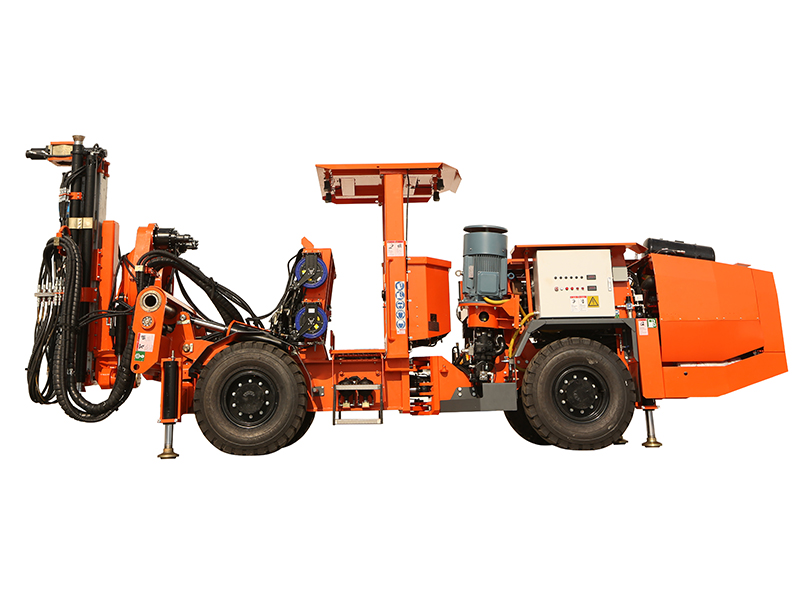

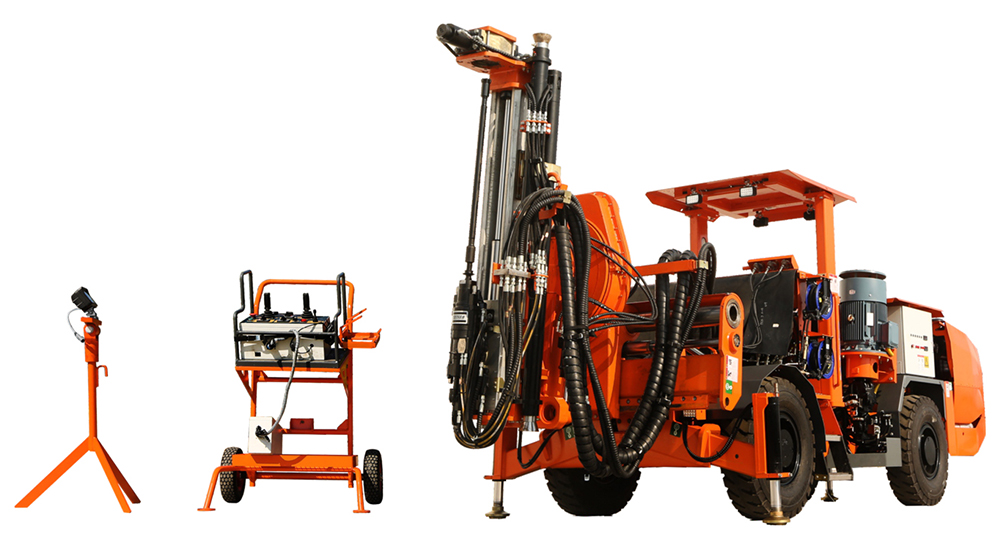

Product Show:
Parameters of DL4 Production Drilling Rig:
| Item | DL4 | |

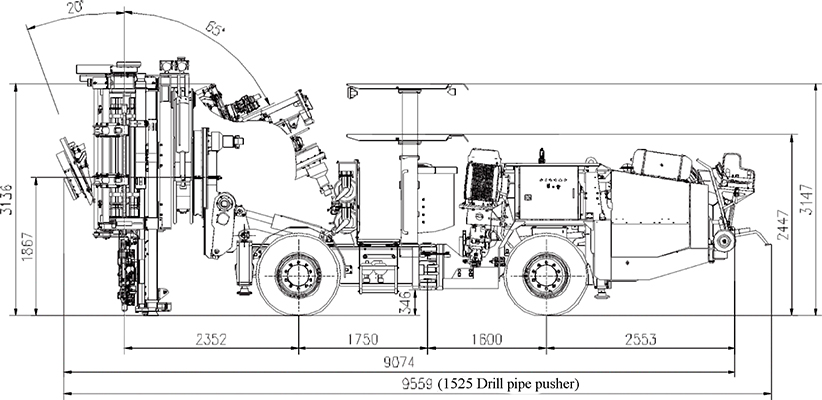

| Complete machine | Overall Dimension (L*W*H)mm | 9074(9350)*2409*2318(3018) |

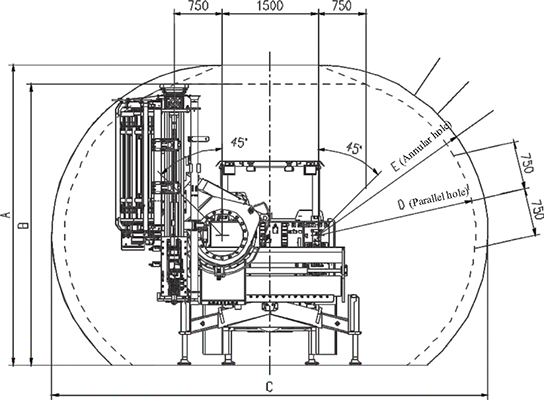

| Coverage Area (W*H) m | 3*3 | |
| Hole Diameter mm | φ64-76/76-89 | |
| Drill Steel Length mm | 1525 1830 | |
| Hole Depth m | 34.5 41.5 | |
| Drill Speed m/min | 0.5-2 | |
| Main Motors KW | 75 | |
| Hydraulic Oil Tank, Volume Max L | 165 | |
| Total Weight kg | 17600 | |

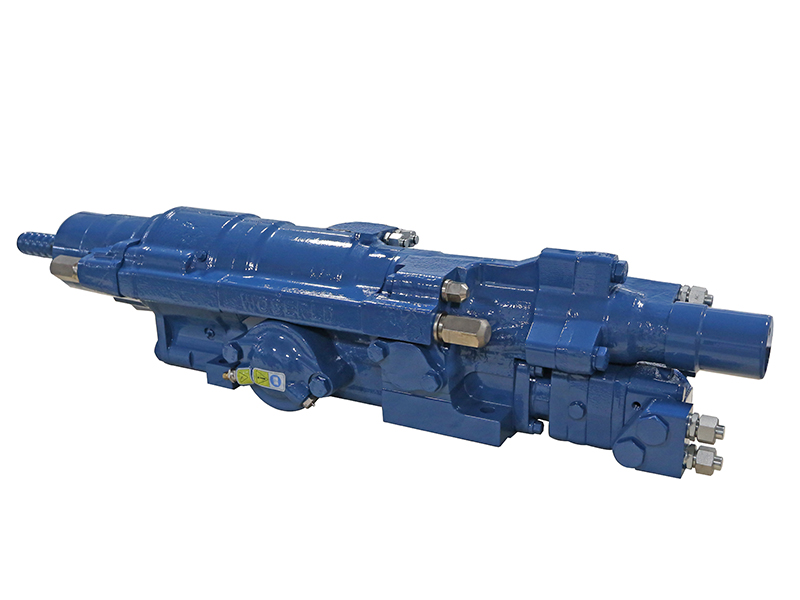

| Boom | Rock Drill WOSERLD | 1838ME 2238 |
| Feed Roll-over | 360° | |
| compensation mm | 1200 | |
| Carrier | Diesel Power KW | 60 |
| Articulated Steering | ±38° | |
| Tyre Size | 12.00-20 | |
| Rear Axle Swing angle | ±7° | |
| Clearance Axles / Outside Axles mm | 26°/19° | |
| Tramming Speed km/h | 13.0 | |
| Ground Clearance mm | 346 | |
| Service Brakes | Parking brake | |
| Fuel Tank Volume L | 60 | |
| Air system | Max Displacement L/s | 11.6 |
| Air Pressure Gauge Mpa | 0.8 | |
| Water system | Max Capacity L/min | 80 |
| Water Pressure Gauge Mpa | 2.5 | |
| Electric system | Total Installed Power KW | 83.5 |
| Voltage | 380V |
