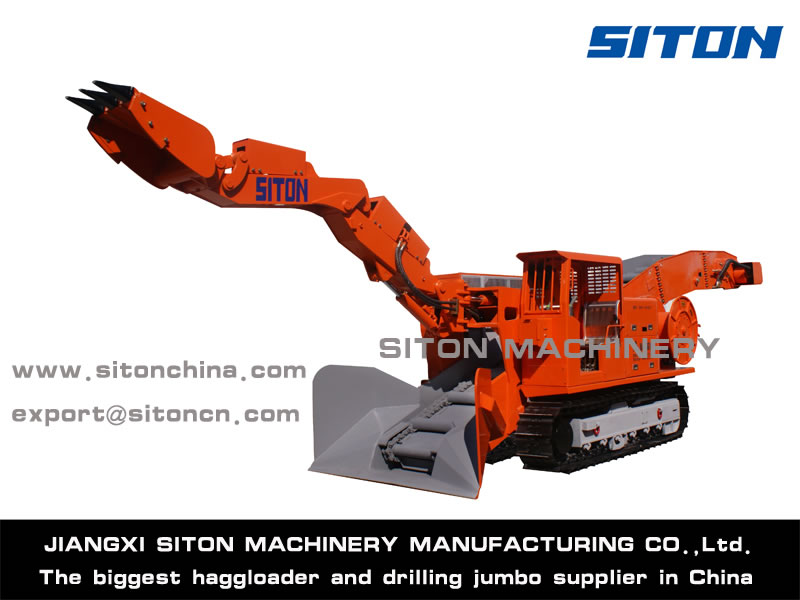

Siton LWLX-150 Muck Loader

Home » Products » Mucking loader » Crawler Mucking Loader » Siton LWLX-150 Muck Loader

Send Message

Mid-sized Crawler Mucking Loader Series

For Big Slope ≤32°

Main Overall Dimensions:

Item		LWLX- 150/55L
Crawler contacting ground length		2560mm
Crawler inner width		1360mm (Variable)
Crawler plate width		400/500mm
Ground clearance		350mm (Variable)
Conveyor inner width		780* 720mm
Dimensions during transport	Length	9500mm
	Width	2360mm
	Height	2450mm
Dimensions during operating	Length	11700mm
	Width	2360mm
	Height	2870mm

Working Range:

Item	LWLX- 150/55L
Digging width	6870mm
Digging distance (from dozer blade)	2957mm
Digging height	3563mm
Digging depth below ground level	915mm
Dumping height	2200mm (Variable)
Minimum dumpling height	1750mm (Variable)
Dumping distance	3170mm (Variable)
Max.boom angle	±55°
Adaptive tunnel dimension (Width× Height)	≥3.0×3.0m

Functional Parameters:

Loading ability	150m³/h
Potencia general	55kw
Weight	15300kg
Traveling speed	0.9± 1.8%m/s
Scraper chain	Double chains double motors/ Single chain double motors
Adaptive tunnel slope	≤32°
Min. turing radius	≥7m
Ground pressure	≤0.1Mpa
Steering	Hydraulic
Speed of scraper chain	39m/min
Volume of hydraulic tank	260L
Maximum working pressure	32Mpa
Hydraulic pump	Plunger pump×2 +gear pump×2
Walking hydraulic motor	Radial plunger motor ×2
Conveyor hydraulic motor	Radial plunger motor ×2

Diesel engine available on request.

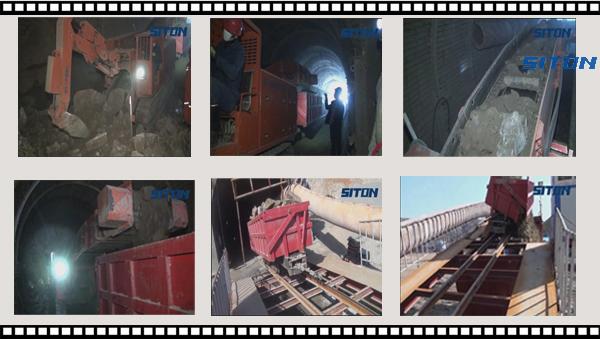

On site mucking loader with side dumping wagon

FAQ:

1.Will necessary spare parts be offered in time?

Normally we suggest customers to buy spare parts for at least 2 years of operation once they buy a new equipment. We will also deliver enough spare parts to our distributor in some countries.

2.How to solve the unusual faults during operation?

SITON will give prompt reply on how to repair the equipments within 24 hours once we receive the fault report. We can also send engineers to the site if necessary.

3.Does SITON offer training for operating and maintenance?

Customers can send their engineers to SITON for one week training and necessary accommodation will be offered free of charge. We will send engineers to the site for technical support if customers requires.
