Item

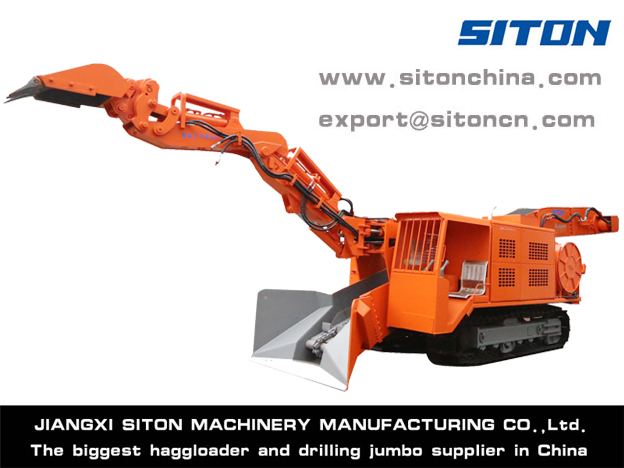

LWLX(C)- 100

Crawler contacting ground length

2407mm

Crawler inner width

941 mm ( variable )

Crawler plate width

350/ 450mm

Ground clearance

310mm (variable )

Max. rock conveying size

580X710mm

Dimensions during transport

Length

8100mm

Width

2200mm

Height

2100mm

Dimensions during working

Length

9700mm

Width

2200mm

Height

2600mm

Item

LWLX(C)- 100

A Digging width

5300mm

B Digging distance (from dozer blade)

1970mm

C Digging height

2940mm

D Digging depth below ground level

540mm

E Dumping height

1760mm (variable )

F Min. dumping height

1480mm (variable )

G Dumping distance

1700mm (variable )

H Max. boom angle

±55°

Adaptive tunnel dimension (Width x Height)

≥2.8x 2.8m

Loading ability

100m³/h

Potencia general

12200kg

Weight

45 kw

Traveling speed

1.8km/h

Scraper chain

Double chains double motors Single chain single motor

Adaptive tunnel slope

≤32°( Electrical ) ≤ 1 5°( Diesel )

Min. turning radius

≥5.5m

Ground pressure

≤0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

40m/min

Volume of hydraulic tank

240L

Max. working pressure

32Mpa

Hydraulic pump

Plunger pumpx2 Gear pump x2

Traveling hydraulic motor

Radial plunger motorx2

Conveyor hydraulic motor

Radial plunger motorx 1

Type

Cummins B 3.3-80

Aspiration

Charge air cooled

Rated power/RPM

80/2200 (HP/RPM)

Max. torque/ RPM

291/1600 (N • m/RPM)

Displacement

Tier3

Weight

245 Kg
