DW3-180 Three Booms Drilling Jumbo
Home » Products » Drilling Jumbo » DW3-180 Three Booms Drilling Jumbo
Main technical Data:

Item

Technical Data

Weight kg

51000

Overall dimension mm

16789*2926*3117 / 4917

Working scope (width×height) mm

16000x12580

Turning radius (mm)

outer>12000mm/inner>6300mm

Max.covering scope

180㎡

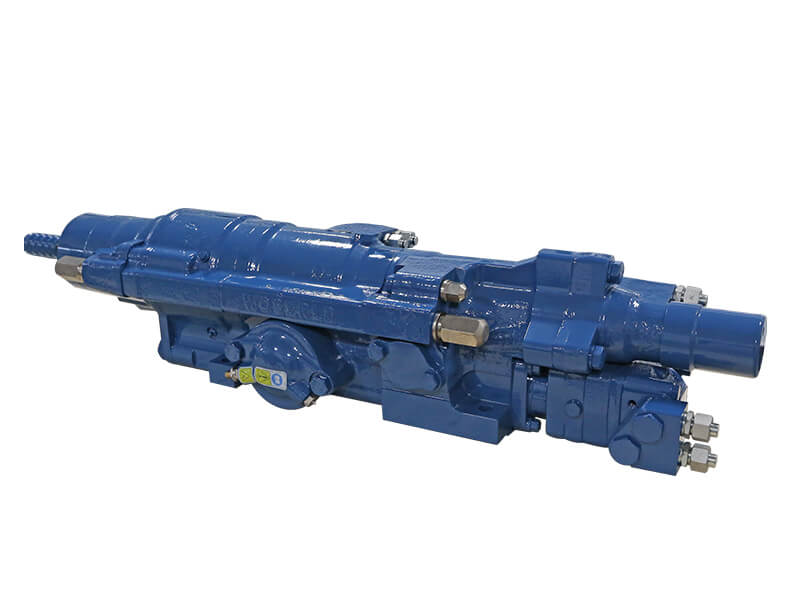

Rock drill

Model*Qty

1838ME*3(Standard)/ 2238*3(Optional)

System pressure (bar)

230

Impact power (kW)

20

Impact pressure (bar)

135

Impact frequency

47

Every impact power (J)

296-350

Rotation pressure (bar)

140MAX

Rotation torque (N·m)

730

Rotation speed (r/min)

175

Water flushing pressure (bar)

14

Drilling speed

0.8~2m/min

Weight (kg)

177

Drill boom

Model*Qty

TB 90x3

Control way

Hydraulic parallel moving

Single boom covering area

92㎡

Covering area

180㎡

Telescopic travel (mm)

1800

Swing and lifting angle (°)

Swing 45°, Up 60° Down 45°

Feed

Model*Qty

3×TF 109-18R(L)

Propel type

Propel cylinder+steel rope

Feed beam length (mm)

7390 (more length optional)

Propel travel (mm)

2607

Max.propel force (kN)

15 kN

Rill rod length (mm)

5525 (More length optional)

Hole diameter (mm)

φ45~φ102

One time drilling hole depth (mm)

5214 (More depth optional)

Max.hole depth of rod connection (m)

25 (According to real condition)

Rotation angle

±180°

Swing angle

-3°-95°

Service working platform

Model

TSP 3.0x1

Working scope (Length x width m)

16.6x11.6

Lifting force (KG)

400

Telescopic length

5000mm

Chassis

Model/Manufacturer

Z16.5

Traveling speed (km/h)

>16km/h

Climbing ability (%)

25

Ground clearance

315mm

Min.inner rotation radius (m)

6300

Min.outer rotation radius (m)

12000

Wheelbase of front and rear wheels (mm)

4400

front/rear wheelbase (mm)

2090/2340

front/rear wheel type*Qty

14.00R24x6

Diesel engine

Model/Manufacture

QSB6.7-C260-III (194kW@2400RPM)

Power (kW)

194

Emission standard

Stage III

Transmission system

Dana 32000

Braking system

SAHR Two way braking

Fuel tank volume (L)

150

Hydraulic system

System model

Z16.7

Hydraulic control way

Hydraulic pilot

Electric motor power(kW)×Qty

75x3

Main pump model/Manufacturer

A10VO140/Rexroth

Main pump rated pressure (bar)

230

Main pump displacement (L/min)

140

Auxiliary pump model/manufacturer

1162011011A/ Permco

Rated pressure of auxiliary pump(bar)

140

Auxiliary pump displacement (L/min)

45

Hydraulic oil tank volume (L)

650

Oil return accuracy

10 μm

Air system

Air compressor model Manufacturer

AP10-JXXT AE Zhongshan

Emission(m³/min) / pressure(bar)

1m³/min/8bar

Air consumption (L/min)

100

Oil consumption(g/min)

6

Water system

Water pump model /Manufacturer

CDLF8-14/ Nanyang pump

Water pump power (kW)

5.5

Rated emission (L/min)

130

Rated pressure (bar)

14

Pressure during drilling (bar)

14

Cable reel

Electric motor power of cable reel (kW)

Hydraulic

Cable length (m)

100m

Electric system

Main electric component model/Manufacturer

Z16/Schneider

Total input power (kW)

238

Voltage(V)/ Frequency(Hz)

380V/50

Cable length and cable reel capacity

100m

Start way

Star/Delta start

System functions of safety protection

Overload, over-current, under voltage, over-voltage, under current, short circuit, phase loss and leakage

Control panel type

Manual+concentrated button

Power supplier of electronics system

Low voltage

Drill boom control type

Hydraulic parallel moving

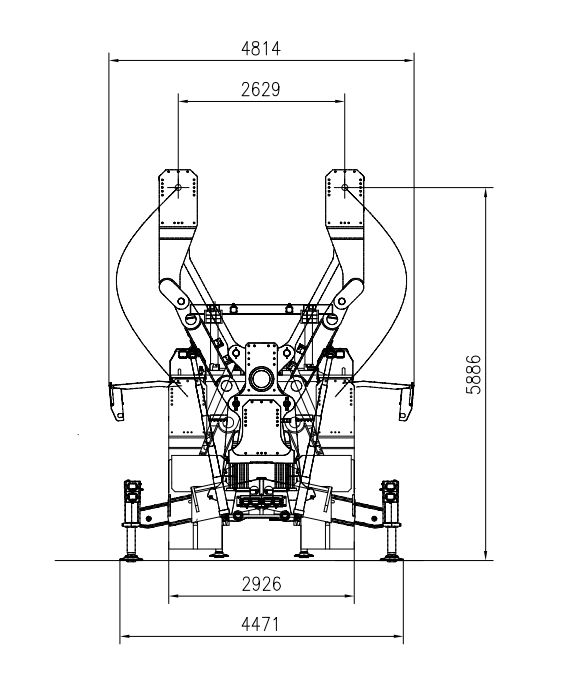

Drawing:

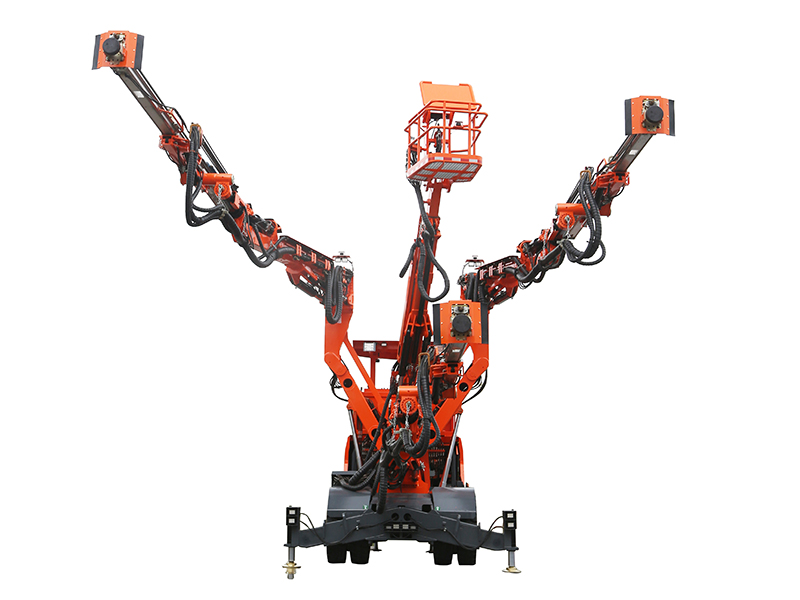

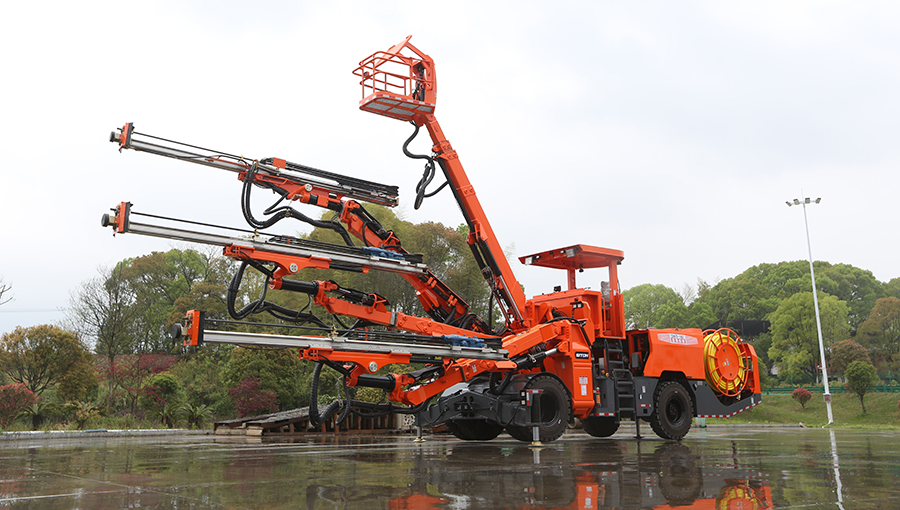

Product Show:

Machines for underground mining project:

Machines for tunnel project:
