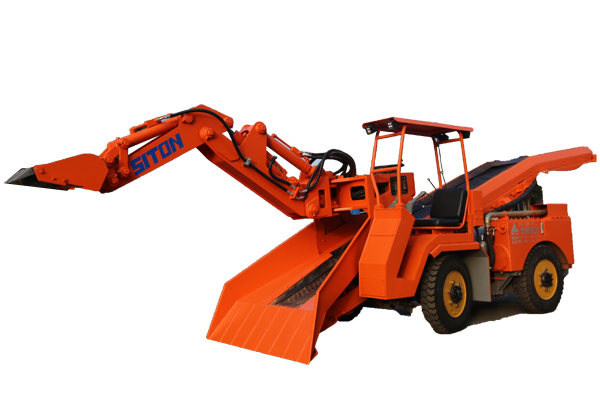

LWT-80 Wheel Mucking Loader
Home » Products » Mucking Loader » Wheel Mucking Loader » LWT-80 Wheel Mucking Loader


Dual Power Wheel Mucking Loader

Advantages of LWT-80 Wheel Mucking Loader:

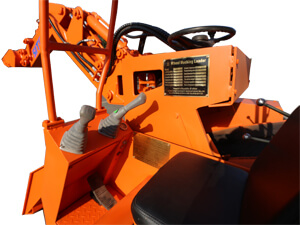

1. Smart pilot control operating system.

2. Reliable travel system, diesel for travel.

3. Motor control conveying system.

4. Above big arm cylinder design avoiding collision with mucking rocks.

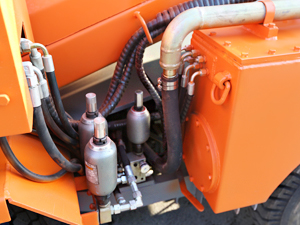

5. Efficient hydraulic control system powered by electric.

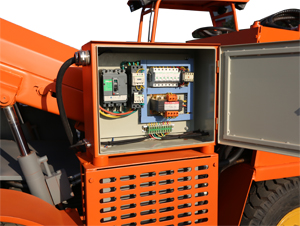

6. Secure safe electrical cabinet.

7. Wearable conveying board.

8. Foldable conveyor.

Technical Data of LWT-80 Wheel Mucking Loader:

Specification

Unit

Data

Whole Weight

kg

≈5300

Loading capacity

m3/h

≈80

Drive

Dual power Electrical motor working, diesel traveling

Digging width

mm

≤4400

Digging height

mm

≤2260

Digging depth (below ground level)

mm

≤445

Unloading height

mm

1650

Unloading distance

mm

1405

Traveling speed

Km/h

3.4/1.7

Max climbing ability

(°)

≤15 (Hard Ground)

Rated working gradient

(°)

≤5

Minimum turning radius

m

5.2

Conveyor speed

m/s

0.85-1

Rated working pressure

Mpa

14

Ground clearance

mm

≥170

Power of electric

kw

18.5

Power of diesel engine

kw

20

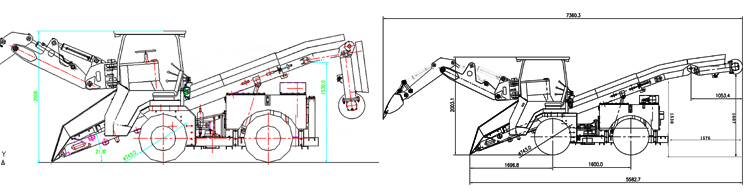

Dimensions (transporting)

Length

mm

5500

Width

mm

1800

Height

mm

2000

Dimensions (working)

Length

mm

7380

Width

mm

1800

Height

mm

2000

LWT-80 Wheel Mucking Loader
LWT-80 Wheel Mucking Loader
