Description of Single Boom Jumbo:

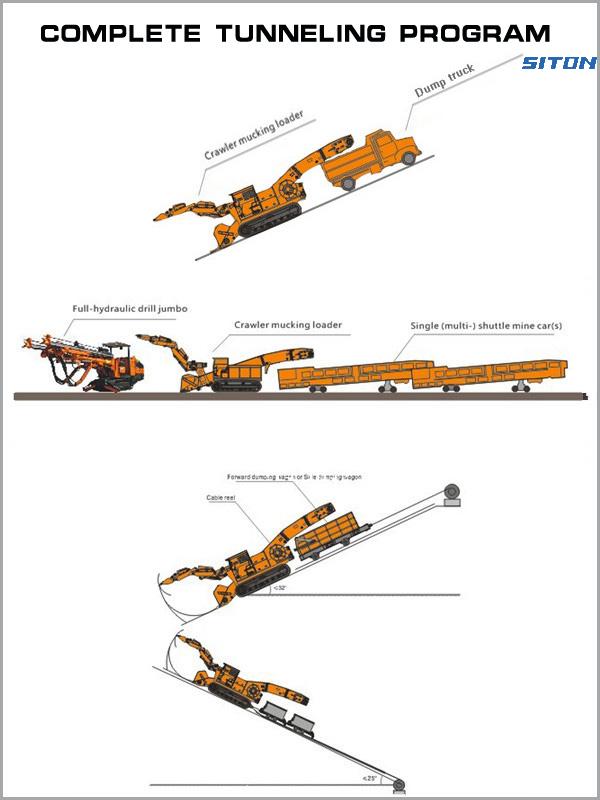

The single boom jumbo, also called single boom underground drilling jumbo, is mainly applied in tunneling construction of mining, metallurgy, water and electricity, railway, highway engineering, etc. It can work on face of the tunnel, roof, side and floor. In addition, the single boom jumbo can not only drill the blast hole, but also drill the bolt hole easily.
1. The single boom jumbo, owning a drilling speed of 0.8-2 m/min, can work with high efficiency.
2. The single boom underground drilling jumbo has an advanced hydraulically controlled drilling system which is safe and simple to operate. The system incorporates the auto stop and anti-jamming function, which make sure that the machine can stop automatically at the end-point and wash itself automatically.
3. This drilling jumbo can walk flexibly with direct diesel drive which can transport materials at a long distance.
4. The single boom jumbo has a low center of gravity, great mobility and remarkable stability. It is specially suit for the tunnels of small section.
| Type | DF10-1BD | DF10A-1BD | DF30-1BD |
| Drill speed (m/min) | 0.8-2 | 0.8-2 | 0.8-2 |
| Drill rod length (m) | 2.475 | 2.475 | 3850 |
| Hole diameter (mm) | 27- 45 | 27 - 45 | 32-102 |
| Hole depth (once) (m) | 2.1 (standard) | 2.1( standard) | 3.5 (standard) |

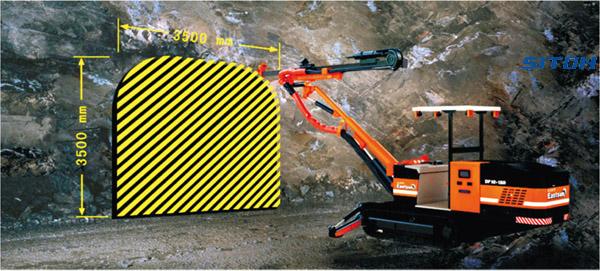

| Cross section W×H (m×m) | 2 × 2 - 3.5 × 3.5 | 2 × 2- 4 × 4 | 2.5 × 2.5 – 6 × 6.5 |
| Traveling speed (km/h) | 2.5 | 2.5 | 2.5 |
| Climbing capability % | 25 | 25 | 14 |
| Rock drill number and type | 1×HYD200 | 1×HYD200 | HYD300×1 |
| Overall dimensions L×W×H (m) | 6.5×0.9×1.5 | 7×0.9×1.5 | 11.2×1.65×2.8 |
| Motor power (kw) | 30 | 30 | 55 |
| Total weight (kg) | 6300 | 6500 | 12000 |
| Boom number and type | 1×ZB2.4 | 1× ZB2.9 | |
| Up/down (°) | 55/16 | 55/16 | 55/16 |
| Swinging angle inner/outer (°) | 31/31 | 31/31 | 35/35 |
| Extension (m) | 1.5 | 1.5 | 1.5 |
| Rotation angle (°) | 180/180 | 180/180 | 180/180 |
| Impeller number and type | 1×TJ2.1 | 1×TJ2.1 | 1×TJ2.1 |
| Up /down (°) | 105/15 | 105/15 | 105/15 |
| Pivot angle (left/right) (°) | 45/45 | 45/45 | 45/45 |
