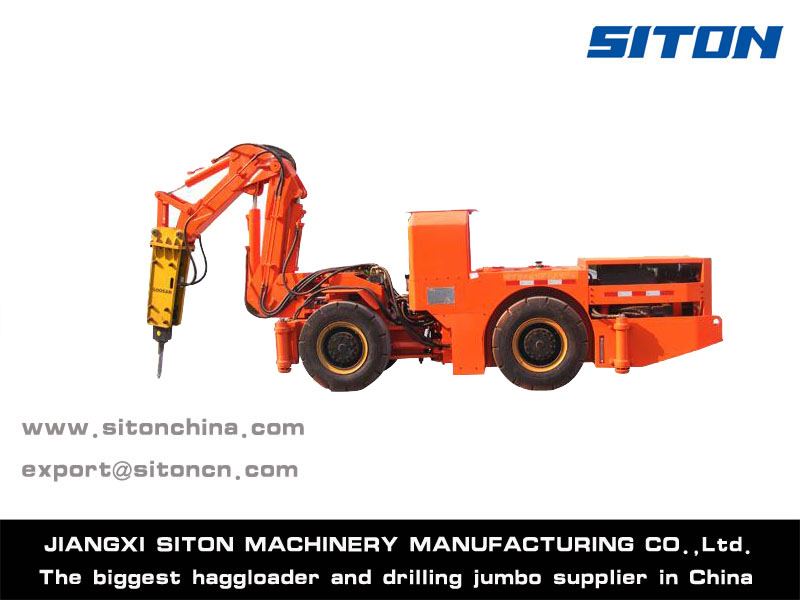

Rock Breaker XYSJ-400
Tehnical Specifications of Rock Breaker XYSJ-400:
Driving system adopts full hydraulic control and make operation more flexible and less failure rate.
Working system adopts pilot hydraulic control to enable operation more simpler and work more efficiency.
SAHR brake (Spring applied hydraulic control).
Rear drive axle adopts double support swinging rack and lees failure rate.
Oil cylinder with four legs can independently control, easily locate the position in different working situation and adjust vehicle level.
Technical Parameters of Rock Breaker XYSJ-400:
Item |
Unit |
XTSJ- 400 |
|
Weight |
Kg |
8900 |
|
Dimensions |
Length |
mm |
6945 |
Width |
mm |
1568 |
|
Height |
mm |
2000 |
|
Breaking |
Impact Rate |
Bpm |
540-1260 |
Tool Shank Dia. |
mm |
95 |
|
Max. Breaking Height |
mm |
1300 |
|
Max. Breaking Width |
mm |
5790 |
|
Ground Clearance |
mm |
200 |
|
Swing Angle |
° |
40 |
|
Engine |
KW |
Deutz 45KW |
|
Fuel Tank |
L |
45 |
|
Converter |
|
Hydraulic Travel Motor |
|
Gearbox |
|
||
Axles |
|
||
Braking system |
|
Wheel Reductor |
|
Max. Climbing ability |
% |
25 |
|
Tyres Size |
|
8×R20 |
|
Pump |
|
Radial Pump |
|
Hydraulic oil tank |
L |
120 |
|
Driving |
Ist Gear |
Km/h |
10 |
2nd Gear |
Km/h |
||
3rd Gear |
Km/h |
||
Turning |
Inner |
mm |
2540 |
Outer |
mm |
4500 |
|
Departure Angle |
° |
15 |
|
Rear Axle Swing Angle |
° |
±8 |
|
Remark: Our Company reserves the right that we'll revise the technical parameter and the fuction establishment if product upgrade.
