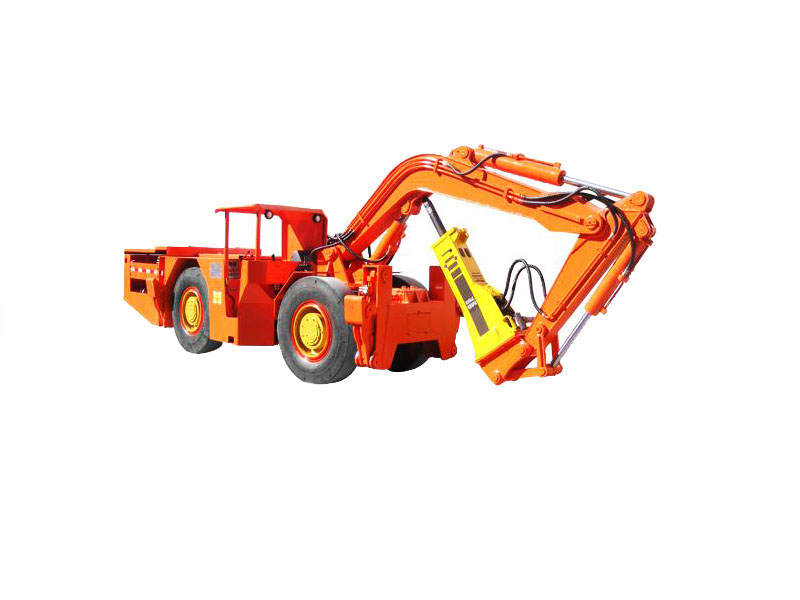

Rock Breaker XYSJ-500
Tehnical Specifications of Rock Breaker XYSJ-500:
Adopts America DANA torque converter and power shift transmission.
Working system adopts hydraulic applied spring released.
Parking brake adopts spring applied hydraulic released.
Front drive axle adopts America No-spin differential.
Rear drive axle adopts double support swinging rack and lees failure rate.
Oil cylinder with four legs can independently control, easily locate the position in different working situation and adjust vehicle level.
Technical Parameters of Rock Breaker XYSJ-500:
Item |
Unit |
XTSJ- 500 |
|
Weight |
Kg |
14500 |
|
Dimensions |
Length |
mm |
8600 |
Width |
mm |
2059 |
|
Height |
mm |
2650 |
|
Breaking Hammer |
Impact Rate |
Bpm |
350- 650 |
Tool Shank Dia. |
mm |
125 |
|
Max. Breaking Height |
mm |
1100 |
|
Max. Breaking Width |
mm |
5200 |
|
Ground Clearance |
mm |
236 |
|
Swing Angle |
° |
38 |
|
Engine |
KW |
Deutz 63KW |
|
Fuel Tank |
L |
60 |
|
Converter |
|
DANA |
|
Gearbox |
|
DANA |
|
Axles |
|
DANA |
|
Braking system |
|
Multi Disc Wet |
|
Max. Climbing ability |
% |
25 |
|
Tyres Size |
|
10×R25 |
|
Pump |
|
Radial Pump |
|
Hydraulic oil tank |
L |
150 |
|
Driving |
Ist Gear |
Km/h |
4.4 |
2nd Gear |
Km/h |
10.7 |
|
3rd Gear |
Km/h |
19.4 |
|
Turning |
Inner |
mm |
2750 |
Outer |
mm |
5200 |
|
Departure Angle |
° |
15 |
|
Rear Axle Swing Angle |
° |
±8 |
|
Remark: Our Company reserves the right that we'll revise the technical parameter and the fuction establishment if product upgrade.
