Mine Scaler XYQMS-200
Home » Products » Mine Scaler » Mine Scaler XYQMS-200

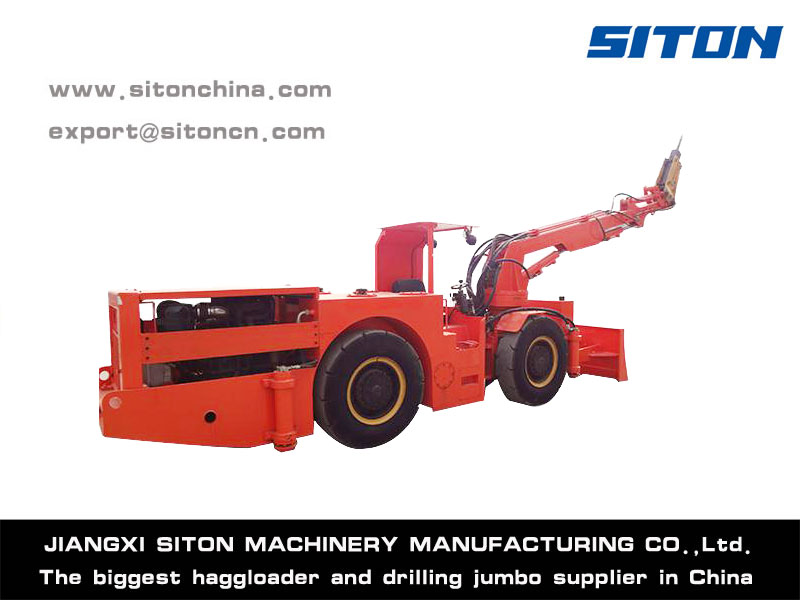

Mine Scaler XYQMS-200
Technical Specifications of Mine Scaler XYQMS-200:

Assembled with imported German internal combustion engine BF4L2011.

Rear drive axle adopts double supports oscillating axle and greatly decrease the failure rate.

Working system adopts hydraulic pilot-operated control to make operation easier and lower the fault rate.

Braking system use multi fraction plates, spring fully closed, not be affected by the environment, make it more reliable.

Machine with supported leg, stable during working.

Front clear device can clean the road when moving, and protect the tire.

Hammer is equipped with water gun, wash the dust and improve the working environment.

Technical Parameters of Mine Scaler XYQMS-200:

Working Oil Pressure

13-15 Mpa

Min. Turning Radius

4320mm (Outer)
2530mm (Inner)

Hammer Percussive Frequency

900-1100bpm

Max. Operation Scope

6240mm(Height)
9800mm(Width)

Drill Rod Diameter

ø 68mm

Max. Steering Angle

±38°

Max. Traction

56kN

Min Ground Clearance

200mm

Running Speed

0-10km/h

Rear Drive Axle Swing Angle

±8°

Max. Climbing Ability

20°

Weight (Including Hydraulic Oil)

9.2t

Arm Swing Angle

170°

Dimensions

Length (transport) 7485mm
Width 1570mm
Height (transport) 1940mm
