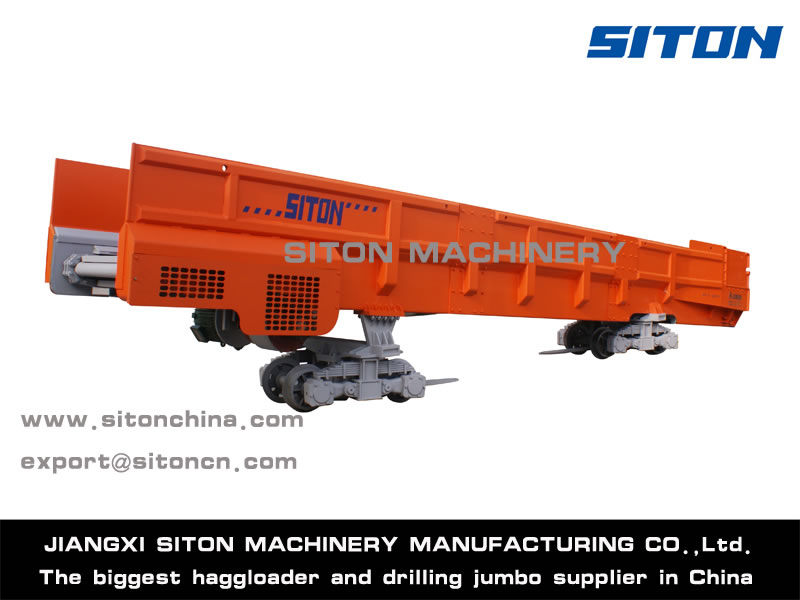

Heavy-Duty Shuttle Mining Car
Description of Heavy-Duty Shuttle Mining Car:

The underground Shuttle Mining Car is heavy-duty Shuttle Mining Car especially suitable for tunneling dimension from 3.4m×3.4 m to 5m ×6m. It is designed to support high-capacity continuous miners and roadheaders.

The underground Shuttle Mining Car of heavy-duty designed is mainly used to receive, transport, and discharge the cut material easily, quickly, and efficiently for mining coal project. With powerful 4-wheel variable-frequency drive, infinitely variable transmission, 4-wheel steering, very short turning radius, 18-metric-ton capacity and quick discharge time, this coal mining Shuttle Mining Car is fast, highly maneuverable and extremely productive partners.

More about Siton:

To provide full range of tuneling solution, we mainly provide customers underground machines including mucking equipment, tunnel excavating equipment and mining haulage equipment. We establish business relationship with customers from Canada, India, Kazakhstan, Vietnam, Morocco, Algeria, Laos, Nepal, etc. If you need heavy-duty Shuttle Mining Car for your mining projects, please don't hesitate to contact us.

Technical Parameters:
Model Unit Main Parameters
ST-12 (B) SD-12 (B) ST-14 (B) SD-14 (B) ST-16 (B) SD-16 (B) ST-20 (B) SD-20 (B) ST-25 (B) SD-25 (B) ST-30 (B) SD-30 (B) ST-40 (B) SD-40 (B)
Capacity m3 12 14 16 20 25 30 40
Loading ability T 24 28 32 40 53 55 75
Weight T 12/ 12.3 12.6/ 12.9 17.5/ 17.8 19.4/ 19.84 26.12/ 26.3 28.8/ 29.3 37.5
Track gauge mm 600/ 762/ 900 600/ 762/ 900 600/ 762/ 900 600/ 762/ 900 600/ 762/ 900 762/ 900 762/ 900
Loading height mm 1400/ 1320 1445/ 1380 1480/ 1420 1590/ 1800 1769/ 1544 1730/ 1650 1850
Unloading time min -2 -2 -2 -2.5 -6.5 -4 -5
Minimum turning S Model m 15 15 18 20 30 30 35
radius SD Model m 22 22 25 30 30 50 50
Max. walking speed Km/h 20 20 20 20 20 20 20
Electric motor model YBI2/18.5-8 YBI2/18.5-8 YBI2/18.5-8 YH (or YBK2) 200L2-6B3 YH (or YB) 225M-8/B5 YH (or YBK2) 225M-6B5 YH (or YBK2) 250M-8B5
Electric Motor power 660/380v kw 18.5 (YBI) 18.5 (YBI) 18.5×2 (YBI) 2×22 (YBK2) 200L2/ 6/B3 2×22 (YBK2) 225M- 8/B5 2×30 (YBK2) 225M- 8/B5 2×30 (YBK2) 250M- 8/B5
1140/ 660v 18.5 (YBK2) 18.5 (YBK2)
30 (YBK2) 30 (YBK2)
Overall Dimension (L×W×H) S Model mm 10500/ 1710/ 1700 11255/ 1710/ 1800 12940/ 1670/ 1840 12960/ 1800/ 2400 14130/ 1740/ 2750 19500/ 1800/ 2750 22500/ 1800/ 3100
SD Model mm 10500/ 1710/ 2200 11255/ 1710/ 2370 12940/ 1670/ 2400 12900/ 1800/ 2700 16216/ 1760/ 3250 19500/ 1800/ 2980 22500/ 1800/ 3250
Steel track Kg/m ≥18 ≥18 ≥24.33 ≥33.43 ≥33.43 ≥38.43 ≥43.50
Adaptive tunnel dimension (W×H) M2 ≥3.4×3.4 ≥3.4×3.4 ≥4×4 ≥4×4.5 ≥4.2×4.5 ≥5×5.5 ≥5×6
