DL3-b Underground Production Drilling Rig for Mine and Tunnel
Home » Products » Production Drilling Rig » DL3-b Underground Production Drilling Rig for Mine and Tunnel
DL3-b Underground Production Drilling Rig for Mine and Tunnel:

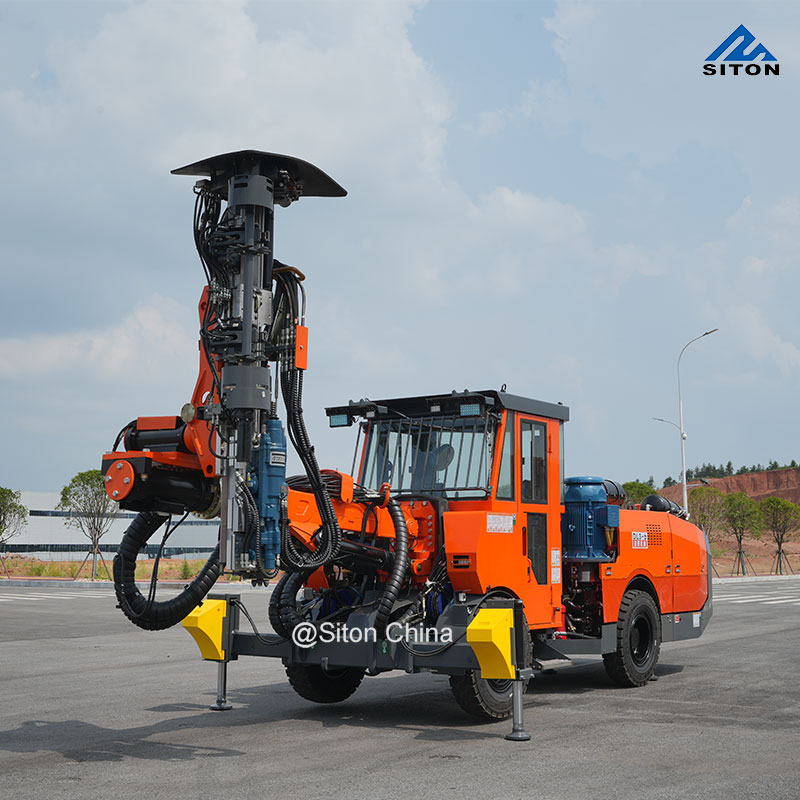

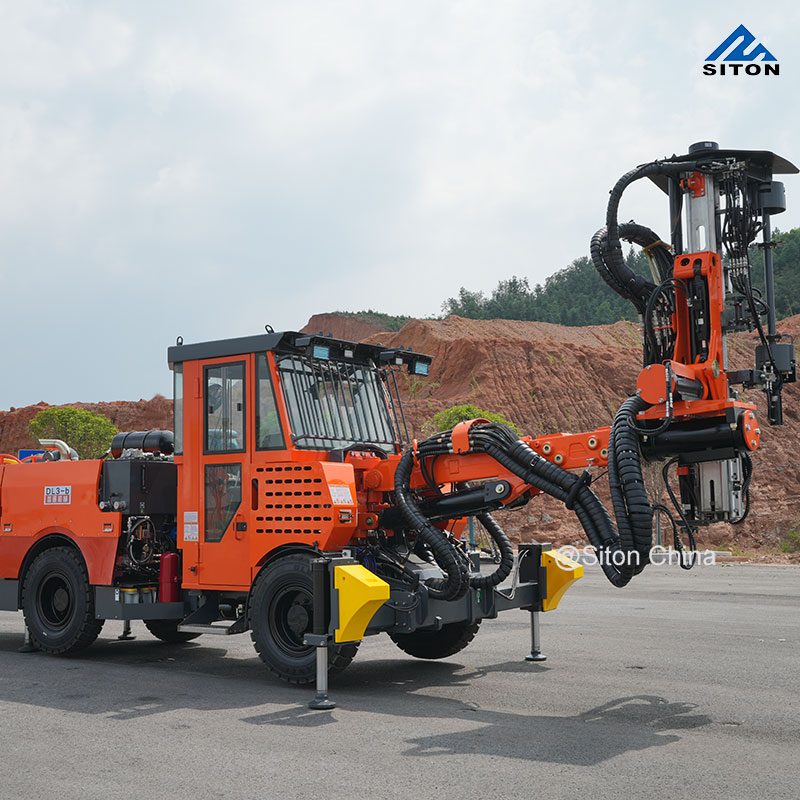

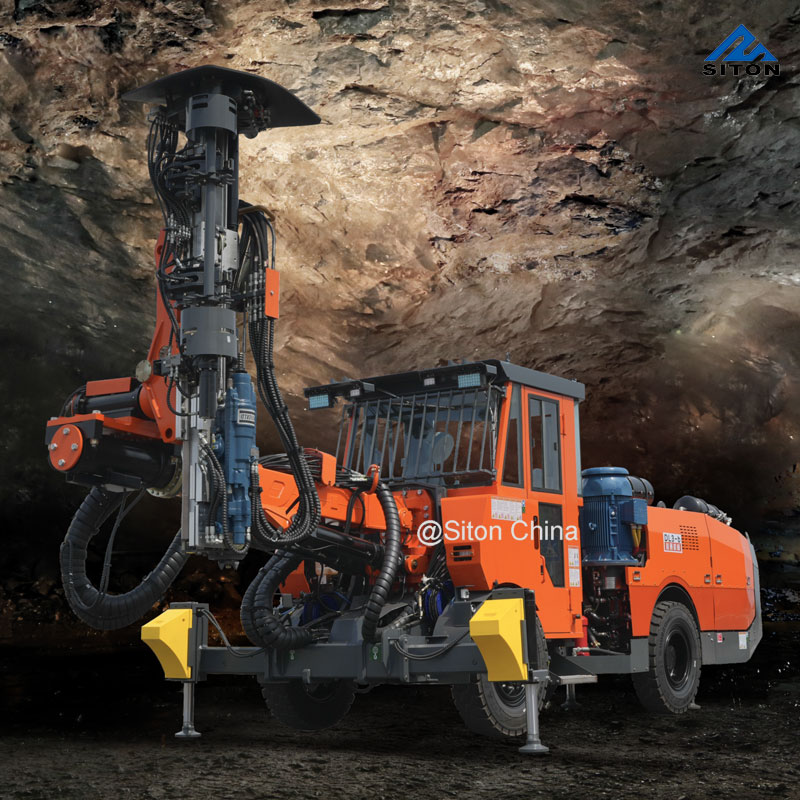

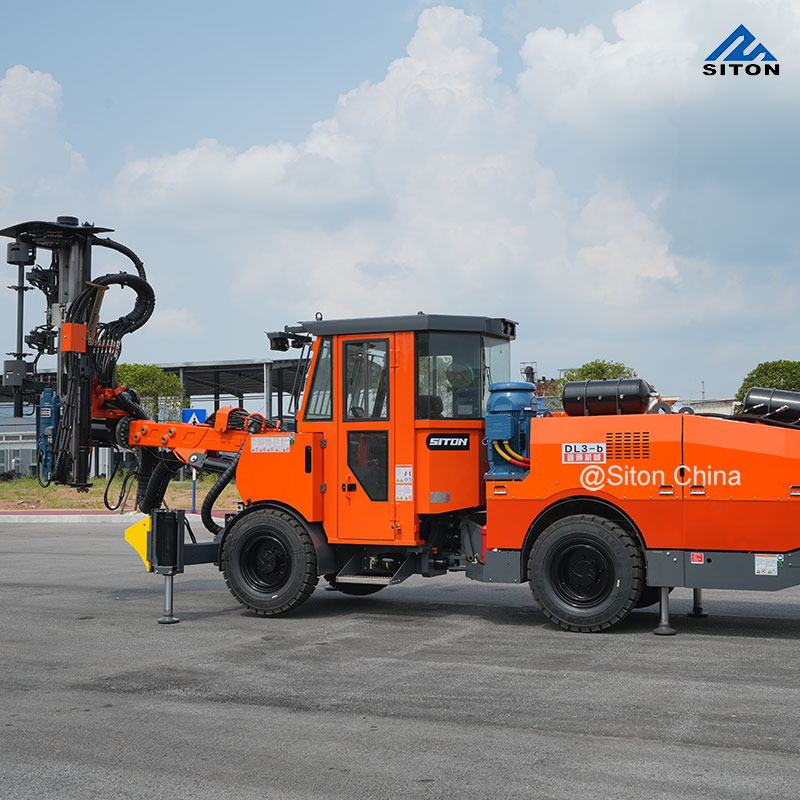

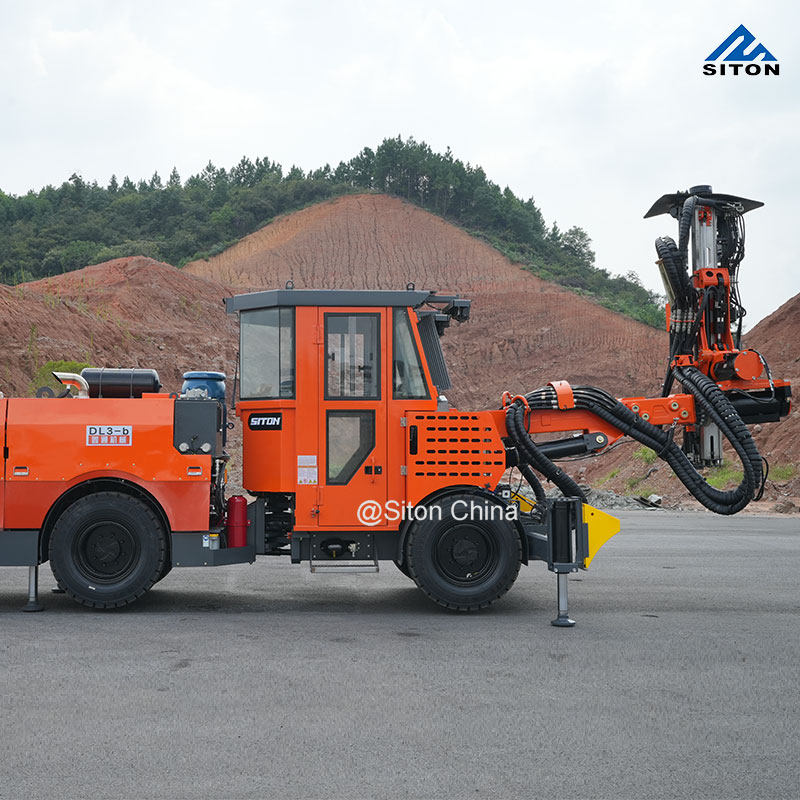

DL3-b hydraulic mining drilling rig is a cantilever type deep hole mining production drilling rig, which is specially designed for long-hole drilling in underground mines or tunnels. It is often used for doing parallel and fan-shaped holes in underground non-coal mine mining, and it can also do anchor holes. It adopted full hydraulic rock drilling. It can drill a hole of 20 meters depth once a time, and the hole diameters of 64/76/89mm can be chosen. All diesel power for walking, Articulated chassis, four-wheel drive, climbing up to 14° slope, to meet with the flexible transition between roadways.


Parameters of DL3-b Production Drilling Rig:
Model No.DL2-NbDL2 DL2-hsDL3-b
Main Information

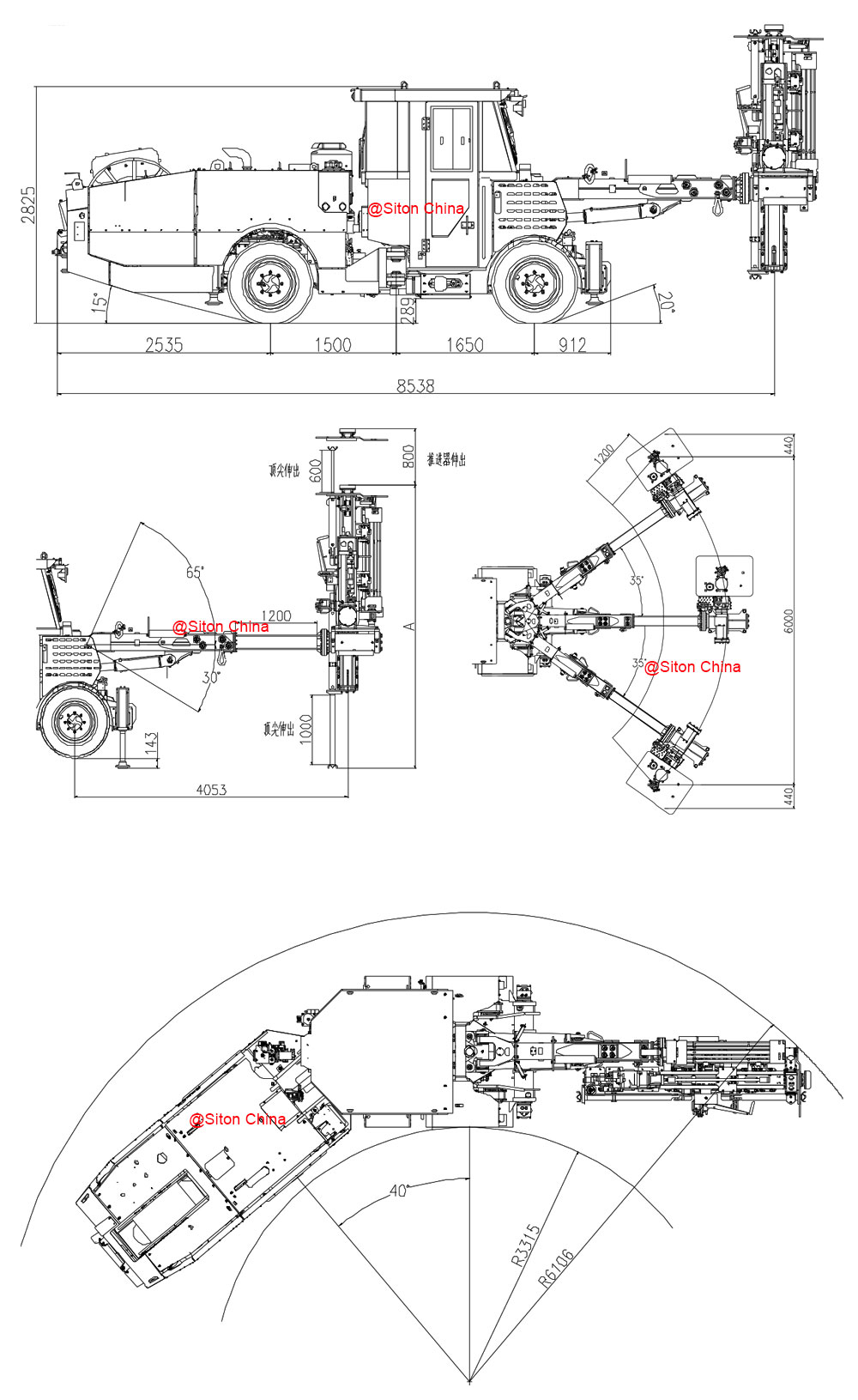

Dimension (mm*mm*mm)8195X1390X (1880/2580)(7006/7783) X1600X (2080/2780)8430X1600X291310121X2050X2815
Weight (KG) 900011500 13500 15600
Turning Radius (mm) 2463/5072 2805/4841 3341/5811 3315/6106
Working Area (m*m)2.8X2.8-4.3X4.3 3X3-4.5X4.3 4X5.5 (Max) 3.5X3.5-5X5
Drill Rod Length (mm) 915/1220/1525 1220/1525 915/1220915/1220/1525/1830
Hole Diameter (mm)φ64-89φ64-89φ64-89φ64-76
Hole Depth (mm) 1500/1900/25001330/1550/1810/1960 2600/3480 1300/1630/1970/2300
Electrical System
Main Motors Power (kW)55557575
Voltage (V) CustomizedCustomizedCustomizedCustomized
Electrical Cable Volume (m) 55807090
Hydraulic System
Max. System Pressure (Bar)230 230 230 230
Filtration Accuracy (μm)10101010
Engine Rated Power (kW) 5856.554/
Walking Speed (Km/h)8 107 14
Climbing Ability (degree °) 14141414
Rock Drill
Shank T38 T38/T45/T51 T38/T45/T51 T38/T45/T51
Drilling Diameter (mm)33-76 33-11564-11564-115
Max. Impact power (kW)1818/25 18/25 18/25
Impact Frequency (HZ) 6044/60 44/60 44/60
