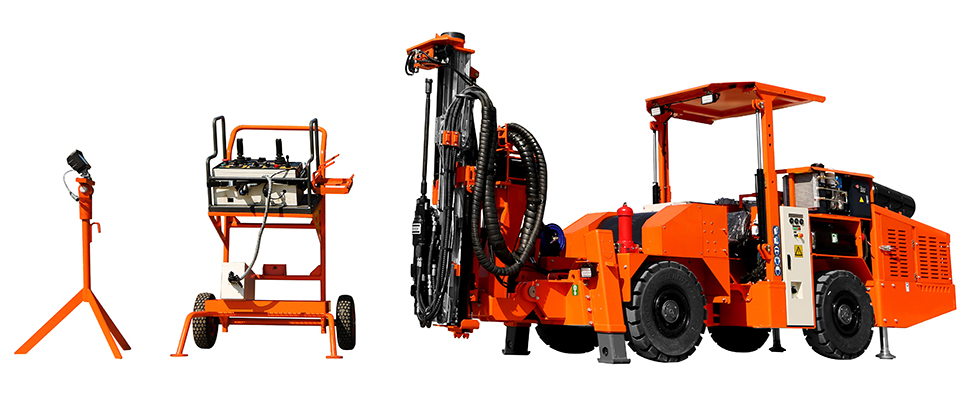

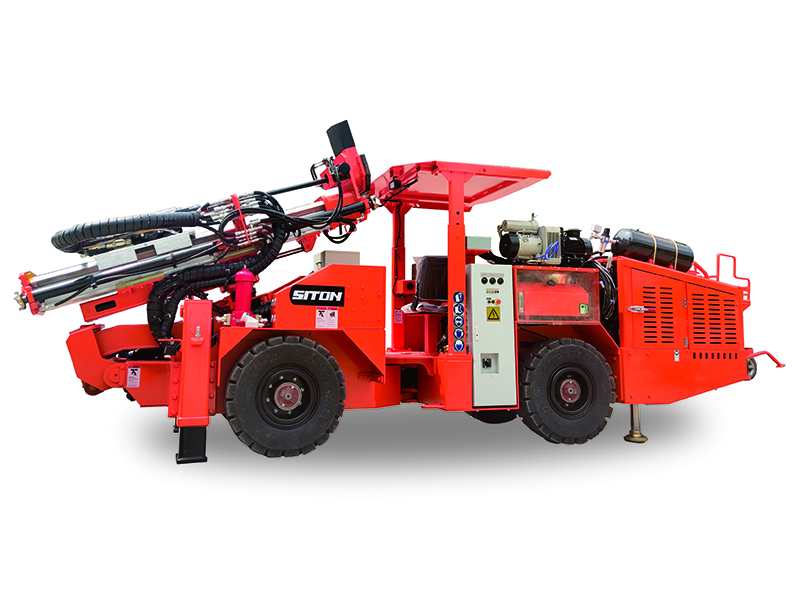

DL2 Production drilling rig for mining is especially suitable for long hole rock drilling in Pillarless segmented mining. The drilling hole diameter is 64-89mm. The drilling hole depth is 30 meters.
Item | DL2 | |

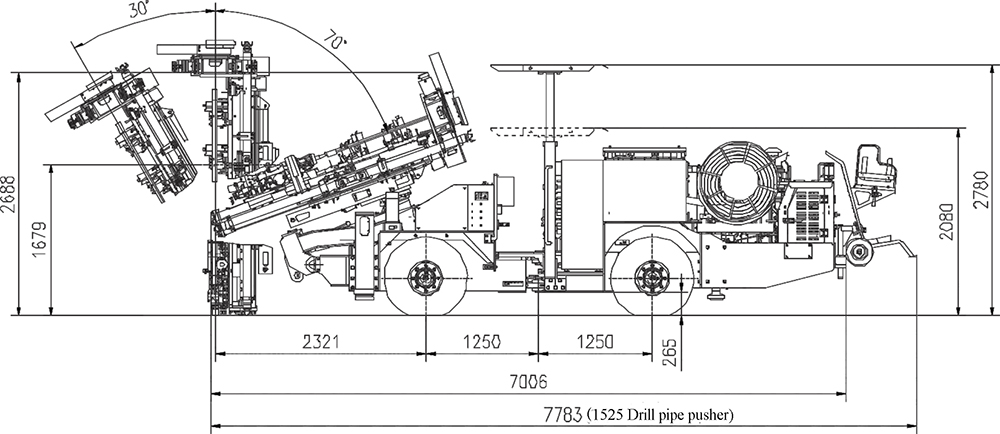

Complete machine | Overall Dimension (L*W*H)mm | 7006(7783)*1600*2080(2780) |

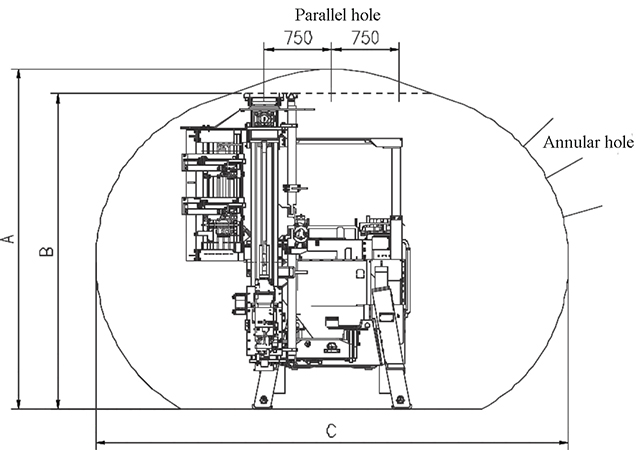

Coverage Area (W*H) m | 3*3-4.5*4.3 | |
Hole Diameter mm | φ64-76/76-89 | |
Drill Steel Length mm | 1220 1525 | |
Hole Depth m | 13.3/15.5 18.1/19.6 | |
Drill Speed m/min | 0.5-2 | |
Main Motors KW | 55 | |
Hydraulic Oil Tank, Volume Max L | 165 | |
Total Weight kg | 11500 | |

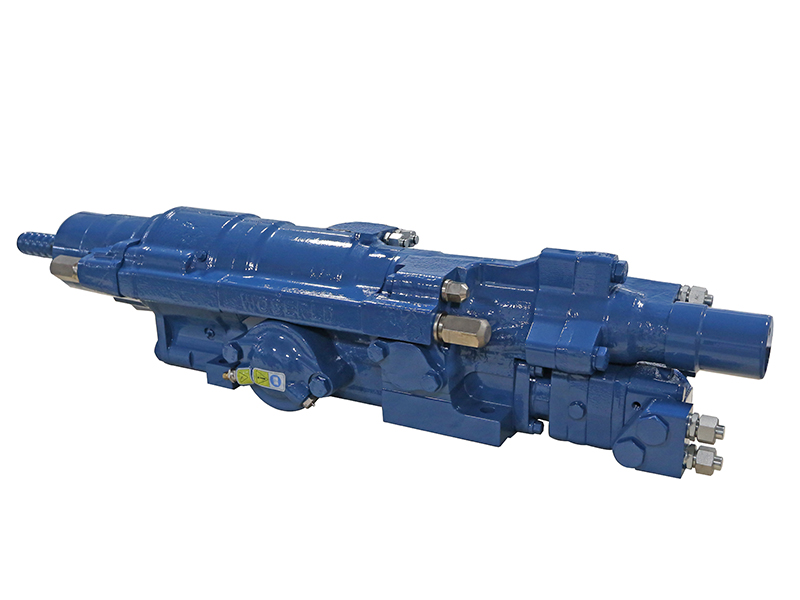

Boom | Rock Drill WOSERLD | 1838ME |
Feed Roll-over | 360° | |
compensation mm | 850/1155 | |
Carrier | Diesel Power KW | 56.5 |
Articulated Steering | ±38° | |
Tyre Size | 10.00-15 | |
Rear Axle Swing angle | ±7° | |
Clearance Axles / Outside Axles mm | 20°/15° | |
Tramming Speed km/h | 9.5 | |
Ground Clearance mm | 265 | |
Service Brakes | Parking brake | |
Fuel Tank Volume L | 60 | |
Air system | Max Displacement L/s | 11.6 |
Air Pressure Gauge Mpa | 0.8 | |
Water system | Max Capacity L/min | 80 |
Water Pressure Gauge Mpa | 2.5 | |
Electric system | Total Installed Power KW | 63.5 |
Voltage | 380V |
