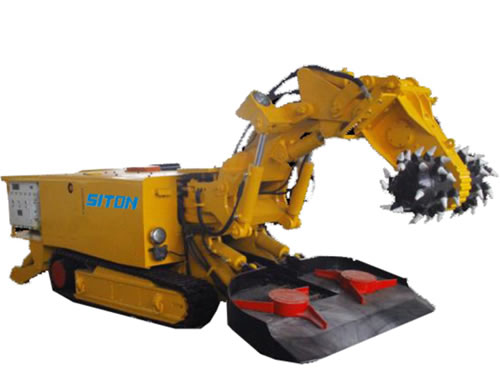

EBZ260H Crawler Roadheader
Home » Products » Drilling Jumbo » Mucking Roadheader » Crawler Roadheader » EBZ260H Crawler Roadheader
Specification of EBZ260H Crawler Roadheader:
| Item | Technical Parameters |
| Outline dimension | 10.77× 3.2× 1.83 m |
| Cutting scope | 5.0m(H)× 5.8m(W) |
| Ground clearance | 210mm |
| Working gradient | ±160 |
| Ground pressure | 0.17Mpa |
| type of dust suppression | Inner and Outer |
| Form of cutter | Pickaxe |
| Motor power of hydraulic system | 125KW |
| planet gear type | Four tooth |
| Chain of transport speed | 62m/min |
| Walking brake | A body with multi-piece |
| Fuel tank capacity | 700L |
| Hydraulic system pressure | 22 MPa |
| Most not detachable dimension | 3.39m(L)× 1.39m(W)× 1.47m (H) |
| Total weight | 78t |
| Dinting depth | 270mm |
| Height of grantry | 430mm |
| Economic cutting hardness | ≤90 Mpa |
| cutting head speed | 46r/min |
| inner water spray working pressure | 3.0 Mpa |
| cutting motor power | 260KW |
| planer gear speed | 26r/min |
| Loading ability | 4.5m3/min |
| Walking speed | 0-5.3m/min |
| Tight type of traveling part | Tighten by fuel tanks and lock by cards plate |
| supply voltage | AC1140V |
| hydraulic pump | A11VO145/ 145 |
