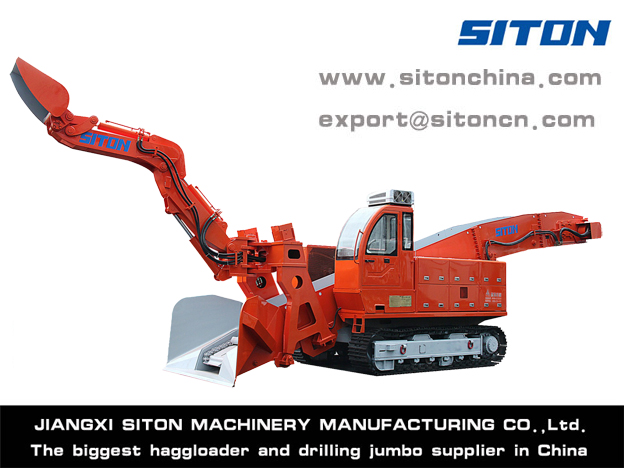

LWL-180/75L Special Crawler Mucking Loader for Open Pit
Home » Products » Mucking loader » Crawler Mucking Loader » Special Models Crawler Mucking Loader » Open Pit Mucking Loader » LWL-180/75L Special Crawler Mucking Loader for Open Pit
Special Crawler Mucking Loader for Open Pit
Main Overall Dimension:
Item |
LWL- 180/75L |
|
Crawler contacting ground length |
2827mm |
|
Crawler inner width |
1350mm (variable ) |
|
Crawler plate width |
500/ 600mm |
|
Ground clearance |
380mm (variable ) |
|
Max. rock conveying size |
820X 970mm |
|
Dimensions during transport |
Length |
13088mm |
Width |
2350mm |
|
Height |
2500mm |
|
Dimensions during working |
Length |
14500mm |
Width |
2350mm |
|
Height |
3500mm |
|
Working Range:
Item |
LWL- 180/75L |
A Digging width |
7030mm |
B Digging distance (from dozer blade) |
3000mm |
C Digging height |
4635mm |
D Digging depth below ground level |
990mm |
E Dumping height |
2693mm ( variable ) |
F Min. dumping height |
1970mm ( variable ) |
G Dumping distance |
5123mm (variable ) |
H Max. boom angle |
±55° |
Functional Parameters:
Loading ability |
180m3/h |
Potencia general |
75kw |
Weight |
21500kg |
Traveling speed |
2.0km/h |
Scraper chain |
Double chains double motors Single chain double motors |
Adaptive tunnel slope |
≤32° |
Min. turning radius |
≥8m |
Ground pressure |
≤0.1 Mpa |
Steering |
Hydraulic |
Speed of scarper chain |
44m/min |
Volume of hydraulic tank |
400L |
Max. working pressure |
32Mpa |
Hydraulic pump |
Plunger pumpx2 Gear pump x1 |
Traveling hydraulic motor |
Radial plunger motor x2 |
Conveyor hydraulic motor |
Radial plunger motor x2 |
