LWLX-60 Crawler Muck Loader
LWLX-60 Crawler Muck Loader
Technical Features of LWLX-60 Crawler Muck Loader:

Full hydraulic system powered by electric motor.

Dumping height and distance of conveyor can be custom design.

Special model for big slope tunnel, max. gradient of working is 32 degrees.

The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max, fatigue strength.

The electro-hydraulic drive provides low installa- tion and energy cost, and maintains good air quality.

The mucking loader is controlled by hydraulic pedals and joysticks.

The "duck-mouth" dozer clean mucking face effec- tively thus eliminating the need of manual clean up.

The service brake is hydraulic in Doosan's traveling motor.

Double wings' doors are good for maintaining, also with safety electrical bells and emergency switch.

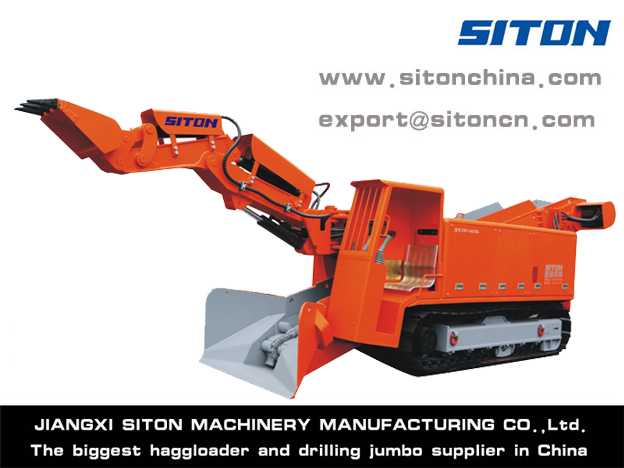

Detailed Drawing:
Duck mouth
Working arm
Cab
Diesel engine
Duck mouth
Working arm
Cab
Diesel engine
Main Overall Dimensions:

Item

LWLX-60/30L

Crawler contacting ground length

2270mm

Crawler inner width

900mm (variable )

Crawler plate width

350/400mm

Ground clearance

280mm (variable )

Max. rock conveying size

488X500mm

Dimensions

during

transport

Length

6750mm

Width

1600mm

Height

1650mm

Dimensions

during

working

Length

7300mm

Width

1600mm

Height

1800mm

Working Range:
LWLX-60 Crawler Muck Loader

Item

LWLX-60/30L

A Digging width

3100mm

B Digging distance (from dozer blade)

1530mm

C Digging height

2300mm

D Digging depth below ground level

500mm

E Dumping height

1400mm (variable )

F Min. dumping height

1350mm (variable )

G Dumping distance

1600mm (variable )

H Max. boom angle

±35。

Adaptive tunnel dimension(Width x Height)

≥2.2x2.2 m

Functional Parameters:
Loading ability

60m3/h

Potencia general

30 kw

Weight

7800kg

Traveling speed

1.1 km/h

Scraper chain

Chaine unique moteur unique

Adaptive tunnel slope

≤30o

Min. turing radius

≥4m

Ground pressure

≤0.1 Mpa

Steering

Hydraulique

Speed of scraper chain

25m/min

Volume of hydraulic tank

135L

Maximum working pressure

22Mpa

Hydraulic pump

Pompe a engrenagex4

Walking hydraulic motor

Moteur a piston radielx2

Conveyor hydraulic motor

Moteur a piston radielx 1
