Compact Shuttle Mining Car
Home » Products » Mining Haulage Equipment » Mining Wagon » Shuttle Mining Car » Compact Shuttle Mining Car

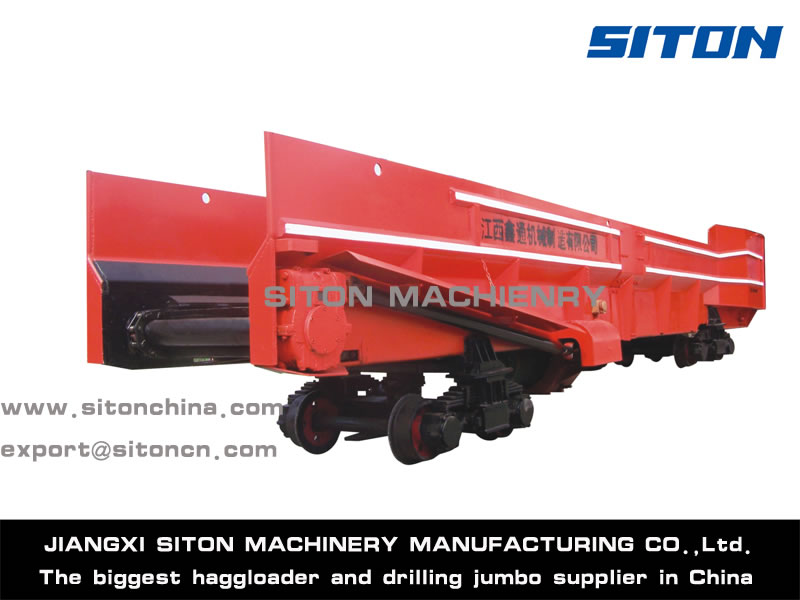

Compact Shuttle Mining Car
Description of Compact Shuttle Mining Car:

Founded in 1992, Siton is a professional manufacturer and supplier of compact Shuttle Mining Car (mining Shuttle Mining Car) in China. The compact Shuttle Mining Car is a kind of mining Shuttle Mining Car specially designed for 2.2×2.2 or 3.2×3.2 tunneling project. It is designed to support the continuous miners and road-headers with high-capacity. This mining Shuttle Mining Car is mainly used to receive, transport and discharge the cut material easily, quickly and efficiently.

With powerful 4-wheel variable-frequency drive, infinitely variable transmission, 4-wheel steering, very short turning radius, 18-metric-ton capacity and quick discharge time, the mining Shuttle Mining Car of compact shape are fast, highly maneuverable and extremely productive partners.

Our products mainly include LHD loader, shutter mining car, road header and drilling jumbo, which are commonly used in mining constructions. All our products have passed the security certificate and the patent certificate of national grade. Besides, our company possesses more than 60% market share. If you need compact Shuttle Mining Car (in general place also refered as mining Shuttle Mining Car), please don't hesitate to contact us.

Technical Parameters:
Model Unit Main Parameters

ST-4

ST-4B

SD-4

SD-4B

ST-6

ST-6B

SD-6

SD-6B

ST-8

ST-8B

SD-8

SD-8B

ST-10

ST-10B

SD-10

SD-10B

Capacity m3 4 4 6 6 8 8 10 10
Loading ability T 10 10 15 15 20 20 25 25
Weight T 6.5 6.5 8.4 8.4 10.5 10.5 11.5 11.5
Track gauge mm

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

600/ 762/ 900

Loading height m 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Unloading time min 1 1 1.2 1.2 1.5 1.5 1.6 1.6
Minimum tuming radius m 8 15 10 18 12 20 14 22
Max. walking speed Km/h 20 15 20 15 20 15 20 15
Electric motor power 660/ 380v kw 11 (YBI) 13 (YBI) 13 (YBI) 18.5 (YBI) 13 (YBI) 18.5 (YBI)
1140/ 660v 22 (YBK2) 22 (YBK2) 22 (YBK2) 22 (YBK2)
Overall dimension (L×W×H) mm 6250× 1280× 1680 6250× 1270× 1740 7014× 1450× 1700 7160× 1450× 1770 9540× 1570× 1700 9600× 1560× 1840 1020× 1560× 1800 1020× 1560× 1950
Steel track Kg/m ≥15 ≥15 ≥18 ≥18 ≥18 ≥18 ≥18 ≥18
Adaptive tunnel dimension (W×H) m2 ≥2.2× 2.2 ≥2.4× 2.4 ≥2.3× 2.3 ≥2.6× 2.6 ≥2.5× 2.5 ≥3× 3 ≥3× 3 ≥3.2× 3.2
