UPS-20J Shotcrete Sprayer
Home » Products » Concrete Sprayer » UPS-20J Shotcrete Sprayer

UPS-20J Shotcrete Sprayer

UPS-20J mining shotcrete sprayer is a concrete wet spraying manipulator specially designed for underground mines. Compared with the traditional manual dry spraying or wet spraying, the equipment is much higher than the traditional manual dry spraying or wet spraying in terms of production efficiency and rebound rate control. Due to the use of high-pressure short-range spraying operation, the spraying quality can be improved to a level, and it is widely used in underground mines or small and medium-sized underground engineering wet spraying support concrete spraying operations. It adopts diesel engine four-wheel drive tire-articulated chassis to move flexibly and quickly, with a grade of <14°, suitable for 3.5~8m roadway size operations. The car itself is equipped with an air compressor and an accelerator adding system.

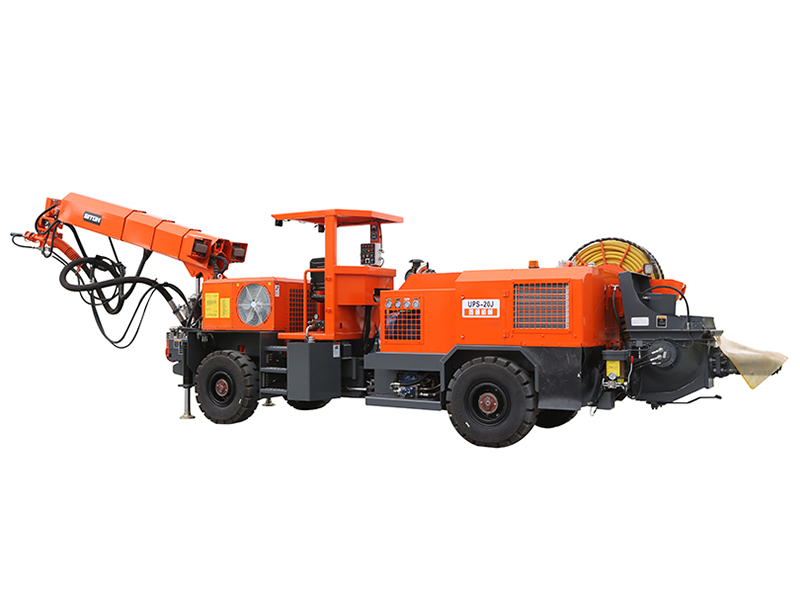

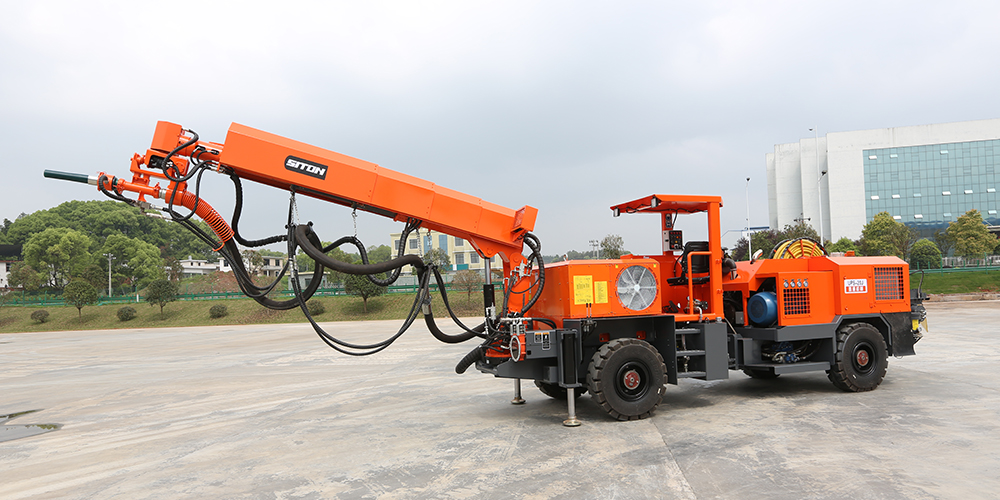

Product Show:

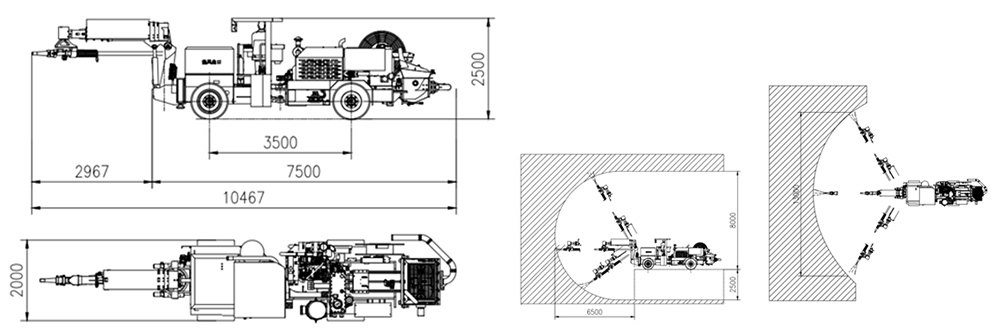

Technical Data:
Complete machineOverall Dimension (L*W*H)mm 10467*2145*2500
Coverage Area (W*H) m (2x6.5)*8
Main Motors kW37/45
Total Weight kg13500
Diesel Power kW59
Carrier Engine ModelYCD4T23T8-80
Max speed Km/h9
Maximum grade≤20°
BoomSpray vertical height m 8
Spray horizontal width m 2x6.5
Boom pitch angle -35~+60°
Nozzle rotation angle 360°
Nozzle brushing angle 240°
Pump systemTheoretical displacement m³/h 20
System pressure Mpa 24
Outlet pressure Mpa ≤7.5
Conveying cylinder inner diameter*stroke mm Φ160×800
Delivery pipe diameter mm Φ50
Electric system Operation methodRemote control
Voltage 380V
Auxiliary systemMaximum output of admixture L/h 500
Admixture system pressure Mpa 0.5
Accelerator tank volume L 200

Machines for underground mining project:

Machines for tunnel project:
