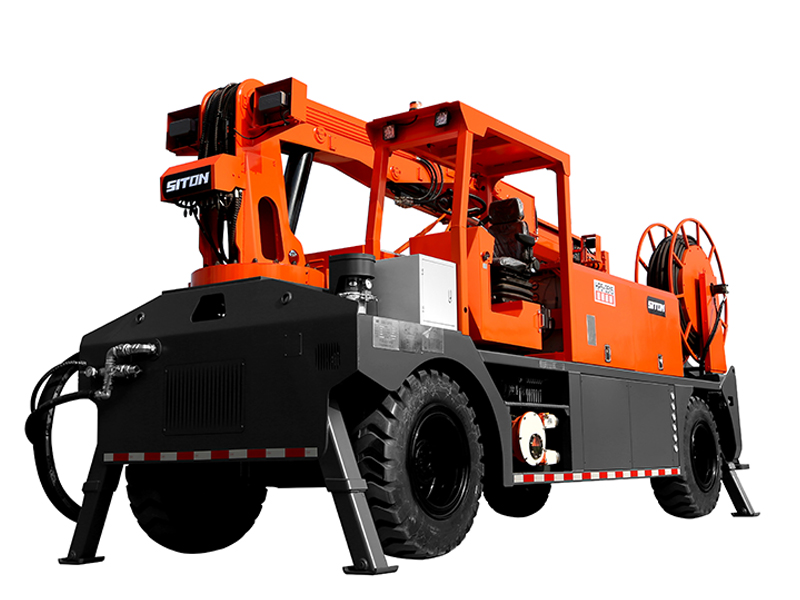

HP5-3515 concrete sprayer is a new generation of engineering bridge concrete wet sprayer developed based on the actual field requirements of sprayer technology at home and abroad. Wet drive axle, which greatly improves the working environment of concrete spraying construction personnel inside the tunnel, improves construction efficiency, reduces concrete consumption, and effectively guarantees construction quality, dual-power working system, lower carbon emissions, and more in line with the concept of environmental protection. It is a better choice for tunnel construction such as water conservancy and hydropower, railway and highway. HP5 wet sprayer has a one-time parallel operation working range of 26m m wide x 15m high roadway, can spray > 35m³ per hour, walks within a 20° slope, can spray top, side, bottom, and face without dead ends Jet; the operating mechanism of the machine adopts full hydraulic drive, diesel power walking, and automatic mass accelerator with high precision.
Item | Date | |

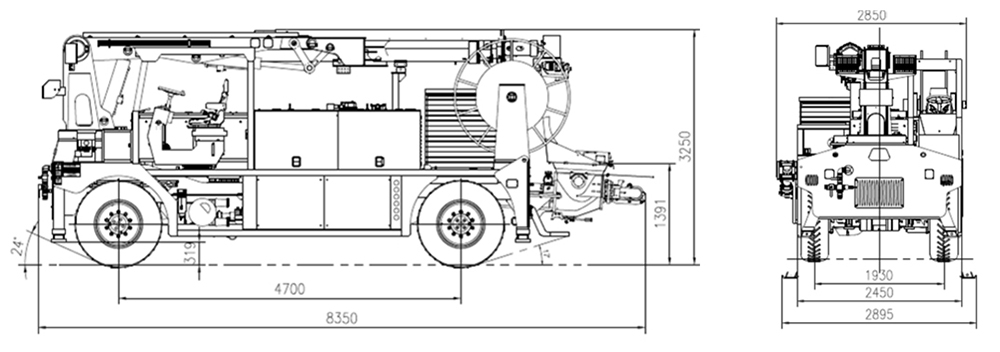

Complete machine | Overall Dimension (L*W*H)mm | 8350*2850*3250 |
Coverage Area (W*H) m | 25*15.8 | |
Main Motors kW | 75 | |
Total Weight kg | 21000 | |
Diesel Power kW | 92 | |
Carrier | Engine Model | WP4.1G125 |
Fuel Tank Volume L | 500 | |
Max speed Km/h | 16 | |
Maximum grade | ≤20° | |
Minimum Ground Clearance mm | 310 | |
Boom | Spray vertical height m | 15.8 |
Spray horizontal width m | 25 | |
Boom pitch angle | 0~70° | |
Forearm pitch angle | 0〜110° | |
Nozzle rotation angle | 270° | |
Nozzle brushing angle | 360° | |
Pump system | Theoretical displacement m³/h | 35 |
System pressure Mpa | 24 | |
Outlet pressure Mpa | ≤7.5 | |
Conveying cylinder inner diameter*stroke mm | Φ180×1000 | |
Delivery pipe diameter mm | Φ125-Φ90 | |
Electric system | Operation method | Remote control |
Voltage | 380V | |
Auxiliary system | Maximum output of admixture L/h | 800 |
Admixture system pressure Mpa | 0.8 | |
Accelerator tank volume L | 1000 |
