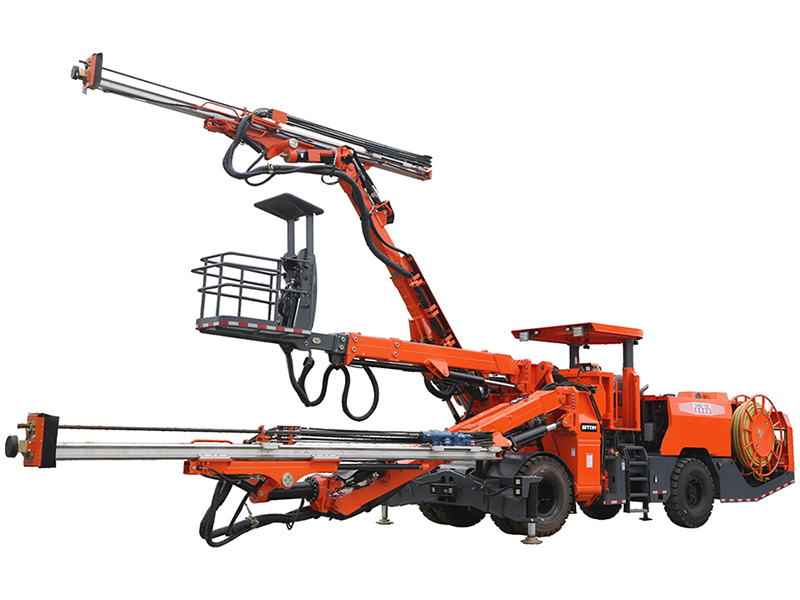

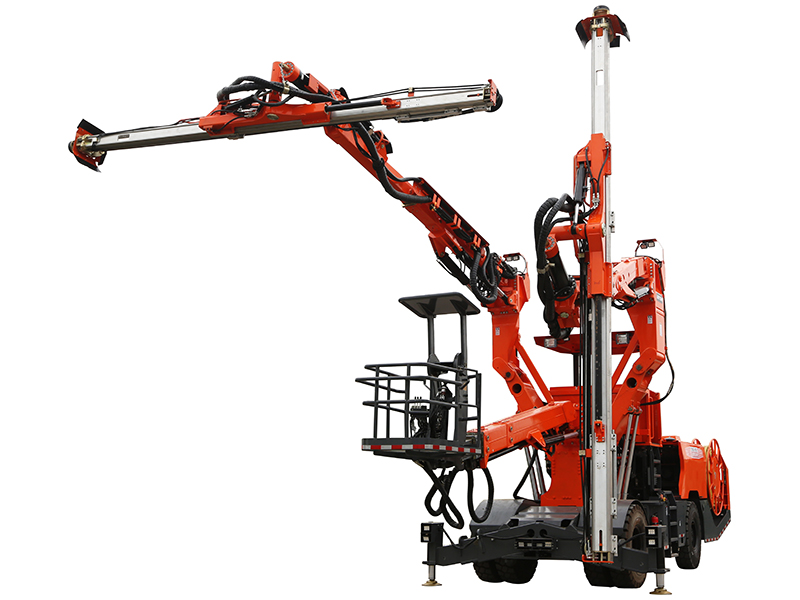

DW2-180 Double Booms Drilling Jumbo
Home » Products » Drilling Jumbo » DW2-180 Double Booms Drilling Jumbo
Description of DW2-180 Double Booms Drilling Jumbo:

DW2-180 Eagle arm full process double booms drilling jumbo is specially designed for multi-step synchronous and full face excavation. The design of lengthened drill boom solves the defect that the traditional drilling jumbo cannot meet the construction needs of all construction methods at the same time.

Technical Parameters:
Item Data

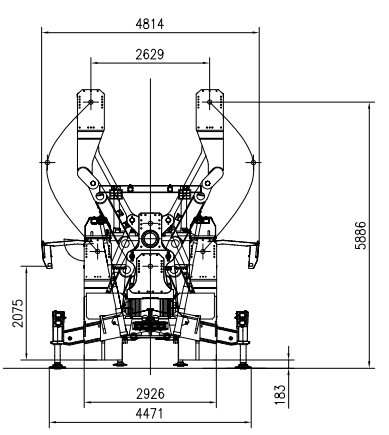

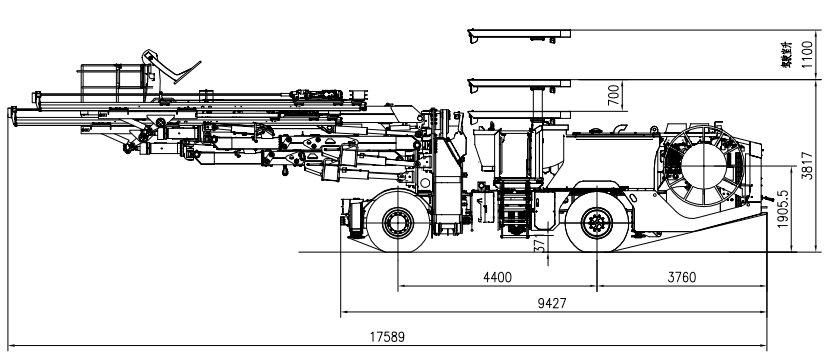

Complete machine Overall Dimension (L*W*H) mm 17589*2926*3117/4917
Coverage Area (W*H) m 15.9X12.6
Hole Diameter mm φ45-64
Drill Steel Length mm 3700 4300 4915 5525
Hole Depth mm 3400 4000 4600 5200
Drill Speed m/min 0.8-2
Main Motors KW 55
Hydraulic Oil Tank, Volume Max L 150
Total Weight kg 45000
Boom Rock Drill WOSERLD 1838ME (Standard) 2238 (Optional)
Feed Roll-over ±180°
Telescopic mm 1800
Feed Extension mm 1800
Carrier Diesel Power KW 194
Articulated Steering ±38°
Tyre Size14.00R24
Rear Axle Swing angle ±7°
Clearance Axles / Outside Axles 21/14
Tramming Speed km/h 12
Ground Clearance mm 370
Service Brakes Parking brake/Emergency stop brake
Fuel Tank Volume L 150
Air system Max Capacity m³/min 0.9
Air Pressure Gauge Mpa 0.8
Water system Max Capacity L/min 85
Water Pressure Gauge Mpa 1.2
Electric system Total Installed Power KW 123
Voltage 380V
