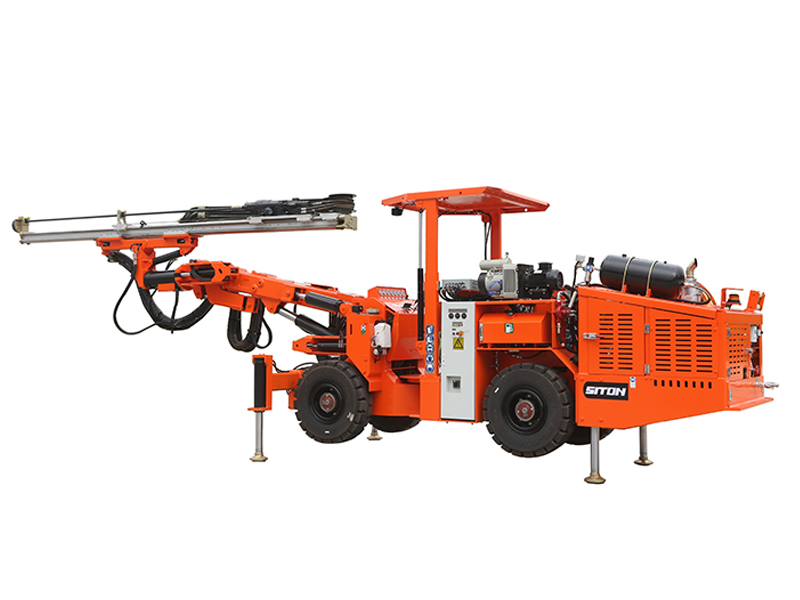

Complete Machine

Item

Standard type

Telescopic type

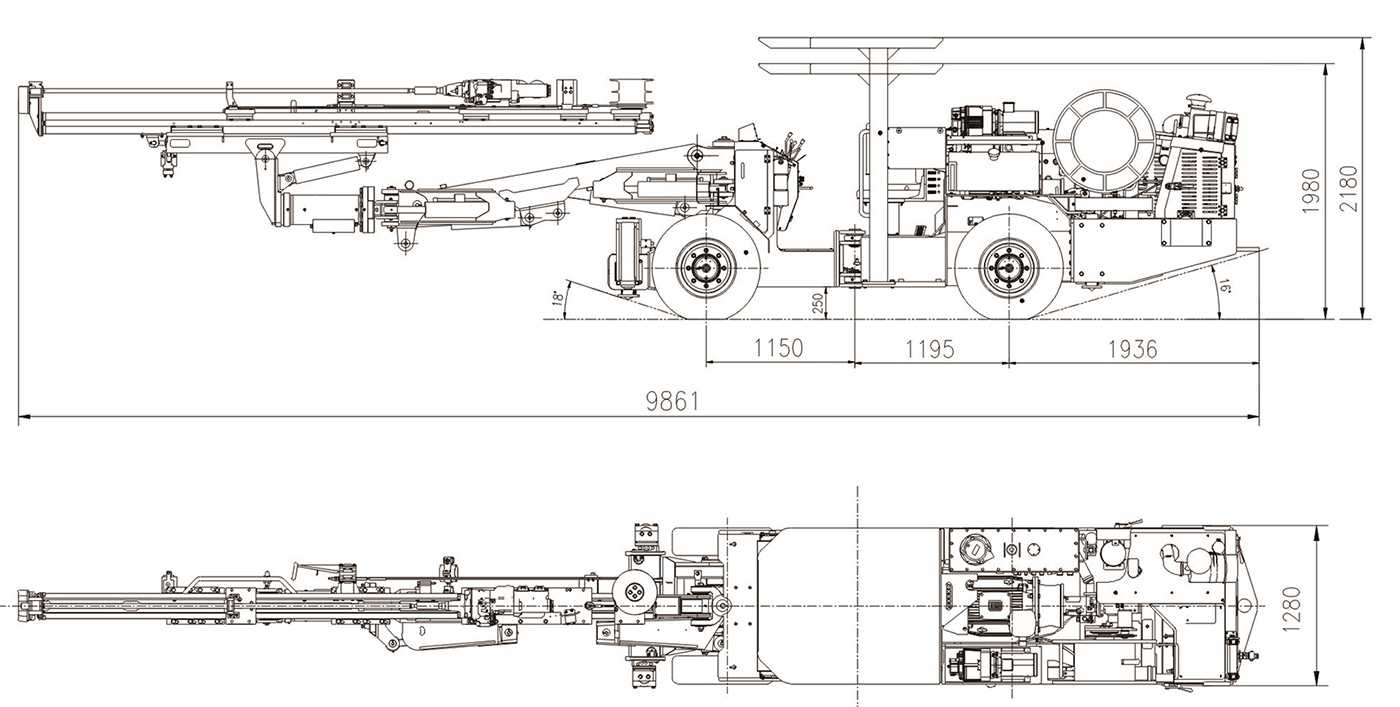

Overall Dimension (L*W*H) mm

9861*1280*1980/2180

8574*1280*1980/2180

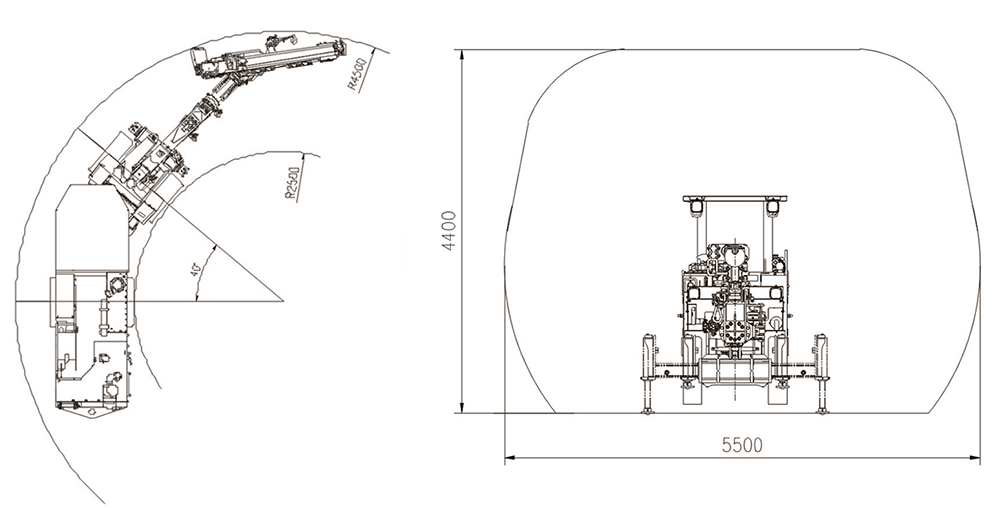

Coverage Area (W*H) m

2.3*2.3-5.5*4.4

2.3*2.3-5.5*4.4

Hole diameter mm

Φ41mm - Φ76mm

Φ41mm - Φ76mm

Drill Steel length nm

3700/3090/2475

3090-(1830/2140/2475)

Hole depth mm

3400/2750/2150

2750-(1540/1850/2150)

Drill speed m/min

0.8-2

0.8-2

Main motors kW

55

55

Hydraulic Oil Tank, Volume Max L

120

120

Total Weight kg

8600

8700

Boom

Rock drill

1838ME/2238(WOSERLD)

Feed Roll-over

360°

Pitching of boom

-20°/+45°

Pitching of feed

90°/3°

compensation mm

1500/800

Carrier

Diesel Engine Power kw

58@2300RPM

Articulated Steering

±40°

Tyre size

8.25R15/300-15

Rear Axle Swing Angle

±6°

Min.Turning Raduis m

Inner>2.5/Outer>4.5

Tramming Speed km/h

10

Climbing ability

≥14°

Ground Clearance mm

250

Fuel Tank Volume L

60

Air system

Max Capacity m³/min

0.3

Air Pressure Gauge Mpa

0.8

Water system

Max Capacity L/min

50

Water Pressure Gauge Mpa

1.0

Electric system

Total Motors kW

59.5 (55+1.5+3)

Voltage V

380/660

Batteries V/Ah

70Ah*2

Tramming Lights W

70W*3

Working Lights W

70W*2
