DTC1-14 Big Slope Drilling Jumbo

Home » Products » Drilling Jumbo » Crawler Drilling Jumbo » Dual Power Drilling Jumbo » DTC1-14 Big Slope Drilling Jumbo

Send Message

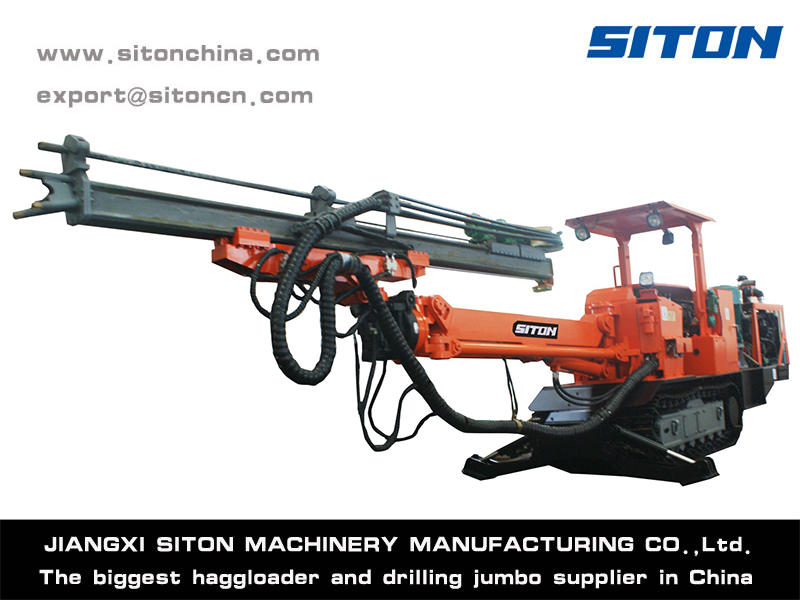

Introduction of DTC1-14 Big Slope Drilling Jumbo:

(1) DT(C) 1-14 Big Slope Drilling Jumbo adopts dual power (diesel and electrical) design, can apply to the excavation drilling in the metal mine, hydropower tunnel and other underground tunnels. It' s Max. coverage area is 5.25 x 4.25 m (W x H) in the tunnel.

(2) The mechanical parallel holding can make sure the hole depth and space between, and improve the quality of blasting.

(3) The hydraulic turbine reducer and rotary actuators set a cross steering knuckle, it can remove all the blind angle of working section.

(4) The standard configuration with imported drifter and rotary actuators, stable performance and high efficiency.

(5) The cable reel can save the labor and improve the safety.

Specifications of DTC1-14 Big Slope Drilling Jumbo:

Item	Unit		DT(C) 1-14
※Boom		※ZB11	※ZB12	※ZB13
Coverage area (WxH)	mm	4300x 3500	4650x 3850	5250x 4250
Drill speed	m/min	0.8-2	0.8-2	0.8-2
Hole diameter	mm	27- 102	27- 102	27- 102
Parallel holding		Standard	Lengthen	Lengthen
※ Propeller model		※TJQ11	※TJQ11	※TJQ13
※ Dirlter		HC25	HYD200	HC25
Hole depth	mm	2700	2700	2100
Feed extension	mm	1550	1550	1400
Total length	mm	4228	4602	3628
Drill steel length	mm	3090	3090	2475
Weight	Kg	9500	9300	9100

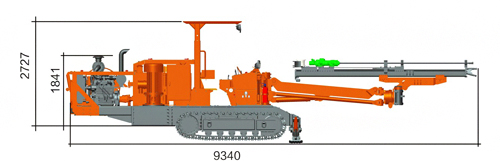

Dimensions(L x W x H)	mm	9340X 1200X 2727	9340X 1200X 2727	9340X 1200X 2727
Traveling speed	m/min	25
Crawler plate width	mm	350
Min. turning radius	m	5
Adaptive tunnel slope	(°)	≤28
Max. Swinging angle	(°)	±32
Max. lifting angle	(°)	45/20
Axial rotation	(°)	±180
Radial direction rotation	(°)	±90
Max. Feed lifting angle	(°)	35/10
Motor power	Kw	37+1.1+1.1
Diesel model		Cummins B3.3-C60
Power / Rotating speed	HP/RPM	48/2200
Diesel power	Kw	60
Emission standard		Tier3
Voltage	V	1140/ 660/ 380
※Cale reel		with/ without
