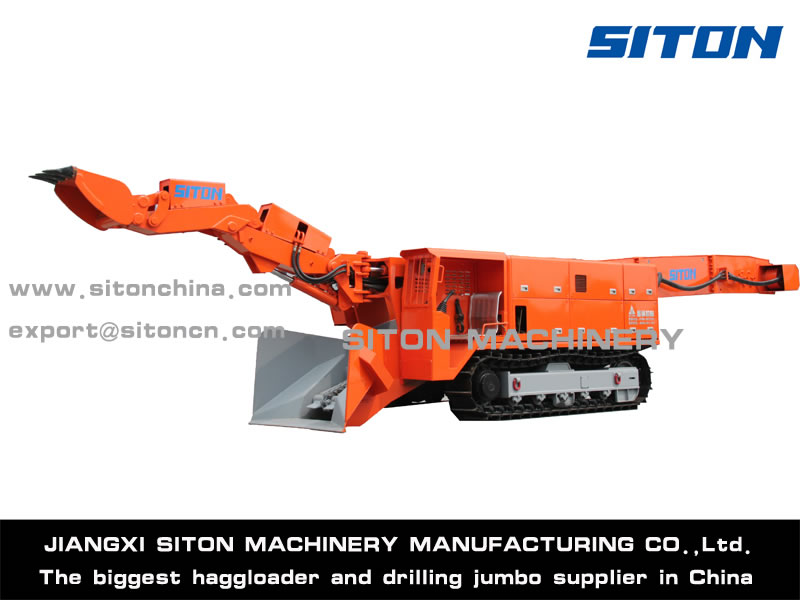

Small-sized Crawler Mucking Loader Series
For Big Slope ≤32°
| Item | LWLX-80/45L | |
| Crawler contacting ground length | 2407mm | |
| Crawler inner width | 941mm(variable) | |
| Crawler plate width | 350/450mm | |
| Ground clearance | 310mm(variable) | |
| Conveyor inner width | 580*710mm | |
| Dimensions during transport | Length | 7710mm |
| Width | 1690mm | |
| Height | 1990mm | |
| Dimensions during operating | Length | 9222mm |
| Width | 1690mm | |
| Height | 2247mm | |
| Item | LWLX-80/45L |
| Digging width | 4800mm |
| Digging distance(from dozer blade) | 1820mm |
| Digging height | 2470mm |
| Digging depth below ground level | 480mm |
| Dumping height | 1646mm(Variable) |
| Minimum dumpling height | 1470mm(Variable) |
| Dumping distance | 1600mm(Variable) |
| Max.boom angle | ±55° |
| Adaptive tunnel dimension (Width×Height) | ≥2.4×2.4m |
| Loading ability | 80m³/h |
| Potencia general | 45kw |
| Weight | 11860kg |
| Traveling speed | 0.9±1.8%m/s |
| Scraper chain | Single chain single motor |
| Adaptive tunnel slope | ≤32° |
| Minumum turing radius | ≥5m |
| Ground pressure | ≤0.1Mpa |
| Steering | Hydraulic |
| Speed of scraper chain | 40m/min |
| Volume of hydraulic tank | 220L |
| Maximum working pressure | 32Mpa |
| Hydraulic pump | Plunger pump×2+gear pump×2 |
| Walking hydraulic motor | Radial plunger motor×2 |
| Conveyor hydraulic motor | Radial plunger motor×1 |
Diesel engine available on request.
On site mucking loader with side dumping wagon
FAQ:
1.Will necessary spare parts be offered in time?
Normally we suggest customers to buy spare parts for at least 2 years of operation once they buy a new equipment. We will also deliver enough spare parts to our distributor in some countries.
2.How to solve the unusual faults during operation?
SITON will give prompt reply on how to repair the equipments within 24 hours once we receive the fault report. We can also send engineers to the site if necessary.
3.Does SITON offer training for operating and maintenance?
Customers can send their engineers to SITON for one week training and necessary accommodation will be offered free of charge. We will send engineers to the site for technical support if customers requires.
