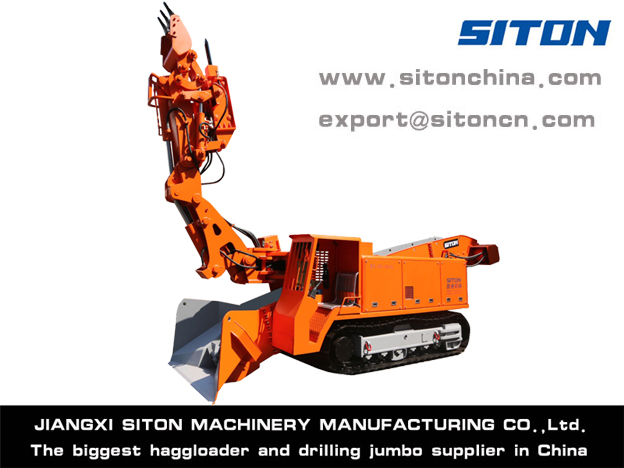

Item

LWLX- 100/45L

Crawler contacting ground length

2560mm

Crawler inner width

1100mm ( variable )

Crawler plate width

350mm

Ground clearance

350mm (variable )

Max. rock conveying size

580X 710mm

Dimensions during transport

Length

7760mm

Width

1800mm

Height

1866mm

Dimensions during working

Length

8990mm

Width

1800mm

Height

2180mm

Item

LWLX- 100/45L

A Digging width

6400mm

B Digging distance (from dozer blade)

2580mm

C Digging height

5500mm

D Digging depth below ground level

1200mm

E Dumping height

1570mm ( variable )

F Min. dumping height

1324mm ( variable )

G Dumping distance

1486mm (variable )

H Max. boom angle

±55°

Adaptive tunnel dimension (Width x Height)

^2.7x2.7m

Item

TT068 Broken Hammer

Weight

210kg

Working pressure

11 MPa

Attack speed

450-750BPM

Dia. of rod

68mm

Dimensions

Length

1373mm

Width

241 mm

Loading ability

100m3/h

Potencia general

45 kw

Weight

13500kg

Traveling speed

0.9km/h 1.8km/h

Scraper chain

Double chains double motors

Single chain single motor

Adaptive tunnel slope

彡20

Min. turning radius

>5m

Ground pressure

^0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

40m/min

Volume of hydraulic tank

240L

Max. working pressure

32Mpa

Hydraulic pump

Plunger pumpx2

Gear pump x 1

Traveling hydraulic motor

Radial plunger motorx 2

Conveyor hydraulic motor

Radial plunger motorx2
