LWLX-150 Narrow Size Mucking Loader

Home » Products » Mucking loader » Crawler Mucking Loader » Special Models Crawler Mucking Loader » Narrow Size Mucking Loader » LWLX-150 Narrow Size Mucking Loader

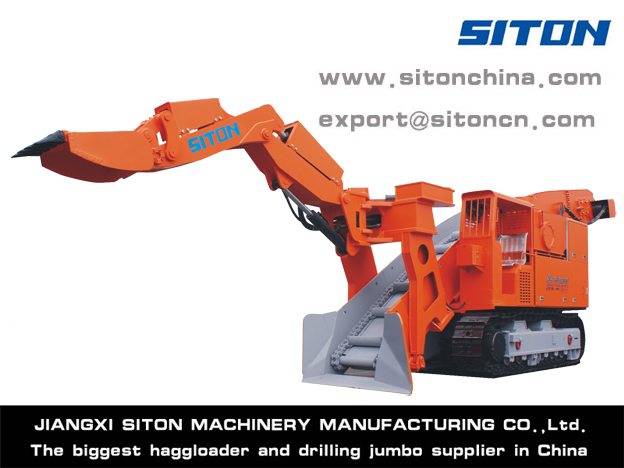

LWLX-150 Narrow Size Mucking Loader

Main Overall Dimension:

Item		LWLX- 150/55L
Crawler contacting ground length		2560mm
Crawler inner width		600mm
Crawler plate width		400mm
Ground clearance		330mm (variable )
Max. rock conveying size		780X810mm
Dimensions during transport	Length	8500mm
	Width	1550mm
	Height	2600mm
Dimensions during working	Length	10300mm
	Width	1550mm
	Height	3350mm

Working Range:

LWLX-150 Narrow Size Mucking Loader

Item	LWLX- 150/55L
A Digging width	5500mm
B Digging distance (from dozer blade)	2354mm
C Digging height	3350mm
D Digging depth below ground level	570mm
E Dumping height	2300mm (variable )
F Min. dumping height	1900mm ( variable )
G Dumping distance	1600mm ( variable )
H Max. boom angle	±55°
Adaptive tunnel dimension (Width x Height)	≥3.5x3.3m (Single boom drilling jumbo ) ≥3.8x3.5m (Double booms drilling jumbo)

Functional Parameters:

Loading ability	150m3/h
Potencia general	55 kw
Weight	12800kg
Traveling speed	0.9km/h 1.8km/h
Scraper chain	Double chains double motors Single chain double motors
Adaptive tunnel slope	≤32°
Min. turning radius	≥7m
Ground pressure	≤0.068Mpa
Steering	Hydraulic
Speed of scarper chain	39m/min
Volume of hydraulic tank	260L
Max. working pressure	32Mpa
Hydraulic pump	Plunger pumpx2 Gear pump+ ×1
Traveling hydraulic motor	Radial plunger motor x2
Conveyor hydraulic motor	Radial plunger motor x1
