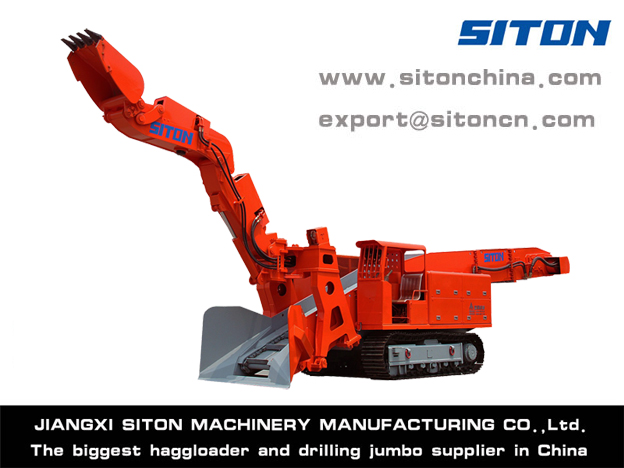

LWL-150 Haggloader

Crawler Mucking Loader for Level Surface

For Level Surface ≤15°

Main Overall Dimension:

Item		LWL- 150/ 55L
Crawler contacting ground length		2159mm
Crawler inner width		1130mm (Variable)
Crawler plate width		450/ 550mm
Ground cl6&r&nc		395mm (Variable)
Max. rock conveying size		780X 820mm
Dimensions during transport	Length	9200mm
	Width	2100mm
	Height	2390mm
Dimensions during working	Length	10880mm
	Width	2100mm
	Height	2514mm

Working Range:

Item	LWL- 150/ 55L
A Digging width	6700mm
B Diqqinq distance (from dozer blade)	3100mm
C Digging height	3450mm
D Digging depth below ground level	900mm
E Dumping height	1913mm (variable )
F Min. dumping height	1680mm (variable )
G Dumpinq distance	1992mm ( variable )
H Max. boom angle	±55°
Adaptive tunnel dimension (Width x Height)	3.4x 3.4m

Functional Parameters:

Loading ability	150m3/h
Potencia general	55 kw
Weight	18100kg
Traveling speed	2.0km/h
Scraper chain	Double chains double motors single chain double motors
Adaptive tunnel slope	≤15°
Min. turning radius	≥7m
Ground pressure	≤0.1 Mpa
Steering	Hydraulic
Speed of scarper chain	44m/min
Volume of hydraulic tank	400L
Max. working pressure	28Mpa
Hydraulic pump	Plunger pumpx2 Gear pump x 1
Traveling hydraulic motor	Radial plunger motorx2
Conveyor hydraulic motor	Radial plunger motor x 2
