Item

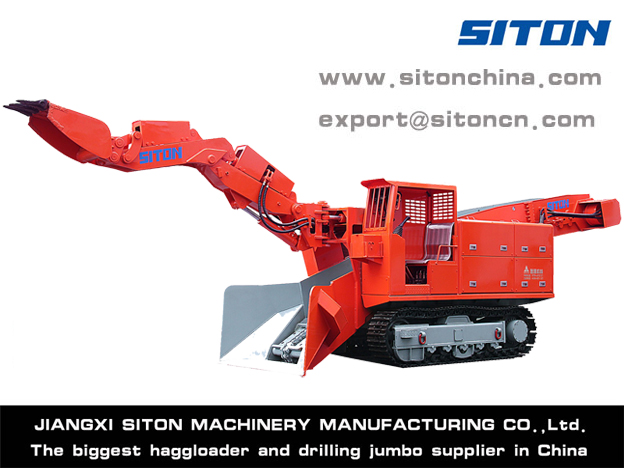

LWL- 100/ 45L

Crawler contacting ground length

1945mm

Crawler inner width

1000mm (variable )

Crawler plate width

350/ 400mm

Ground cloarancG

330mm (variable )

Max. rock conveying size

620X 580mm

Dimensions during transport

Length

6750mm

Width

1800mm

Height

2210mm

Dimesions during working

Length

7920mm

Width

1800mm

Height

2410mm

Item

LWL-100/45L

A Digging width

5300mm

B Diqqinq distance (from dozer blade)

1970mm

C Digging height

2940mm

D Digging depth below ground level

540mm

E Dumping height

1670mm (variable )

F Min. dumping height

1425mm (variable )

G Dumping distance

1700mm (variable )

H Max. boom angle

±55°

Adaptive tunnel dimension (Width x Height)

2.6x 2.6m

Loading ability

100m3 /h

Potencia general

45 kw

Weight

12400kg

Traveling speed

0.9km/h

Scraper chain

Single chain single motor

Adaptive tunnel slope

≤15°

Min. turning radius

≥5m

Ground pressure

≤0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

34m/min

Volume of hydraulic tank

220L

Max. working pressure

28Mpa

Hydraulic pump

Plunger pumpx2 Gear pump x 1

Traveling hydraulic motor

Radial plunger motor x2

Conveyor hydraulic motor

Radial plunger motor x1
