Item

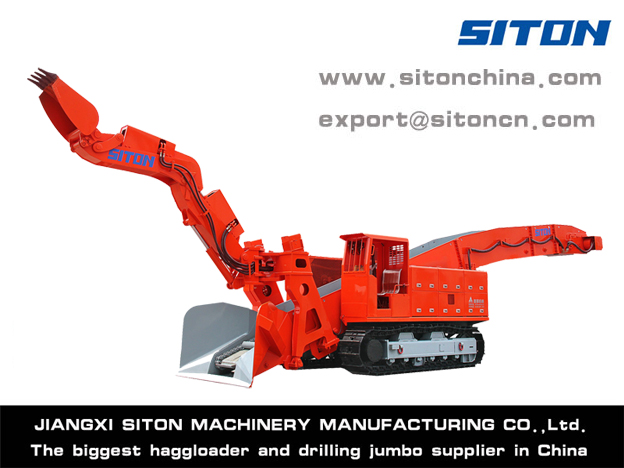

LWLX-220/75L

Crawler contacting ground length

3160mm

Crawler inner width

1400mm (variable )

Crawler plate width

500/600mm

Ground clearance

420mm (variable )

Max. rock conveying size

820X990mm

Dimonsio during ransport

Length

14900mm

Width

2450mm

Height

2700mm

Dimonsio during

working

Length

15300mm

Width

2450mm

Height

3700mm

Item

LWLX-220/75L

A Digging width

8550mm

B Digging distance (from dozer blade)

3200mm

C Digging height

4950mm

D Digging depth below ground level

1120mm

E Dumping height

2750mm (variable )

F Min. dumping height

2100mm ( variable )

G Dumping distance

5500mm (variable )

H Max. boom angle

±55°

Adaptive tunnel dimension (Width x Height)

≥4x4 m

Loading ability

220m3/h

Potencia general

75/90 kw

Weight

23800kg

Traveling speed

2.0km/h

Scraper chain

Double chains double motors single chain double motors

Adaptive tunnel slope

≥32°

Min. turning radius

^9m

Ground pressure

^0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

44m/min

Volume of hydraulic tank

420L

Max. working pressure

32Mpa

Hydraulic pump

Plunger pumpx2 Gear pump x 1

Traveling hydraulic motor

Radial plunger motorx2

Conveyor hydraulic motor

Radial plunger motorx2
