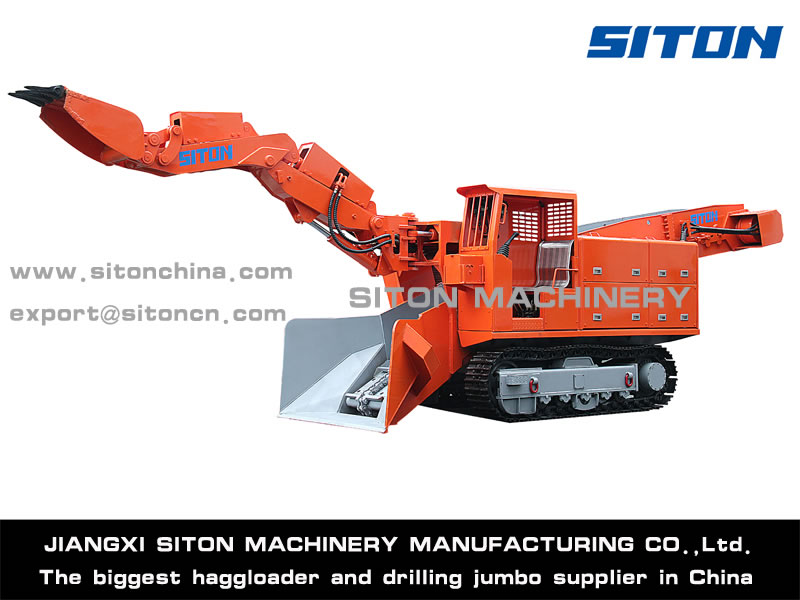

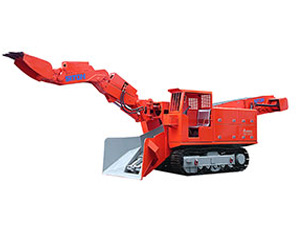

The mucking loader is mainly used in coal mines, metal mines, hydropower tunnels and other underground projects. The company has developed different kinds of loaders many times and updated them to adapt to different working conditions including section from
2.0 x 2.0 m to 9 x 9 m (Height x Width), slope within 15°.
1. The mucking loader adopts Electrohydraulic control system with reduced-voltage start Suitable for long tunnel projects.
2. Main movements controlled by pilot valves,Easily operated and stable.
3. 30% of the configurations are imported. Oil will be Multistep filtered. with air cooling radiator.
4. Load rocks completely without labor work.
5. Convey rocks with chain -scraper, stable and high efficiency.
6. Semi-enclosed assembling, easy to maintain.
| Item | LWL-80/45L | |
| Crawler contacting ground length | 1945mm | |
| Crawler inner width | 1100mm(Variable) | |
| Crawler plate width | 350/400mm | |
| Ground clearance | 330mm(Variable) | |
| Conveyor inner width | 620*580mm | |
| Dimensions during transport | Length | 6750mm |
| Width | 1800mm | |
| Height | 2210mm | |
| Dimensions during operating | Length | 7920mm |
| Width | 11800mm | |
| Height | 2410mm | |
| Item | LWL-80/45L |
| Digging width | 4800mm |
| Digging distance(from dozer blade) | 1820mm |
| Digging height | 2470mm |
| Digging depth below ground level | 480mm |
| Dumping height | 1646mm(Variable) |
| Minimum dumpling height | 1470mm(Variable) |
| Dumping distance | 1600mm(Variable) |
| Max. boom angle | ±55° |
| Adaptive tunnel dimension (Width×Height) |
≥2.6×2.6m |
| Loading ability | 80m³/h |
| Potencia general | 45kw |
| Weight | 10800kg |
| Traveling speed | 0.9Km/h |
| Scraper chain | Single chain single motor |
| Adaptive tunnel slope | ≤15° |
| Min.turing radius | ≥5m |
| Ground pressure | ≤0.1Mpa |
| Steering | Hydraulic |
| Speed of scraper chain | 34m/min |
| Volume of hydraulic tank | 220L |
| Maximum working pressure | 28Mpa |
| Hydraulic pump | Plunger pump×2+Gear pump×1 |
| Walking hydraulic motor | Radial plunger motor×2 |
| Conveyor hydraulic motor | Radial plunger motor×1 |

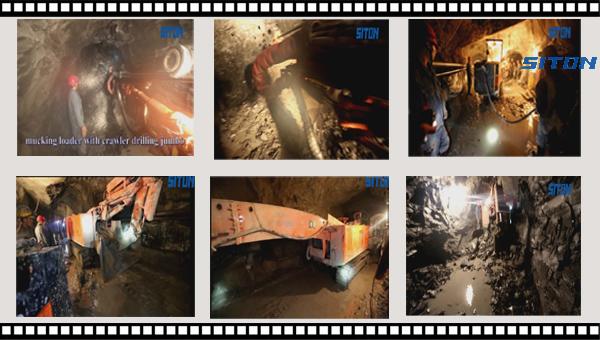

On site mucking loader with Drilling jumbo
