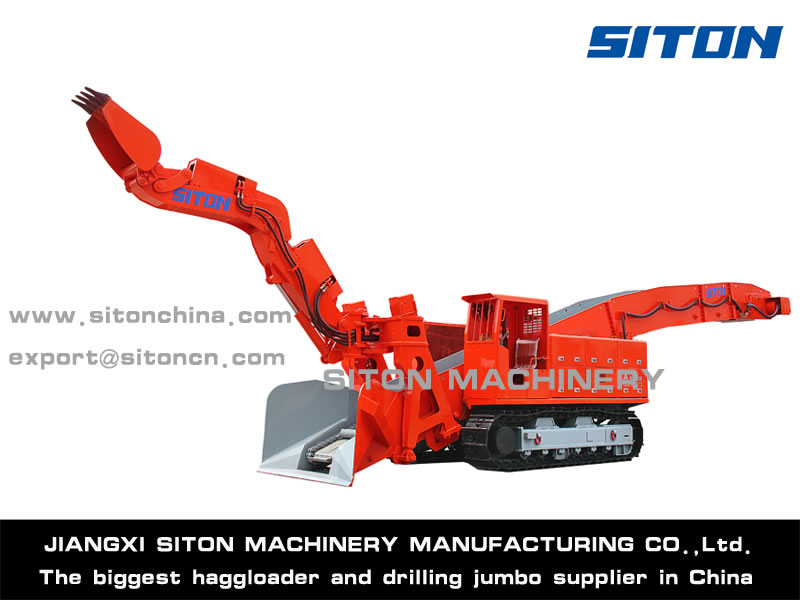

Siton Muck Loader LWLX-180

Home » Products » Mucking loader » Crawler Mucking Loader » Siton Muck Loader LWLX-180

Send Message

Range Of Application:

The mucking loader is mainly used in coal mines, metal mines, hydropower tunnels and other underground projects. The company has developed different kinds of loaders many times and updated them to adapt to different working conditions including section from
2.0 x 2.0 m to 9 x 9 m (Height x Width), slope within 32°.

Main Characteristics of Siton Muck Loader LWLX-180:

1. The mucking loader adopts Electrohydraulic control system with reduced-voltage start Suitable for long tunnel projects.

2. Main movements controlled by pilot valves, Easily operated and stable.

3. 30% of the configurations are imported. Oil will be Multistep filtered. with air cooling radiator.

4. Load rocks completely without labor work.

5. Convey rocks with chain -scraper,stable and high efficiency.

6. Semi-enclosed assembling, easy to maintain.

Main Overall Dimensions:

Item		LWLX- 180/ 75L
Crawler contacting ground length		2827mm
Crawler inner width		1350mm (Variable)
Crawler plate width		500/ 600mm
Ground clearance		380mm (Variable)
Conveyor inner width		780* 970mm
Dimensions during transport	Length	13088mm
	Width	2350mm
	Height	2500mm
Dimensions during operating	Length	14500mm
	Width	2350mm
	Height	3500mm

Working Range:

Item		LWLX- 180/ 75L
Digging width	7030mm
Digging distance (from dozer blade)	3000mm
Digging height	4635mm
Digging depth below ground level	990mm
Dumping height	2693mm (Variable)
Minimum dumpling height	1970mm (Variable)
Dumping distance	5123mm (Variable)
Max. boom angle	±55°
Adaptive tunnel dimension (Width× Height)	≥3.8× 3.8m

Functional Parameters:

Loading ability	180m³/h
Potencia general	75kw
Weight	21500 kg
Traveling speed	2.0%km/s
Scraper chain	Double chains double motors/ Single chain double motors
Adaptive tunnel slope	≤32°
Min. turing radius	≥8m
Ground pressure	≤0.1Mpa
Steering	Hydraulic
Speed of scraper chain	44 m/min
Volume of hydraulic tank	400L
Maximum working pressure	32Mpa
Hydraulic pump	Plunger pump×2 +gear pump×2
Walking hydraulic motor	Radial plunger motor×2
Conveyor hydraulic motor	Radial plunger motor×2

Diesel engine available on request.

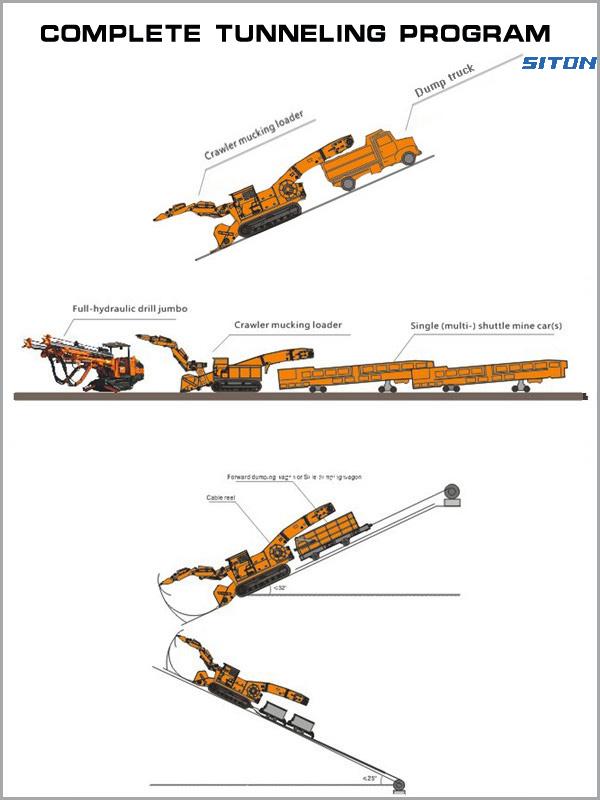

On site mucking loader with side dumping wagon
