Item

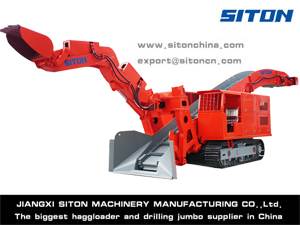

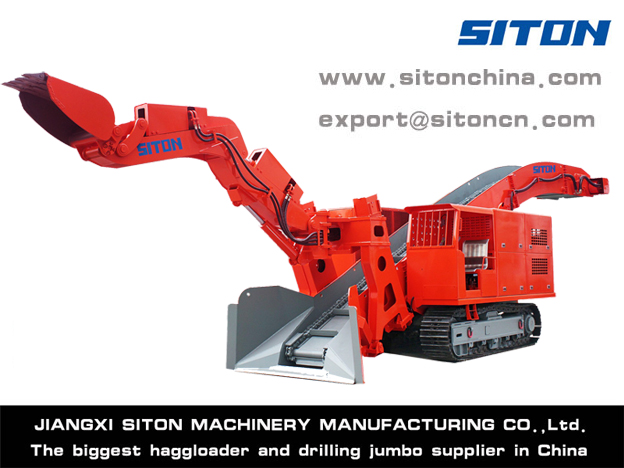

LWLX (C)- 120

Crawler contacting ground length

2560mm

Crawler inner width

1000mm (variable )

Crawler plate width

500mm

Ground clearance

350mm (variable )

Max. rock conveying size

620X710mm

Dimensions during transport

Length

9200mm

Width

2290mm

Height

2350mm

Dimensions during working

Length

10385mm

Width

2290mm

Height

2680mm

Item

LWLX (C)- 120

A Digging width

5900mm

B Digging distance (from dozer blade)

2370mm

C Digging height

3390mm

D Digging depth below ground level

600mm

E Dumping height

2100mm (variable )

F Min. dumping height

1706mm (variable )

G Dumping distance

3300mm (variable )

H Max. boom angle

±55°

Adaptive tunnel dimension (Width x Height)

≥3.0x3.0 m

Loading ability

120m3/h

Potencia general

55 kw

Weight

14600kg

Traveling speed

1.8km/h

Scraper chain

Double chains double motors

Single chain single motor

Adaptive tunnel slope

≤32° ( Electrical ) ≤1 5° ( Diesel )

Min. turning radius

≥ 6m

Ground pressure

≤0.1 Mpa

Steering

Hydraulic

Speed of scarper chain

34m/min

Volume of hydraulic tank

260L

Max. working pressure

28Mpa

Hydraulic pump

Plunger pumpx2 Gear pumpx2

Traveling hydraulic motor

Radial plunger motorx2

Conveyor hydraulic motor

Radial plunger motorx2

Type

Cummins B 3.3-80

Aspiration

Turbocharged

Rated power/ RPM

80/ 2200 (HP/ RPM)

Max. torque/ RPM

291/ 1600 (N • m/ RPM)

Displacement

Tier3

Weight

245 Kg
